EATON TRIPP LITE SERIES CONNECTIVIT
USB-C FIBER AOC USB 3.2 GEN 2 10GBPS 8K 60W CHARGING M/M BLACK 15
SKU: YS5428VPN: U420F-15M
USB-C FIBER AOC USB 3.2 GEN 2 10GBPS 8K 60W CHARGING M/M BLACK 15
Key Features
- All-in-one USB-C fiber optic cable supports 10 Gbps data transfer, 8K video and 40W PD charging for your IT or Pro AV application
- Supports USB 3.2 Gen 2 speeds up to 10 Gbps to ensure lightning-fast data transfers
- Provides 40W power output for charging, syncing and powering the host device
- Supports 8K @ 30 Hz or 4K @ 144 Hz for high-resolution gaming or video editing
- Compatible with all USB-C, Thunderbolt 3 and Thunderbolt 4 computer ports
- Fiber optic construction ideal for long-distance connections not supported by copper
- 3-year limited warranty
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview

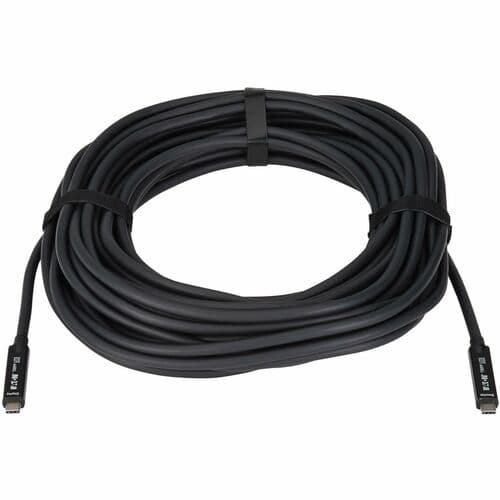

USB-C Fiber Optic Cable Combines Data Transfer and 8K/4K Video
This full-function active optical cable (M/M) securely connects the USB-C, Thunderbolt 3 or Thunderbolt 4 port on your desktop, laptop or notebook computer to a USB-C data or audio/video device, such as a storage device, media server or surveillance camera, located up to 15 meters (49 feet) away. It is ideal for high-end video conferencing, USB camera placement, 3D printers or high-resolution Pro AV devices, such as touchscreen displays, digital signage or travel displays that can be powered via USB-C PD charging.
Supports USB-C DisplayPort Alternate Mode for Converting Audio/Video Signals
By connecting the USB-C end to a source device that supports USB DisplayPort Alt Mode, you can output 8K/4K video and digital audio to a USB-C monitor, television or projector without installing special software drivers.
Transmits 8K and 4K Video with HDR and 4:4:4 Color
The U420F-15M supports Ultra HD 8K resolutions up to 7680 x 4320 at 60 Hz and 4K resolutions up to 3840 x 2160 at 144 Hz with 30-bit Deep Color. It also supports HDR (High Dynamic Range), providing a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your display. HDCP 2.2 encryption allows you to stream 4K content with no loss in resolution. This cable also supports uncompressed 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.
Transfers Data and Powers Devices for Innovative Workspace Applications
The full-function U420F-15M connects your MacBook Pro, Windows laptop or other USB-C device to the USB-C port on Logitech or Poly video conferencing cameras, touchscreen displays and smartboards. It supports USB 3.2 Gen 2 data transfer rates up to 10 Gbps. It also provides power output up to 20V 2A (40W), which is enough to power most laptops, as well as connected equipment or travel displays. The plug-and-play cable is compatible with Thunderbolt 3 and Thunderbolt 4 devices, as well as USB-C.
Tech Specs
| Features | Consumer Electronics Control (CEC) |
|---|---|
| Brand Name | Tripp Lite series |
| Cable Type | Fiber Optic |
| Jacket Type | VW-1 |
| Cable Length | 49.21 ft |
| Color Family | Black |
| Jacket Color | Black |
| Manufacturer | Eaton Corporation |
| Product Name | U420F-15M USB-C to USB-C Fiber Active Optical Cable, M/M, Black, 15 m (49 ft.) |
| Product Type | Data Transfer Cable |
| Product Color | Black |
| Connector Color | Black |
Show all 30 specsShow fewer
| Contact Plating | Gold |
|---|---|
| Jacket Material | Thermoplastic Elastomer (TPE) |
| Device Supported | Computer |
| Product Material | Thermoplastic Elastomer (TPE) |
| Application/Usage | Gaming |
| Connector Plating | Gold |
| Data Transfer Rate | 10 Gbit/s |
| American Wire Gauge | 21/24/28 AWG |
| Supported Resolution | 7680 x 2160 |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Manufacturer Part Number | U420F-15M |
| Connector Type on First End | USB 3.2 (Gen 2) Type C - Male |
| Connector Type on Second End | USB 3.2 (Gen 2) Type C - Male |
| Manufacturer Website Address | http://www.eaton.com |
| Connector Gender on First End | Male |
| Connector Gender on Second End | Male |
| Connector on First End Details | 1 x USB 3.2 (Gen 2) Type C - Male |
| Connector on Second End Details | 1 x USB 3.2 (Gen 2) Type C - Male |
