EATON TRIPP LITE SERIES CONNECTIVIT

USB-C FIBER AOC USB 3.2 GEN 2 10GBPS 8K 60W CHARGING M/M BLACK 10

SKU: YS5510VPN: U420F-10M

USB-C FIBER AOC USB 3.2 GEN 2 10GBPS 8K 60W CHARGING M/M BLACK 10

Key Features

  • All-in-one USB-C fiber optic cable supports 10 Gbps data transfer, 8K video and 60W PD Charging for your IT or Pro AV application
  • Supports USB 3.2 Gen 2 speeds up to 10 Gbps to ensure lightning-fast data transfers
  • Provides 60W power output for charging, syncing and powering the host device
  • Supports 8K @ 30 Hz or 4K @ 144 Hz for high-resolution gaming or video editing
  • Compatible with all USB-C, Thunderbolt 3 and Thunderbolt 4 computer ports
  • Fiber optic construction ideal for long-distance connections not supported by copper
  • 3-year limited warranty
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

USB-C Fiber Optic Cable Combines Data Transfer and 8K/4K Video

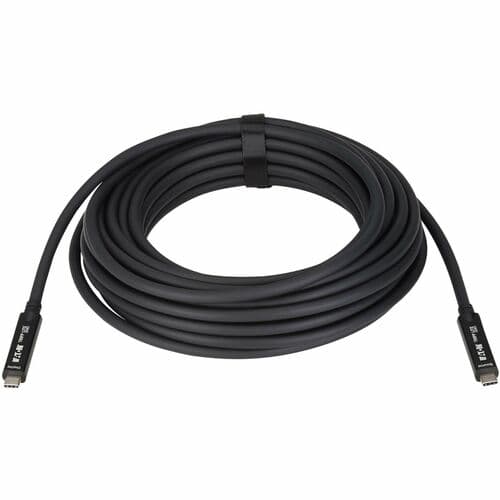

This full-function active optical cable (M/M) securely connects the USB-C, Thunderbolt 3 or Thunderbolt 4 port on your desktop, laptop or notebook computer to a USB-C data or audio/video device, such as a storage device, media server or surveillance camera, located up to 10 meters (33 feet) away. It is ideal for high-end video conferencing, USB camera placement, 3D printers or high-resolution Pro AV devices, such as touchscreen displays, digital signage or travel displays that can be powered via USB-C PD charging.

Supports USB-C DisplayPort Alternate Mode for Converting Audio/Video Signals

By connecting the USB-C end to a source device that supports USB DisplayPort Alt Mode, you can output 8K/4K video and digital audio to a USB-C monitor, television or projector without installing special software drivers.

Transmits 8K and 4K Video with HDR and 4:4:4 Color

The U420F-10M supports Ultra HD 8K resolutions up to 7680 x 4320 at 60 Hz and 4K resolutions up to 3840 x 2160 at 144 Hz with 30-bit Deep Color. It also supports HDR (High Dynamic Range), providing a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your display. HDCP 2.2 encryption allows you to stream 4K content with no loss in resolution. This cable also supports uncompressed 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.

Transfers Data and Powers Devices for Innovative Workspace Applications

The full-function U420F-10M connects your MacBook Pro, Windows laptop or other USB-C device to the USB-C port on Logitech or Poly video conferencing cameras, touchscreen displays and smartboards. It supports USB 3.2 Gen 2 data transfer rates up to 10 Gbps. It also provides power output up to 20V 3A (60W), which is enough to power most laptops, as well as connected equipment or travel displays. The plug-and-play cable is compatible with Thunderbolt 3 and Thunderbolt 4 devices, as well as USB-C.


Tech Specs

USB-C FIBER AOC USB 3.2 GEN 2 10GBPS 8K 60W CHARGING M/M BLACK 10 specifications
FeaturesUSB- Power Delivery (USB PD)
Brand NameTripp Lite series
Cable TypeFiber Optic
Jacket TypeVW-1
Cable Length32.81 ft
Color FamilyBlack
Jacket ColorBlack
ManufacturerEaton Corporation
Product NameU420F-10M USB-C to USB-C Fiber Active Optical Cable, M/M, Black, 10 m (33 ft.)
Product TypeData Transfer Cable
Product ColorBlack
Connector ColorBlack
Show all 30 specs
Contact PlatingGold
Jacket MaterialThermoplastic Elastomer (TPE)
Device SupportedStorage Device
Product MaterialThermoplastic Elastomer (TPE)
Application/UsageGaming
Connector PlatingGold
Data Transfer Rate10 Gbit/s
American Wire Gauge21/24/28 AWG
Supported Resolution7680 x 2160
Environmental ComplianceWaste Electrical and Electronic Equipment Directive (WEEE)
Manufacturer Part NumberU420F-10M
Connector Type on First EndUSB 3.2 (Gen 2) Type C - Male
Connector Type on Second EndUSB 3.2 (Gen 2) Type C - Male
Manufacturer Website Addresshttp://www.eaton.com
Connector Gender on First EndMale
Connector Gender on Second EndMale
Connector on First End Details1 x USB 3.2 (Gen 2) Type C - Male
Connector on Second End Details1 x USB 3.2 (Gen 2) Type C - Male
