U.3 TO PCIE ADAPTER CARD - PCI EXPRESS 4.0 U.3 NVME SSDS

SKU: HF4118VPN: PEX4SFF8639U3

In Stock

$46.34

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

ADD HIGH PERFORMANCE U.3 STORAGE: Add a 2.5 inch U.3 NVMe SSD into a PCIe 4.0 x4/x8/x16 slot in a desktop or server, enabling ultra-fast data access; Supports SFF-TA-1001 drives up to 15mm in height; Not compatible with U.2 drives
UNIVERSAL COMPATIBILITY: Backwards compatible with PCI Express 3.0 motherboards that have an available x4, x8, or x16 PCIe slot; U.3 Adapter works with all workstation and server operating systems such as Windows, Windows Server, and Linux
PREVENT OVERHEATING: Vented full-profile bracket and a large cutout in the PCB allow for better airflow and heat dissipation, which helps maintain optimal and reliable performance while reducing potential thermal throttling

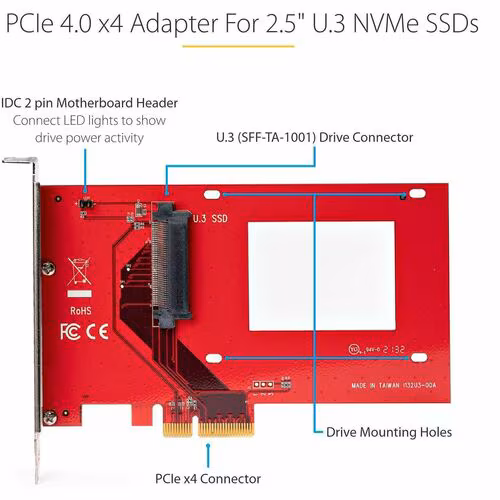

HASSLE-FREE SETUP: Pre-installed full-profile bracket & included drive mounting screws enable the connection of a U.3 drive to a PCIe slot, without the need of a drive backplane or additional cables; The U.3 to PCIe Card requires no drivers or software
THE IT PRO'S CHOICE: Designed and built for IT Professionals, this U.3 to PCI Express Adapter Card is backed for two years, including free lifetime 24/5 multi-lingual technical assistance

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

Add a 2.5 inch U.3 NVMe SSD into a PCIe 4.0 x4/x8/x16 slot in a desktop or server using the included screws, enabling ultra-fast data access.

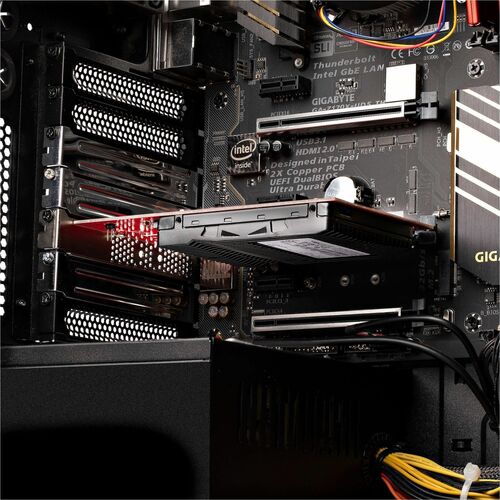

Add U.3 Capabilities to a Desktop or Server

Install an SFF-TA-1001 SSD into a desktop or server using an available PCI Express 4.0 slot. The pre-installed full-profile bracket and included drive mounting screws enable the connection of a U.3 NVMe drive to a PCIe slot, avoiding the need for a drive backplane or additional cables. This adapter is not compatible with U.2 drives.

Universal Compatibility

The Adapter Card is backward compatible with motherboards that feature x4, x8, and/or x16 PCIe 3.0 slots. The U.3 Adapter requires no additional drivers or software and works with all workstation and server operating systems, such as Windows, Windows Server, and Linux.

Optimal Airflow and Reliable Performance

The vented full-profile bracket and a large cutout in the PCB allow for better airflow and heat dissipation, which helps maintain optimal and reliable performance while avoiding thermal throttling.

Tech Specs

U.3 TO PCIE ADAPTER CARD - PCI EXPRESS 4.0 U.3 NVME SSDS specifications
Width	3.5"
Height	0.1"
Length	6.1"
Brand Name	StarTech.com
Color Family	Red
Manufacturer	StarTech.com
Product Name	U.3 (SFF-TA-1001) to PCIe 4.0 x4 Host Adapter for 2.5" U.3 NVMe SSDs
Product Type	U.3 to PCI Express Adapter
Compatibility	<p>Compatible Drive Types: U.3 (PCIe, NVMe, SFF-TA-1001)</p>
Product Color	Red
TAA Compliant	Yes

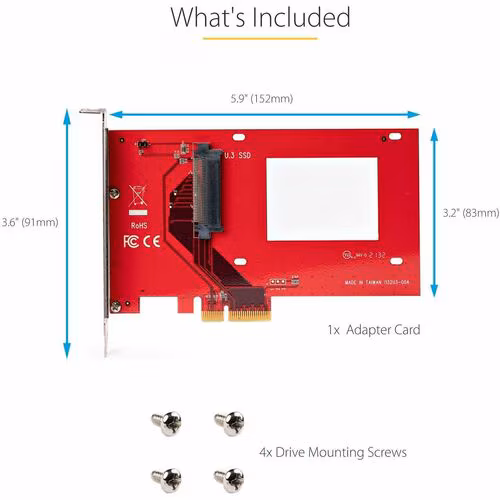

Package Contents	<ul><li> U.3 (SFF-TA-1001) to PCIe 4.0 x4 Host Adapter for 2.5" U.3 NVMe SSDs</li><li> 4 x Drive Mounting Screws</li><li> 1 x Quick-Start Guide</li></ul><p><br /></p>

Show all 21 specs

Product Material	Plastic
Country of Origin	Taiwan
Packaged Quantity	1
Weight (Approximate)	2.19 oz
Environmental Compliance	Restriction of Hazardous Substances (RoHS) 2
Environmentally Friendly	Yes
Manufacturer Part Number	PEX4SFF8639U3
Environmental Certification	EU RoHS
Manufacturer Website Address	http://www.startech.com
