M.2 NVME SSD DRIVE TRAY FOR PCIE EXPANSION PRODUCT SERIES

SKU: JS0682VPN: TR-M2-REMOVABLE-PCIE

In Stock

$41.39

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

ADDITIONAL DRIVE TRAY: Use with M2-REMOVABLE-PCIE-N1 or 2M2-REMOVABLE-PCIE for additional hot-swapable drives; Supports 2230, 2242, 2260, and 2280 M-Key M.2 NVMe SSDs; Capable of reaching high-performance read/write speeds up to 64Gbps
TOOLLESS INSTALLATION: Install an M.2 drive into the drive tray without the need for tools; Power/Activity LED indicator; Drive tray features a latching mechanism and is lockable for secure installation (2 keys incl.)
PREMIUM BUILD: Tray features thermal pads and aluminum cover to aid heat dissipation; Anti-vibration springs on the drive tray reduce vibration; Optional drive mounting screw for stability
COMPATIBILITY: No drivers or software required and works on any operating system including Windows, Windows Server, Linux; Requires base product of M2-REMOVABLE-PCIE-N1 or 2M2-REMOVABLE-PCIE to be used; Not compatible with M.2 SATA drives
HOT SWAP: This additional drive tray offers flexibility and convenience when working with multiple drives; PCIe hot swap support is dependent on the motherboard, check with the board manufacturer to confirm support

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

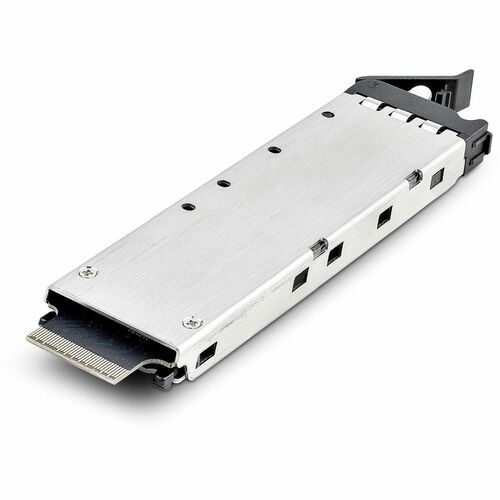

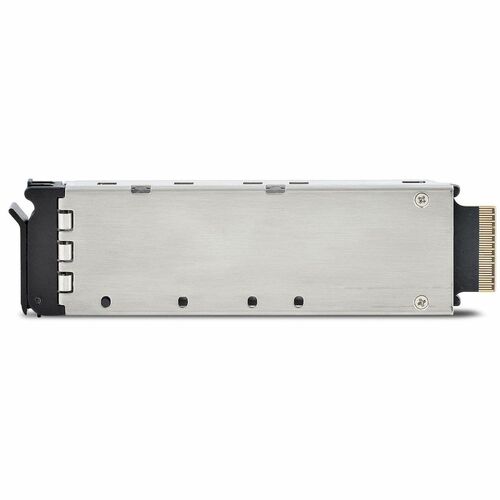

A spare drive tray for M2-REMOVABLE-PCIE-N1 or 2M2-REMOVABLE-PCIE, to add or swap a compatible drive. The drive tray accommodates M-Key M.2 NVMe SSDs in 2230, 2242, 2260, and 2280 sizes.

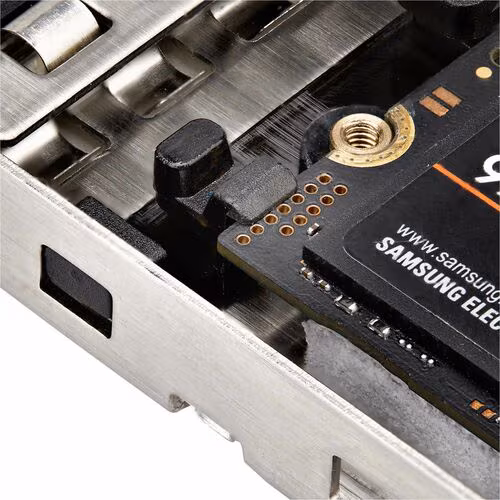

Toolless Installation

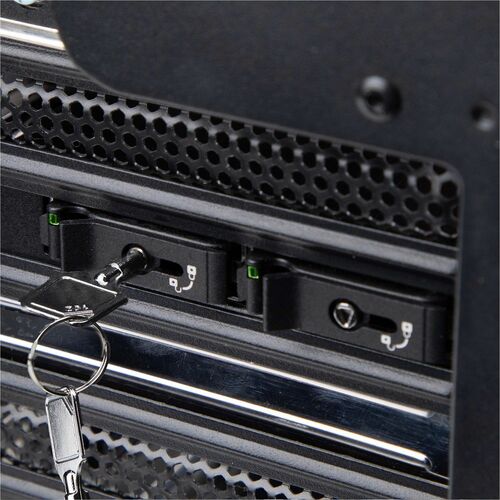

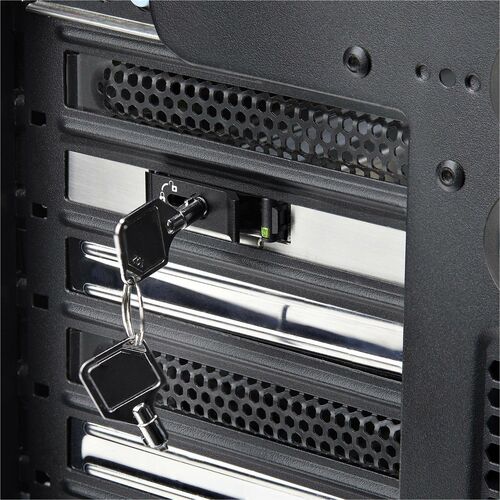

Install an M.2 drive into the drive tray without the need for tools. The drive tray features a power/activity LED indicator to monitor drive status. A latching mechanism with optional lock (2 keys included) deters the theft of mission-critical data storage devices.

Optimal Performance

The tray features thermal pads which aid heat dissipation, ensuring optimal and reliable performance while reducing potential thermal throttling. Anti-vibration springs on the drive tray reduce impact during installation and enhance the overall stability and longevity of the drive.

Hot-Swappable

When used with products from the PCIe Expansion Product Series, it provides flexibility and convenience for managing multiple M.2 drives. NVMe PCIe hot swap support is dependent on the motherboard. Verify hot swap support with the manufacturer of the motherboard and for instructions regarding how to enable this feature.

Tech Specs

M.2 NVME SSD DRIVE TRAY FOR PCIE EXPANSION PRODUCT SERIES specifications
Depth	4.9"
Width	1.3"
Height	0.5"
Brand Name	StarTech.com
Color Family	Dual Color
Manufacturer	StarTech.com
Product Name	M.2 NVMe SSD Drive Tray
Product Type	Drive Enclosure
Wireless LAN	No
Product Color	Silver
Drive Interface	PCI Express NVMe 4.0
Package Contents	<ul><li> M.2 NVMe SSD Drive Tray</li><li> 1 x Adhesive Heatsink Pad</li><li> 1 x Quick-Start Guide</li></ul>

Show all 27 specs

Product Material	Aluminum
Country of Origin	China
Packaged Quantity	1
Hot Swappable Bays	Yes
Weight (Approximate)	1.27 oz
Indicators & Controls	<ul><li> 1 - Red: Connected Drive is Not Supported</li><li> 1 - Green: Connected Drive is Supported</li><li> 1 - Yellow: Flashes to indicate Drive Activity</li></ul>
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE)
Environmentally Friendly	Yes
Manufacturer Part Number	TR-M2-REMOVABLE-PCIE
Maximum Data Transfer Rate	64 Gbit/s
Operating System Supported	Windows
Manufacturer Website Address	http://www.startech.com
Number of Total Expansion Bays	1
Number of Solid State Drive Installed	0
Number of Solid State Drive Supported	1
