TRIPLE 4K DP 1.4 TO DISPLAYPORT TO DISPLAYPORT MST HUB

SKU: 9BF076VPN: CE-DP0P11-S1

In Stock

$129.99$36.71

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

For exceptional quality, upright compatibility and reliability use this a/v cable
Features DisplayPort cable type for optimal performance and better dependability
Multi-Stream Transport (MST) Support feature for better usability and increased efficiency
Monitor device supported for your convenience and better usability

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

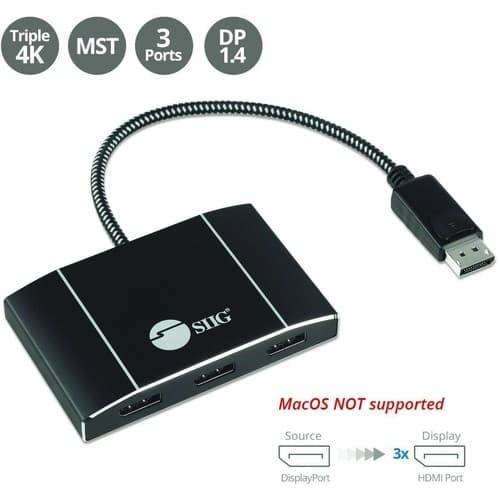

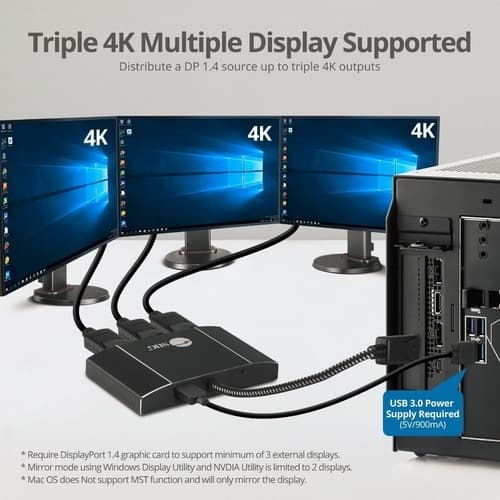

Connect up to three DisplayPort displays to single DisplayPort 1.4 output with Multi-Stream Transport (MST) technology to boost your productivity
Provides multiple display modes such as Mirror mode same content on each display, Extended mode with individual content on each display, and Panoramic Video Wall mode which combines multiple monitors to use as one large display
Note: Mirror mode using a NVIDIA Surround technology graphics adapter is limited to 2 displays. Video Wall mode requires either a AMD Eyefinity, Intel, or NVIDIA Surround technology graphics adapter
Total Bandwidth 32.4Gbps (max): Supports one UHD 8K (7680 x 4320)@30Hz display, two 4K@60Hz displays, three or four 4K (3840x2160)@30Hz or less displays. Other resolution combinations which are less than or equal to 4K@30Hz will work also. For example, three 2K, three 1080p, 4K+2K+1080p, etc.
Note: The total combined bandwidth among all connected displays must NOT exceed the total maximum bandwidth
Compatible with DisplayPort 1.4 with MST graphics cards with AMD Eyefinity, Intel Collage or NVIDIA Surround technology
Supports 4K HDR and HDCP 2.2

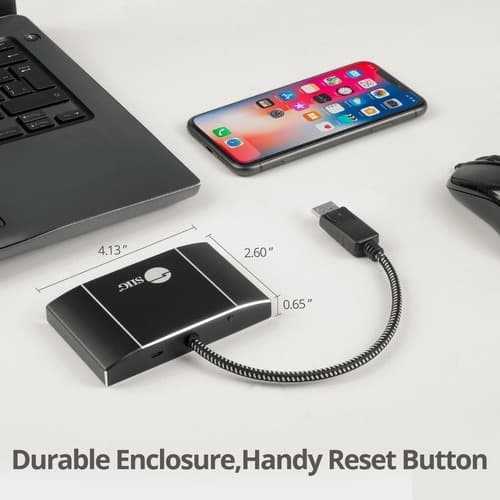

Reset button allows re-detection of all the displays if any of the displays are not detected
Plug-n-play, trouble-free set up without complicated hardware or driver installation
High quality aluminum housing decreases surrounding electro magnetic interference and provides optimal video quality
Note: Replaces CE-DP0D12-S1

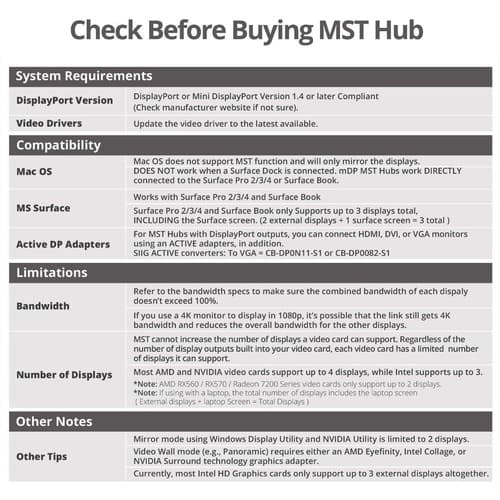

Compatibility Notes:
- Requires either AMD Eyfinity or Intel Collage or NVIDIA Surround technology graphics adapter for Video Wall mode
- Requires a DisplayPort 1.4 graphics card to support minimum of 3 external displays
- Mirror mode using Windows Display Uility and NVIDIA Utility is limited to 2 displays

Tech Specs

TRIPLE 4K DP 1.4 TO DISPLAYPORT TO DISPLAYPORT MST HUB specifications
Features	Mirror Display Mode
Brand Name	SIIG
Cable Type	DisplayPort
Manufacturer	SIIG, Inc
Product Name	1x3 Triple 4K DisplayPort 1.4 to DisplayPort MST Hub Splitter
Product Type	A/V Cable
Compatibility	<p>Microsoft Surface Book<b><br /><br />Microsoft Tablet:</b></p> <ul> <li>Surface Pro 2</li> <li>Surface Pro 3</li> <li>Surface Pro 4</li> </ul> <p><b>AMD Graphics Card:</b></p> <ul> <li>RX560</li> <li>RX570</li> <li>Radeon 7200 Series</li> </ul>
Product Color	Black
Device Supported	Graphics Card

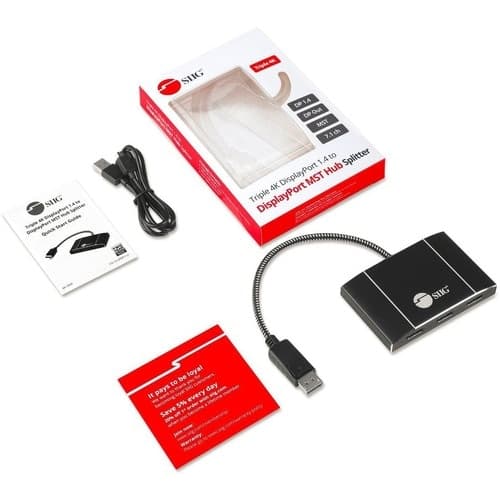

Package Contents	<ul> <li>1x3 Triple 4K DisplayPort 1.4 to DisplayPort MST Hub Splitter</li> <li>Micro-USB power cable</li> <li>Quick Start Guide</li> </ul>
Country of Origin	China
Data Transfer Rate	32.4 Gbit/s

Show all 22 specs

Cable Characteristic	Splitter Cable
Supported Resolution	7680 x 4320
Weight (Approximate)	0.28 lb
Environmentally Friendly	Yes
Manufacturer Part Number	CE-DP0P11-S1
Connector Type on First End	DisplayPort 1.4 Digital Audio/Video - Male
Connector Type on Second End	DisplayPort 1.4 Digital Audio/Video - Female
Manufacturer Website Address	http://www.siig.com
Connector on First End Details	1 x 20-pin DisplayPort 1.4 Digital Audio/Video - Male
Connector on Second End Details	1 x 5-pin Micro USB - Female
