4K HDMI WITH AUDIO EXTRACTOR CONVERTER
SKU: 8PZ335VPN: CE-H26Q11-S1
4K HDMI WITH AUDIO EXTRACTOR CONVERTER
Key Features
- Extracts and converts HDMI digital audio signal to 2-channel analog stereo, 5.1 channel Toslink optical, or coaxial S/PDIF outputs
- Supports video resoIution up to 4K@30Hz YUV 4:4:4, 4K@60Hz YUV 4:2:0 8-bit or 1080p@60Hz YUV 4:4:4 16-bit
- Supports 340MHz/10.2Gbps per channel bandwidth
- Supports up to 16-bit per channel (48-bit all channel) deep color

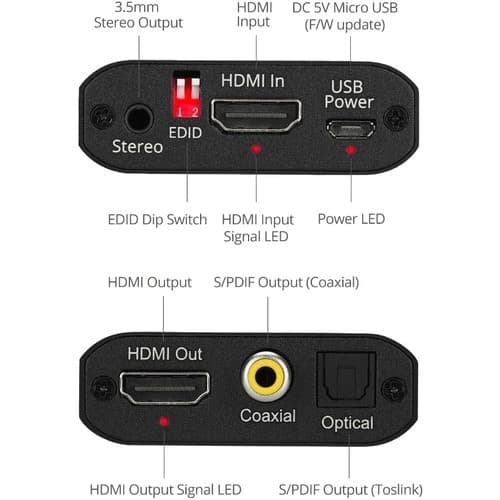

- EDID management DIP switches allows the best performance between the connected devices
- Provides the best compatibility via four EDID settings: Copy EDID of the HDMI output, 1080p 3D 2 CH (requires all displays connected to the splitter outputs must support 3D), 1080p 5.1 CH for Optical or Coaxial audio output and 4K 2CH for L/R stereo or Coaxial and Optical output
- Supports uncompressed formats like LPCM and compressed audio such as DTS Digital, Dolby Digital
- Supports HDCP 1.4, HDMI 1.4 specification and Plug and Play installation
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview

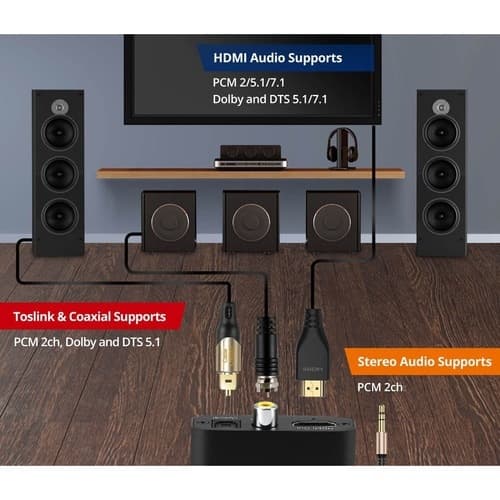

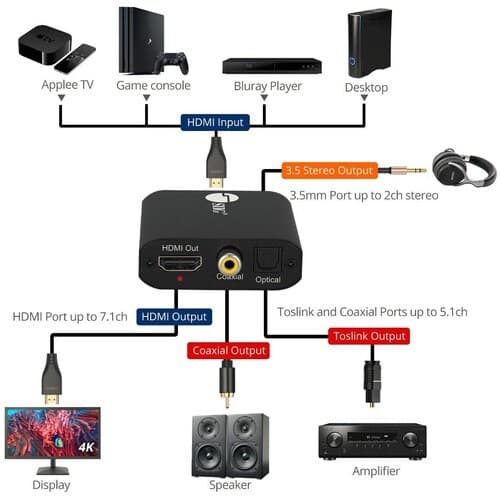

Extracts 4K HDMI audio and splits it to analog stereo, Toslink optical digital, and Coaxial S/PDIF outputs
Features
- Extracts and converts HDMI digital audio signal to 2-channel analog stereo, 5.1 channel Toslink optical, or
coaxial S/PDIF outputs - Supports video resoIution up to 4K@30Hz YUV 4:4:4, 4K@60Hz YUV 4:2:0 8-bit or 1080p@60Hz YUV 4:4:4 16-bit
- Supports 340MHz/10.2Gbps per channel bandwidth
- Supports up to 16-bit per channel (48-bit all channel) deep color
- EDID management DIP switches allows the best performance between the connected devices
- Provides the best compatibility via four EDID settings: Copy EDID of the HDMI output, 1080p 3D 2 CH (requires all displays connected to the splitter outputs must support 3D), 1080p 5.1 CH for Optical or Coaxial audio output and 4K 2CH for L/R stereo or Coaxial and Optical output
- Supports uncompressed formats like LPCM and compressed audio such as DTS Digital, Dolby Digital
- Supports HDCP 1.4, HDMI 1.4 specification and Plug and Play installation
Tech Specs
| USB | Yes |
|---|---|
| HDMI | Yes |
| Depth | 2.6" |
| Width | 2.2" |
| Height | 0.8" |
| Functions | Signal Conversion |
| Brand Name | SIIG |
| Form Factor | External |
| Manufacturer | SIIG, Inc |
| Product Name | 4K HDMI with Audio Extractor Converter |
| Product Type | Signal Converter |
| Audio Line Out | Yes |
Show all 20 specsShow fewer

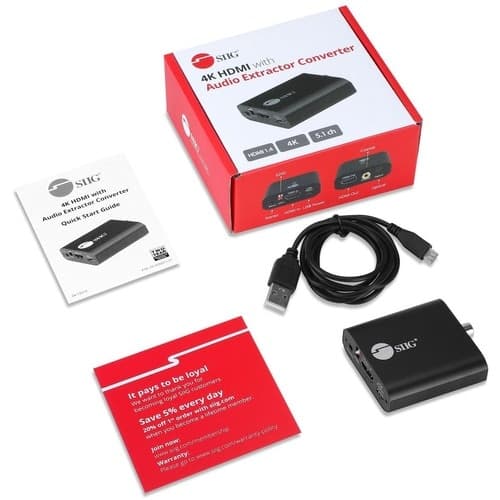

| Package Contents | <ul> <li>4K HDMI with Audio Extractor Converter</li> <li>Micro USB Power Cable</li> <li>Quick Start Guide</li> </ul> |
|---|---|
| Country of Origin | China |
| Maximum Resolution | 3840 x 2160 |
| Weight (Approximate) | 0.11 lb |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmentally Friendly | Yes |
| Manufacturer Part Number | CE-H26Q11-S1 |
| Manufacturer Website Address | http://www.siig.com |
