EATON TRIPP LITE SERIES CONNECTIVIT

SC MULTIMODE MEDIA CONVERTER 10/100/1000 RJ45 SC 550M 850NM

SKU: XU0408VPN: N785-001-SC-MM

SC MULTIMODE MEDIA CONVERTER 10/100/1000 RJ45 SC 550M 850NM

Key Features

  • Extends a Gigabit Ethernet signal up to 550M over Multimode Fiber Optic Cable
  • Auto detects Full/Half Duplex Transfer Mode
  • Supports Multimode 50/125 cable up to 550M or 62.5/125 cable up to 400M
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

Tripp Lite's N785-001-SC-MM 10/100/1000 to Multimode Media Converter ( RJ45 to SC ) is an economical way to extend the distance of network nodes up to 550 Meters by converting Cat5e UTP cables to Multimode Fiber Optic. The Media Converter features automatic MDI/MDI-X configuration, and the UTP port senses the network speed automatically. Auto-detects half or full duplex operation on the fiber port. Power supplied by small form factor AC adapter.

Tech Specs

SC MULTIMODE MEDIA CONVERTER 10/100/1000 RJ45 SC 550M 850NM specifications
DVINo
USBNo
Depth2.8"
Width4.7"
Height1"
Brand NameTripp Lite series
Form FactorDesktop
Color FamilyBlack
ManufacturerEaton Corporation
Product Name10/100/1000 SC Multimode Media Converter, 550M, 850nm
Product TypeTransceiver/Media Converter
Digital AudioNo
Show all 35 specs
Input Voltage5 V DC
Parallel PortNo
Product ColorBlack
Product ModelN785-001-SC-MM
Management PortNo
Network (RJ-45)Yes

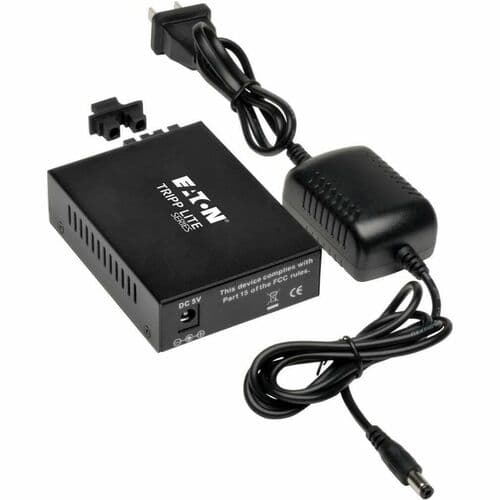

Package Contents<ul><li>10/100/1000 SC Multimode Media Converter, 550M, 850nm</li><li>AC Power Adapter</li><li>User Manual</li></ul>
Country of OriginChina
Network Technology1000Base-SX
Number of SC Ports1
Digital Audio/VideoNo
Ethernet TechnologyGigabit Ethernet
Fiber Mode SupportedMulti-mode
Media Type SupportedOptical Fiber
Weight (Approximate)1 lb
Total Number of Ports2
Environmentally FriendlyYes
Manufacturer Part NumberN785-001-SC-MM
Certifications & Standards<ul><li>FCC</li><li>CE</li></ul>
Maximum Distance Supported0.55 km
Fiber Optic Cable Wavelength850 nm
Manufacturer Website Addresshttp://www.eaton.com
Number of Network (RJ-45) Ports1
