EATON TRIPP LITE SERIES CONNECTIVIT
SC MMF FIBER TO GBE MEDIA CONVERTER POE+ 10/100/1000 2KM
SKU: 6NH618VPN: N785-P01-SC-MM2
SC MMF FIBER TO GBE MEDIA CONVERTER POE+ 10/100/1000 2KM
Key Features
- With Twisted Pair cable, get the desired data transfer rate up to a required distance
- Expand your network capabilities with this 2 transceiver/media converter
- With 10/100/1000Base-T technology get up to 1000Mbps data transfer rate over supported network cable
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview
Extends your copper Gigabit Ethernet network connection up to 2 km (1.2 mi.) over SC fiber optic cable with the addition of PoE.
- Extends power (48 VDC) + data (1000 Mbps) to any edge PoE+ device
- Supports multimode fiber optic cable with SC connectors up to 2 km (1.2 mi.)
- RJ45 jack supports auto-MDI/MDIZ to bridge various network devices
- Supports both full- and half-duplex operation
- Works in tandem with Tripp Lite N785-001-SC (sold separately)
Tech Specs
| Depth | 2.8" |
|---|---|
| Width | 3.7" |
| Height | 1" |
| Brand Name | Tripp Lite series |
| Manufacturer | Eaton Corporation |
| Power Source | Power Supply |
| Product Name | N785-P01-SC-MM2 Transceiver/Media Converter |
| Product Type | Transceiver/Media Converter |
| SC Port Type | Duplex |
| Product Model | N785-P01-SC-MM2 |
| Network (RJ-45) | Yes |

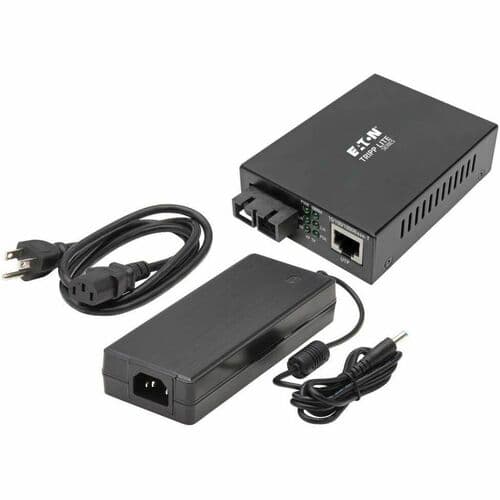

| Package Contents | <ul> <li>N785-P01-SC-MM2 Transceiver/Media Converter</li> <li>External Power Supply with 3.6 ft. Cord and NEMA 5-15P Plug (Input: 100-240V, 50/60 Hz, 1.5A; Output: 48V 1.25A)</li> <li>Owner's Manual</li> </ul> |
Show all 27 specsShow fewer
| Country of Origin | China |
|---|---|
| Network Technology | 1000Base-X |
| Number of SC Ports | 1 |
| Ethernet Technology | Gigabit Ethernet |
| Fiber Mode Supported | Multi-mode |
| Media Type Supported | Twisted Pair |
| Weight (Approximate) | 7.04 oz |
| Total Number of Ports | 2 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmentally Friendly | Yes |
| Manufacturer Part Number | N785-P01-SC-MM2 |
| Maximum Distance Supported | 2 km |
| Fiber Optic Cable Wavelength | 1310 nm |
| Manufacturer Website Address | http://www.eaton.com |
| Number of Network (RJ-45) Ports | 1 |
