VERTIV-1 PHASE UPS

PSI5 800 720W 120VAC RT

SKU: 5DA980VPN: PSI5-800RT120

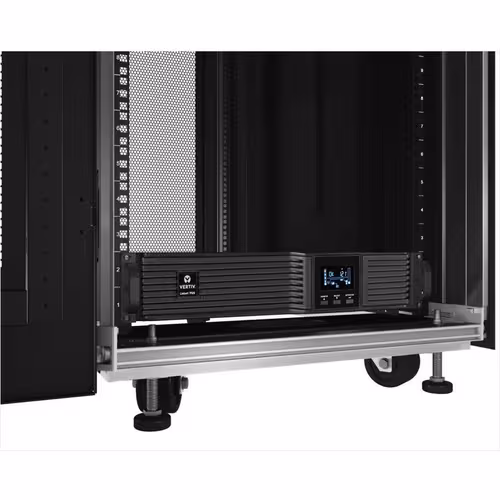

PSI5 800 720W 120VAC RT

Key Features

  • The 800VA UPS offers power protection and has AVR to extend battery life.
  • With Pure Sine Wave UPS, it protects against power fluctuations, equipment damage and data loss.
  • This single phase line interactive UPS has 0.9 output power factor or more usable power.
  • Add a communication card to this UPS to monitor devices remotely.
  • The rotatable LCD allows you to view of real-time conditions, alarm notice, and runtime information.
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

The Vertiv Liebert PSI5 uninterruptible power supply (UPS) is designed to protect and extend the life of your electronic devices in school, home and office. This 800VA UPS offers cost-effective protection from downtime and damage caused by power outages, brownouts, sags, surges or noise interference. Automatic Voltage Regulation (AVR) extends battery life. Voltage regulation is from 75 to 146 VAC without using the battery. With advanced pure sine wave output, this line interactive UPS ensures availability of critical IT applications like network closets and small data centers. This battery backup allows orderly shutdown of critical equipment. It takes less than 6 milliseconds transfer time to battery. Add an optional Vertiv Liebert Unity communication card and remotely monitor up to 50 UPS systems with free Vertiv Trellis Power Insight Application. It has a 2-year Vertiv UPS warranty.

Tech Specs

PSI5 800 720W 120VAC RT specifications
AVRYes
Depth16.1"
PhaseSingle Phase
Width17.2"
Height3.5"
EPO PortYes
Brand NameVertiv Liebert
Energy StarYes
Form FactorRack/Tower
Rack Height2U
ManufacturerVertiv
Product NamePSI5 800VA/720W, 120VAC, Rack-tower
Show all 52 specs
Product TypeLine-interactive UPS
Hot SwappableYes
Input Voltage120 V AC
TAA CompliantNo
Transfer Time6 ms
Waveform TypePure Sine Wave
Output Voltage115 V AC
Product FamilyPSI5
Product SeriesPSI5
Input Frequency60 Hz
Network (RJ-45)Yes
Receptacle TypeNEMA 5-15R
Package Contents<ul> <li>PSI5 800VA/720W, 120VAC, Rack-tower</li> <li>USB Type A To USB Type B Cable, 1.8 Meter (6 ft) In Length</li> <li>Printed Quick Start Guide With Safety Instructions</li> <li>CD</li> <li>Tower Support Stands</li> </ul>
Application/UsagePower Supply
Battery ChemistryLead Acid
Country of OriginChina
Receptacle Detail6 x NEMA 5-15R
Status IndicatorsLCD Display
Load Capacity (VA)800 VA
Input Voltage Range75 V AC - 146 V AC
Plug/Connector TypeNEMA 5-15
Surge Energy Rating1372 J
Load Capacity (Watt)720 W
Weight (Approximate)28.40 lb
Additional Information<ul> <li>Shipping Dimensions, W X D X H, in (mm): 10.2 x 22.9 x 21.7 (258 x 582 x 550)</li> <li>Shipping Weight, lb (Kg): 32.2 (16.9)</li> </ul>
Battery CharacteristicsValve-regulated
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Environmentally FriendlyYes
Manufacturer Part NumberPSI5-800RT120
USB (HID Compliant) PortYes
Certifications & Standards<ul> <li>UL 1778, c-UL-us Listed</li> <li>FCC Part 15, Class B</li> <li>UL 497 B</li> <li>ISTA Procedure 1A Certification</li> </ul>
Backup/Run Time (Full Load)3 Minute
Backup/Run Time (Half Load)11 Minute
Manufacturer Website Addresshttp://www.vertiv.com/
Maximum Operating Temperature104°F (40°C)
Typical Battery Recharge Time4 Hour
Number of Battery & Surge Outlets6
Number of External Battery Cabinets6
Backup/Run Time With External Battery Cabinet (Full Load)2.57 Hour
Backup/Run Time With External Battery Cabinet (Half Load)5.83 Hour
