ATEN TECHNOLOGIES
PS2 W/ AUDIO KVM EXTENDER W/ RS-232 FUNCTION
SKU: DN1771VPN: CE350
PS2 W/ AUDIO KVM EXTENDER W/ RS-232 FUNCTION
Key Features
- Local and Remote Units connect at distances up to 150 m using Cat 5e cable
- Adjustable gain control - automatically and manually adjust signal strength to compensate for distance
- Dual console operation - control your system from both the local and remote keyboard, monitor, and mouse consoles
- Built-in ASIC for greater reliability and compatibility
- Auto Signal Compensation (ASC) and storage of settings
- RS-232 serial ports - connect to a serial terminal, or serial devices such as touchscreens and barcode scanners (Baud Rate up to 115200 bps)
- Audio Enabled - supports stereo speakers and microphone
- Pushbutton operating mode selection (Local Unit only) - select between Local and Auto operating modes, with the press of a single button
- Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV) and 2KV surge protection
- Superior video quality - 1920 x 1200@60Hz(30 m), 1600 x 1200@60Hz(150 m)
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview

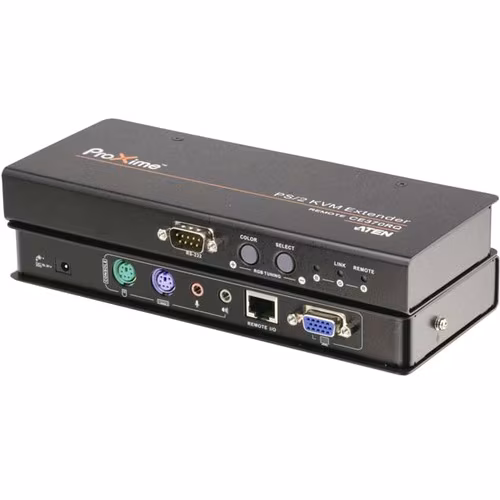

The CE350 a PS/2 based KVM Extender with automatic signal compensation and RS-232 serial functionality allows access to a computer system from a remote PS/2 console (PS/2 keyboard, monitor, and PS/2 mouse). Because it allows access to a computer system from a remote console, the CE350 is perfect for use in any type of installation where you need to place the console where it is conveniently accessible, but you want the system equipment to reside in a safe location - away from the dust and dirt of the factory floor, or the harsh environmental influence of a construction site, for example. This allows users to deploy system equipment over large distances.
Tech Specs
| VGA | Yes |
|---|---|
| Headphone | Yes |
| PS/2 Port | Yes |
| Brand Name | ATEN |
| Microphone | Yes |
| Form Factor | Rack-mountable |
| Graphic Mode | WUXGA |
| Manufacturer | ATEN Technology, Inc |
| Product Line | ProXime |
| Product Name | ProXime CE350 KVM Console/Extender |
| Product Type | KVM Console/Extender |
| Input Voltage | 5.3 V DC |
Show all 32 specsShow fewer
| Product Model | CE350 |
|---|---|
| KVM Technology | Analog |
| Product Family | ProXime |
| Network (RJ-45) | Yes |
| Package Contents | <ul><li>ProXime CE350 KVM Console/Extender</li><li>1 x Custom PS/2 KVM Cable Set (1.8 m)</li><li>2 x Power Adapters</li><li>1 x Rack Mount Kit</li><li>2 x Grounding Wires</li><li>1 x User Manual</li><li>1 x Quick Start Guide</li></ul> |
| Country of Origin | Taiwan |
| Packaged Quantity | 1 |
| Number of VGA Ports | 2 |
| Number of PS/2 Ports | 4 |
| Proprietary Interface | Yes |
| Connectivity Technology | Wired |
| Environmentally Friendly | Yes |
| Manufacturer Part Number | CE350 |
| Maximum Video Resolution | 1920 x 1200 |
| Maximum Operating Distance | 492.13 ft |
| Manufacturer Website Address | http://www.aten.com/us/en/ |
| Number of Computers Supported | 1 |
| Receiver Weight (Approximate) | 1.08 lb |
| Number of Network (RJ-45) Ports | 2 |
| Transmitter Weight (Approximate) | 1.06 lb |
