EATON

POWER DISTRIBUTION MODULE 3KVA 6KVA UPS L6-30P 1 L6-30R 1XL14-30R

SKU: SN0862VPN: 9PXPPDM1G2

POWER DISTRIBUTION MODULE 3KVA 6KVA UPS L6-30P 1 L6-30R 1XL14-30R

Key Features

  • PDU improves efficiency, uptime and growth of data centers
  • NEMA 5-20R receptacle type to ensure maximum usability and reliable power output
  • Single Phase phase PDU provides optimal power output with added usability
  • NEMA L6-30P plug/connector type for reliable, productive connectivity and optimal power output
  • 230 V AC input voltage for maximum feasibility and added productivity
  • 100 V AC output voltage for better reliance and maximum usability
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

208V to 120V Power Distribution Module Converts High-Voltage Input to Low-Voltage Output

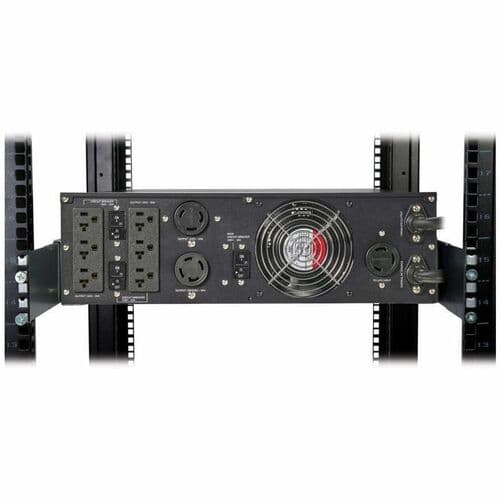

The 9PXPPDM1G2 converts your UPS system's 208V high-voltage input to 120V low-voltage output. It features one L6-30R, one L14-30R and six NEMA 5-20R outlets for connecting equipment. Resettable 30A circuit breakers protect against overload conditions.

Compatible with Select Eaton UPS Systems

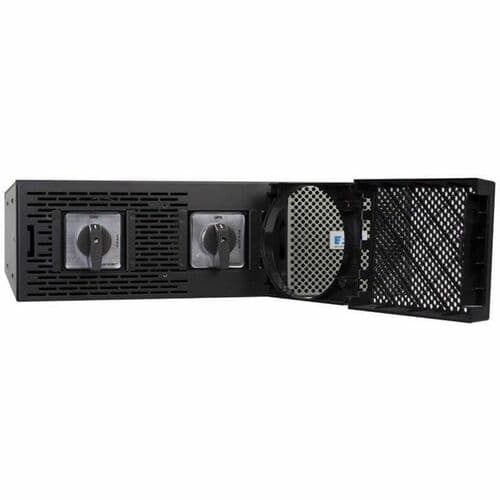

The 9PXPPDM1G2 works with Eaton's 9PX5KG2, 9PX6KG2, 9PX6K-L and 9PX3K3UG2 UPS systems. Its front-panel maintenance bypass switch lets you service or replace the UPS system without powering down any equipment and risking costly downtime. All connected equipment remains energized, even while the UPS system is not present.

Versatile Installation Options

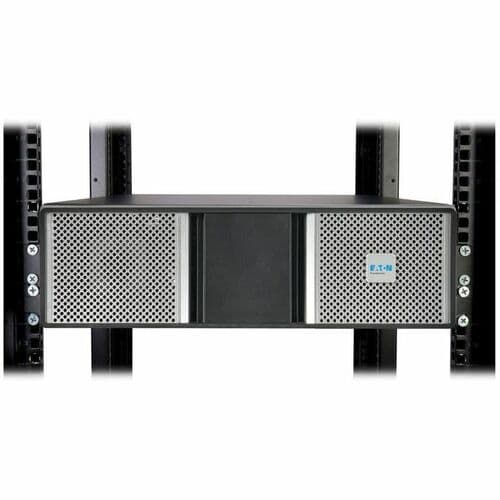

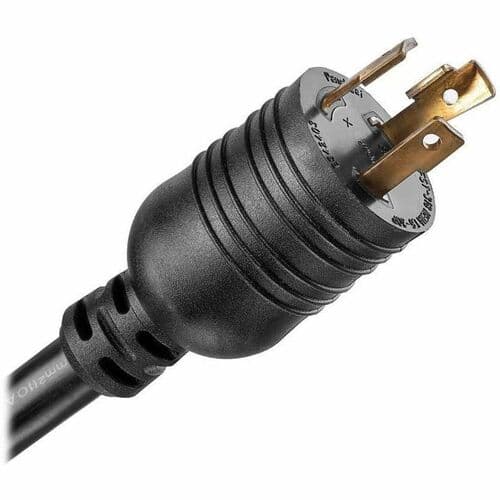

You can mount the 9PXPPDM1G2 in 3U of space in an EIA-standard 19-inch rack using the included 4-post rail kit or an optional 2-post rail kit (RK2PC, sold separately). You can also adapt it for tower installation using the included joining bracket and hardware. The 10-foot power cord with L6-30P plug connects to a compatible AC outlet.

Tech Specs

POWER DISTRIBUTION MODULE 3KVA 6KVA UPS L6-30P 1 L6-30R 1XL14-30R specifications
Depth25"
PhaseSingle Phase
Width17.3"
Height5.1"
Brand NameEaton
Mount TypeRack-mountable
Cord Length6 ft
Energy StarYes
Form FactorRack/Tower
Rack Height3U
Color FamilyBlack
ManufacturerEaton Corporation
Show all 40 specs
Power SourceUPS
Product LinePowerPass
Product NamePowerPass 9PXPPDM1G2 8-Outlets PDU
Product TypePDU
Compatibility<p><strong>Eaton's 9PX G2 UPS Systems:</strong></p><ul><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>9PX5KG2</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>9PX6KG2</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>9PX6K-L </li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>9PX3K3UG2</li></ul>
Input Current30 A
Input Voltage230 V AC
Product ColorBlack
Product Model9PXPPDM1G2
Output Voltage240 V AC
Product FamilyPowerPass
Circuit BreakerYes
Input Frequency60 Hz
Protection TypeSurge Protection
Receptacle TypeNEMA L6-30R
Package Contents<ul><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>PowerPass 9PXPPDM1G2 8-Outlets PDU</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>Joining Bracket And Hardware For Tower Configuration</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>Rack-mounting Hardware</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>Owner's Manuals</li></ul>
Application/UsageUPS
Country of OriginPhilippines
Receptacle Detail1 x NEMA L6-30R
Load Capacity (VA)6000 W
Plug/Connector TypeNEMA L6-30P
Load Capacity (Watt)6000 W
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Manufacturer Part Number9PXPPDM1G2
Certifications & Standards<ul><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>CE (Europe)</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>NOM (Mexico)</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>cUL Listed</li></ul>
Manufacturer Website Addresshttp://www.eaton.com
Maximum Operating Temperature104°F (40°C)
Minimum Operating Temperature32°F (0°C)
