EATON

POWER DISTRIBUTION MODULE 3KVA 6KVA 9PX G2 UPS HW 3U RACK/TOWER

SKU: SN0839VPN: 9PXPPDM2G2

POWER DISTRIBUTION MODULE 3KVA 6KVA 9PX G2 UPS HW 3U RACK/TOWER

Key Features

  • PDU allows power to be more efficiently distributed and controlled
  • Hardwired receptacle type to ensure maximum usability and reliable power output
  • Single Phase phase PDU provides optimal power output with added usability
  • Hardwired plug/connector type for better, dependable connectivity and desired power output
  • 230 V AC input voltage for maximum feasibility and added productivity
  • 100 V AC output voltage for better reliance and maximum usability
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

208V to 120V Power Distribution Module Converts High-Voltage Input to Low-Voltage Output

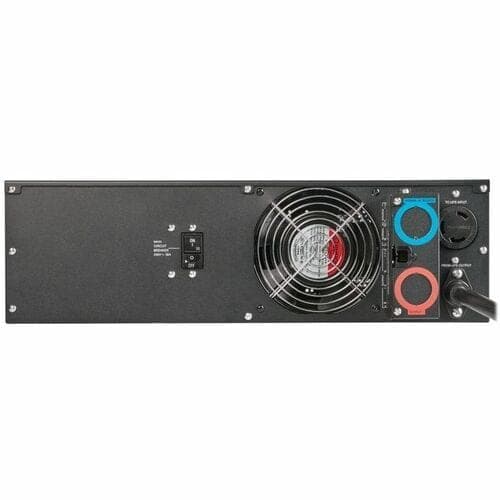

The 9PXPPDM2G2 converts your UPS system's 208V high-voltage input to 120V low-voltage output. It features hardwired input and output for connecting equipment and resettable 30A circuit breakers that protect against overload conditions.

Compatible with Select Eaton UPS Systems

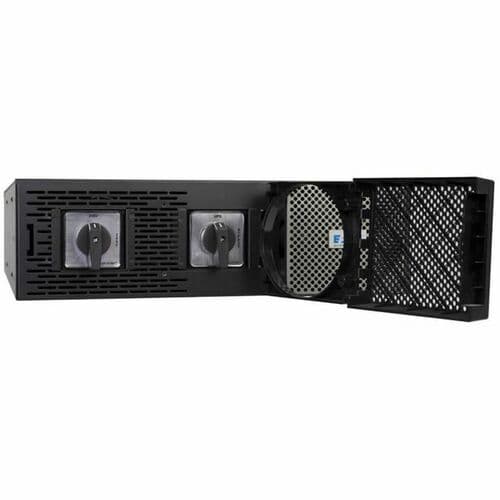

The 9PXPPDM2G2 works with Eaton's 9PX5KG2, 9PX6KG2, 9PX6K-L and 9PX3K3UG2 9PX G2 UPS systems. Its front-panel maintenance bypass switch lets you service or replace the UPS system without powering down any equipment and risking costly downtime. All connected equipment remains energized, even while the UPS system is not present.

Versatile Installation Options

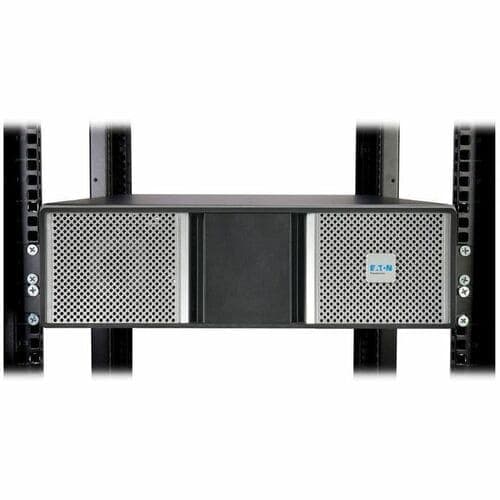

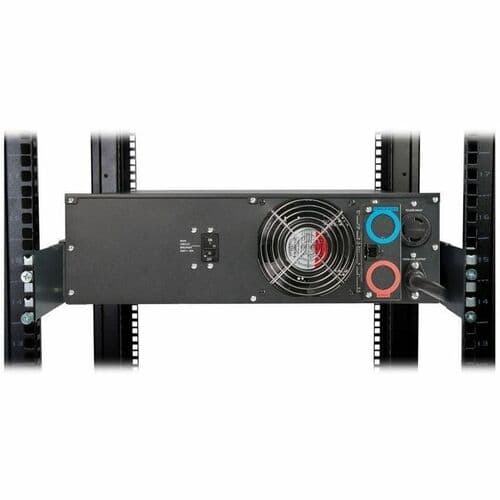

You can mount the 9PXPPDM2G2 in 3U of space in an EIA-standard 19-inch rack using the included 4-post rail kit or an optional 2-post rail kit (RK2PC, sold separately). You can also adapt it for tower installation using the included joining bracket and hardware.

Tech Specs

POWER DISTRIBUTION MODULE 3KVA 6KVA 9PX G2 UPS HW 3U RACK/TOWER specifications
Depth26.9"
PhaseSingle Phase
Width17.3"
Height5.1"
Brand NameEaton
Mount TypeRack-mountable
Energy StarYes
Form FactorRack/Tower
Rack Height3U
ManufacturerEaton Corporation
Power SourceUPS
Product LinePowerPass
Show all 37 specs
Product NamePowerPass 9PXPPDM2G2 1-Outlet PDU
Product TypePDU
Compatibility<p><strong>Eaton's 9PX G2 UPS Systems:</strong></p><ul><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>9PX5KG2</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>9PX6KG2</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>9PX6K-L </li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>9PX3K3UG2</li></ul>
Input Current30 A
Input Voltage230 V AC
Product Model9PXPPDM2G2
Output Voltage240 V AC
Product FamilyPowerPass
Circuit BreakerYes
Input Frequency60 Hz
Protection TypeSurge Protection
Receptacle TypeHardwired
Package Contents<ul><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>PowerPass 9PXPPDM2G2 1-Outlet PDU</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>2 x Cable Glands</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>Joining Bracket And Hardware For Tower Configuration</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>Rack-mounting Hardware</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>User's Guide</li></ul>
Application/UsageUPS
Country of OriginPhilippines
Receptacle Detail1 x Hardwired
Load Capacity (VA)6000 W
Plug/Connector TypeHardwired
Load Capacity (Watt)6000 W
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Manufacturer Part Number9PXPPDM2G2
Certifications & Standards<ul><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>cUL Listed</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>NOM (Mexico)</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>CE (Europe)</li></ul>
Manufacturer Website Addresshttp://www.eaton.com
Maximum Operating Temperature104°F (40°C)
Minimum Operating Temperature32°F (0°C)
