OPEN FRAME RACK SERVER CABINET 12U 2-POST HEAVY DUTY COMPACT

SKU: 8YK215VPN: SR2POST12HD

In Stock

$262.48$155.88

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

12U 2-post rack made from powder-coated steel that stands up to tough environments
Stable cantilever design allows mounting of heavy equipment without threat of tipping
Keyhole slots accept toolless 0U vertical mounting of PDUs and cable managers
Heavy-duty open frame rack allows maximum equipment load up to 350 lb.
Easy to assemble with included hardware for immediate mounting of rack equipment
5-year limited warranty

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

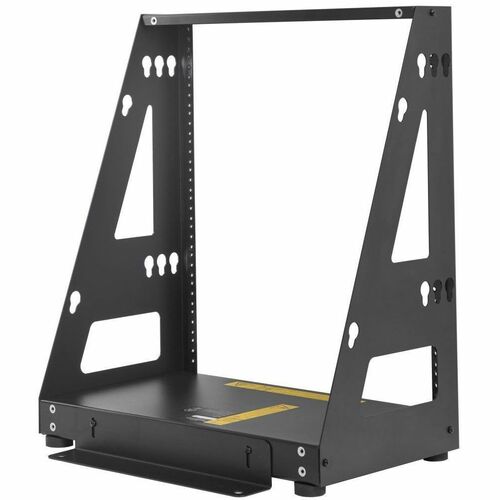

Features | Compact 12U 2-Post Rack Houses Equipment up to 12 in. Deep
This SmartRack® EIA-310 open frame rack is designed to house 12U of equipment, including servers, UPS systems, switches, cable managers and PDUs. It's recommended for mounting equipment in retail locations, classrooms, back offices, audio/video editing bays and radio/television studios. Constructed from heavy-duty steel with a durable black powder-coated finish, the 2-post rack has a maximum load capacity of 350 pounds (159 kilograms).

Bolts Down Almost Anywhere to Protect Equipment and Save Space

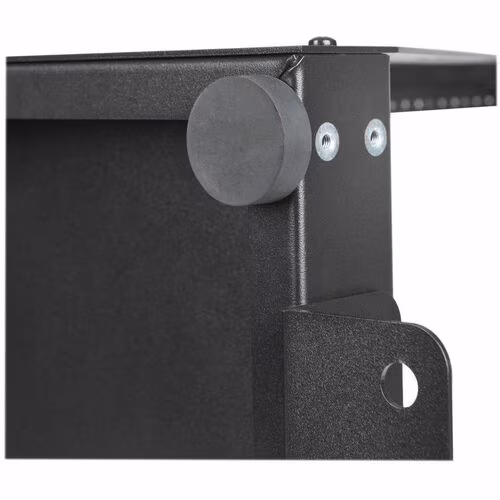

The special cantilever design allows the SR2POST12HD to house heavy equipment up to 12 inches (30.5 centimeters) deep without the risk of tipping over. Securement brackets and rubber feet are included for anchoring the rack to a flat surface with user-supplied hardware. The rack offers a small footprint and is able to fit almost anywhere in virtually any environment. You can position the open frame rack on any flat surface, including a floor, shelf or workbench.

Open Frame Design Allows Easy Access
The SR2POST12HD gives you instant access to equipment and cabling in both the front and rear. Install equipment using the 12-24 threaded and numbered mounting positions. Keyhole slots on the sides accept toolless 0U mounting of PDUs and cable managers.

Tech Specs

OPEN FRAME RACK SERVER CABINET 12U 2-POST HEAVY DUTY COMPACT specifications
Depth	11.7"
Width	20.7"
Height	24.6"
Features	Heavy Duty
Rack Type	Open Frame
Brand Name	Tripp Lite series
Rack Depth	12.01"
Rack Width	19"
Form Factor	Floor Standing
Rack Height	12U
Color Family	Black
Manufacturer	Eaton Corporation

Show all 30 specs

Product Line	SmartRack
Product Name	SmartRack Heavy-Duty 12U 2-Post Open Frame Rack
Product Type	Rack Frame
Product Color	Black Powder Coat
Product Model	SR2POST12HD
Product Family	SmartRack
Package Contents	<ul> <li>SmartRack Heavy-Duty 12U 2-Post Open Frame Rack</li> <li>2 x Upright Brackets</li> <li>Support Bar</li> <li>2 x Securement Brackets</li> <li>16 x M5 x 12 mm Screws</li> <li>4 x Rubber Feet</li> <li>Installation Guide</li> </ul> <ul></ul> <ul></ul> <ul></ul> <ul></ul> <ul></ul> <ul></ul> <ul></ul> <ul></ul> <ul></ul> <ul></ul> <ul></ul>
Product Material	Steel
Application/Usage	Patch Panel
Assembly Required	Yes
Country of Origin	China
Rack Post Quantity	2
Weight (Approximate)	22 lb
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmentally Friendly	Yes
Manufacturer Part Number	SR2POST12HD
Manufacturer Website Address	http://www.eaton.com
Static/Stationary Weight Capacity	350.53 lb
