MINI USB DVI HDBASET KVM EXTENDER WITH AUDIO
SKU: 8WL290VPN: CE611
MINI USB DVI HDBASET KVM EXTENDER WITH AUDIO
Key Features
- Supports HDBaseT™ technology
- Extends video, audio, USB, and RS-232 signals via a single Cat6 / 6a / ATEN 2L-2910 Cat 6 cable
- Enhanced bit error detection and correction to resist signal interference during high-quality video transmissions
- Status detection and LED indication for HDBaseT™ signal transmission
- Long distance with superior video quality - up to 1920 x 1200 @ 100m (Cat6 / 6a cable / ATEN 2L-2910 Cat 6 cable)
- USB 2.0 full speed ports - ensures fast transmission speeds for peripherals
- Supports individual 2-channel stereo audio for high-quality audio applications
- Built-in 8KV / 15KV ESD protection (contact voltage 8KV; air voltage 15KV)
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview

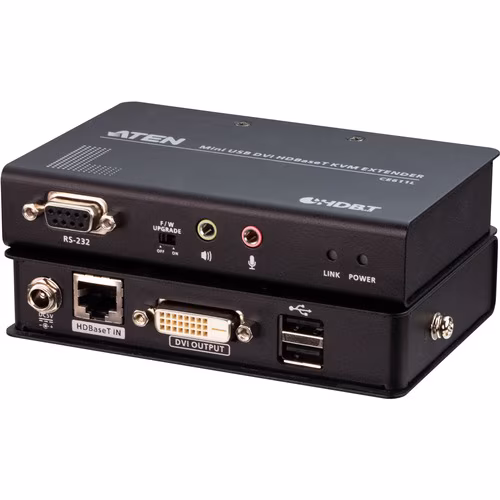

The ATEN CE611 is a USB DVI HDBaseT™ KVM Extender that integrates the latest HDBaseT™ technologies to transmit 1920 x 1200 DVI video, stereo audio, USB, and RS-232 signals up to 100 meters using a single Cat6 / 6a cable / ATEN 2L-2910 Cat 6 cable. This cost-effective extender comes with a small form factor design that includes DVI/audio interfaces, USB 2.0 full-speed ports, and serial console to fulfill most of extended KVM control and console demands. With an easy cable installation that supports various signals, the CE611 is ideal for applications where convenient remote access is required, such as transportation control centers, medical facilities, industrial warehouses, and extended workstations.
Tech Specs
| DVI | Yes |
|---|---|
| Brand Name | ATEN |
| Manufacturer | ATEN Technology, Inc |
| Product Name | Mini USB DVI HDBaseT KVM Extender (1920 x 1200@100m) |
| Product Type | KVM Extender |
| Product Model | CE611 |
| Receiver Depth | 3.42" |
| Receiver Width | 5.04" |
| Network (RJ-45) | Yes |
| Receiver Height | 0.98" |
| Country of Origin | China |
| Transmitter Depth | 3.42" |
Show all 26 specsShow fewer
| Transmitter Width | 5.04" |
|---|---|
| Transmitter Height | 0.98" |
| Number of DVI Ports | 2 |
| Number of USB Ports | 3 |
| Connectivity Technology | Wired |
| Manufacturer Part Number | CE611 |
| Maximum Video Resolution | 1920 x 1200 |
| Maximum Operating Distance | 328.08 ft |
| Manufacturer Website Address | http://www.aten.com/us/en/ |
| Receiver Weight (Approximate) | 11.99 oz |
| Number of Local Users Supported | 1 |
| Number of Network (RJ-45) Ports | 2 |
| Number of Remote Users Supported | 1 |
| Transmitter Weight (Approximate) | 12.35 oz |
