EATON TRIPP LITE SERIES CONNECTIVIT

MINI DISPLAYPORT HDMI ADAPTER MDP 1.2A TO HDMI 2.0 CABLE 4K 20FT

SKU: 9K6480VPN: P586-020-HD-V2A

MINI DISPLAYPORT HDMI ADAPTER MDP 1.2A TO HDMI 2.0 CABLE 4K 20FT

Key Features

  • Supports video resolutions up to 3840 x 2160 (4K x 2K) @ 60 Hz
  • Compliant with latest HDCP 2.2 standards
  • No separate power adapter required
  • High-grip HDMI plug prevents accidental disconnections
  • Supports HDMI 2.0 and EDID specifications
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

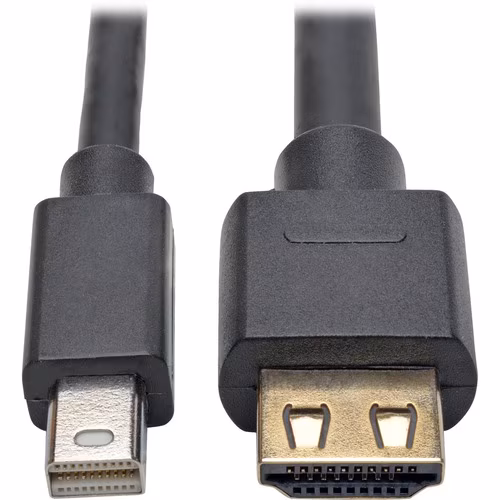

The P586-020-HD-V2A Mini DisplayPort 1.2a to HDMI Active Adapter Cable (M/M) connects an mDP- or Thunderbolt-enabled PC, Mac or Tablet (such as the Surface Pro series) to the HDMI port on a 4K monitor, projector or television. With an mDP male connector on one end and a gold-plated high-grip HDMI male connector on the other, this cable requires no separate power adapter. It lets you continue using an existing 4K HDMI display without the extra expense of buying a new mDP monitor.

Recommended for displaying crystal-clear video on a large monitor or digital sign, this cable supports HDMI 2.0 with full UHD video resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz. The P586-020-HD-V2A also supports rich, full audio (if your DisplayPort™ card supports audio passthrough) and the latest HDCP 2.2 (High-Bandwidth Digital Content Protection) standards.

Because it's an active adapter, the 20-foot P586-020-HD-V2A is compatible with Single-Mode and Dual-Mode (DP++) DisplayPort output. It's perfect for use with graphics cards, such as AMD Eyefinity, that don't output DP++ signals.

The corrosion-resistant gold-plated HDMI connector and contacts provide maximum conductivity and minimize data loss. Its special high-grip plug prevents a loose or accidentally disconnected cable from causing picture loss. Integral strain relief with ridges on each end gives the cable extra flexibility, reduces stress, and helps the cable and connectors move freely without cracking.

Tech Specs

MINI DISPLAYPORT HDMI ADAPTER MDP 1.2A TO HDMI 2.0 CABLE 4K 20FT specifications
FeaturesActive
Brand NameTripp Lite series
Cable TypeHDMI/Mini DisplayPort
Cable Length20 ft
Color FamilyBlack
ManufacturerEaton Corporation
Product NameP586-020-HD-V2A Mini DisplayPort 1.2a to HDMI Active Adapter Cable (M/M), 20 ft.
Product TypeA/V Cable
Product ColorBlack
Product ModelP586-020-HD-V2A
Shipping Width6.30"
Contact PlatingGold
Show all 26 specs
Shipping Height0.50"
Device SupportedTablet
Connector PlatingGold
Country of OriginChina
Supported Resolution3840 x 2160
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Environmentally FriendlyYes
Manufacturer Part NumberP586-020-HD-V2A
Connector Type on First EndHDMI 2.0 Digital Audio/Video - Male
Connector Type on Second EndMini DisplayPort 1.2a Digital Audio/Video - Male
Manufacturer Website Addresshttp://www.eaton.com
Shipping Weight (Approximate)12.80 oz
Connector on First End Details1 x HDMI 2.0 Digital Audio/Video - Male
Connector on Second End Details1 x Mini DisplayPort 1.2a Digital Audio/Video - Male
