MID/HIGH FREQUENCY SECTION FOR 3732 SYSTEM

SKU: 7ZF239VPN: 3732-M/HF

Out of Stock

$2,665.00$1,400.37

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

Three-way ScreenArray® design for maximum output, optimal coverage and minimum distortion
Available for bi-amplified operation (model 3732) or tri-amplified operation (model 3732-T)
Large format 3" neodymium, titanium diaphragm, high frequency compression driver
Mid/high section ships fully assembled
Molded Optimized Aperture Waveguide technology for ultra-low distortion and extremely uniform frequency response
SSC™ Screen Spreading Compensation
Focused coverage technoloy
Flat front waveguide design for easy baffle wall installation
Shallow profile for minimum behind-screen depth requirements

Adding to inquiry lets you bundle multiple products into a single quote request.

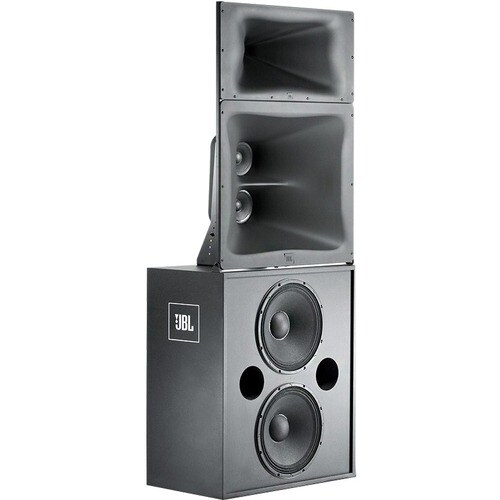

The 3732 ScreenArray features true three-way system design enhanced for critical film sound reproduction in small to medium cinemas environments

Features

Three-way ScreenArray™ design for maximum output, optimal coverage, and minimum distortion
Triamplified (T) or Biamplified operation
Approved for THX® certified applications(3732T)
Ships fully assembled
Second Generation Optimized Aperture Waveguide technology for ultra-low distortion, and extremely uniform frequency response
SSC™ Screen Spreading Compensation
Focused Coverage Technology™
Flat-front waveguide design for easy baffle wall installation
Shallow profile for minimum behind screen
depth requirements

MID/HIGH FREQUENCY SECTION FOR 3732 SYSTEM specifications
Depth	17.7"
Width	30"
Height	41.5"
Features	Bi-amplification
Brand Name	JBL Professional
Manufacturer	Harman International Industries, Inc
Product Name	3732 Three-Way Biamplified or Triamplified(T) ScreenArrayLoudspeaker System
Product Type	Speaker System
Product Model	3732-M/HF
Weight (Approximate)	51 lb
Manufacturer Part Number	3732-M/HF
Maximum Frequency Response	20 kHz
