METAL INDUSTRIAL USB TO RS422 RS485 SERIAL ADAP CABLE W/ISOLATION
SKU: V10089VPN: ICUSB422IS
METAL INDUSTRIAL USB TO RS422 RS485 SERIAL ADAP CABLE W/ISOLATION
METAL INDUSTRIAL USB TO RS422 RS485 SERIAL ADAP CABLE... Key Features
- Provides one RS422/485 port while powering the device through USB
- RS-485 mode supports Auto Transceiver Turn Around (ATTA)
- Compatible with both USB 2.0 and USB 1.1
- RS422/485 Baud rate up to 921.6 Kbps

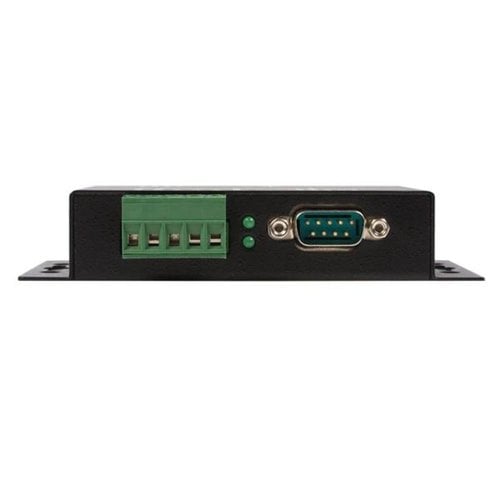

- Supports DB9 and terminal block connector
- Optical Isolation and Surge Protection (2500 Vrms)
- Supports 4-wire RS422 and 2-wire RS485 applications
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
METAL INDUSTRIAL USB TO RS422 RS485 SERIAL ADAP CABLE... Overview
The ICUSB422IS 1 Port Metal Industrial USB to RS422/RS485 Serial Adapter w/ Isolation connects to a computer using USB and allows you to connect any RS-422 or RS-485 serial device via the provided DB9 port or hard-wired to the terminal block. The USB to serial adapter features circuit isolation to ensure that sensitive controls and devices will not be damaged while connected, making it a viable solution for connecting costly industrial serial devices. The RS422/485 Converter receives full power via the host USB connection, and provides power to the attached serial device without requiring an external power adapter. Designed to provide a durable serial solution, the USB to RS422/485 Converter is ruggedly constructed and can be mounted nearly anywhere. Backed by a StarTech.com 2-year warranty and free lifetime technical support.
METAL INDUSTRIAL USB TO RS422 RS485 SERIAL ADAP CABLE... Tech Specs
| Depth | 4.6" |
|---|---|
| Width | 2.5" |
| Height | 0.9" |
| Brand Name | StarTech.com |
| Manufacturer | StarTech.com |
| Product Name | 1 Port Metal Industrial USB to RS422/RS485 Serial Adapter w/ Isolation |
| Product Type | Serial Adapter |
| Product Model | ICUSB422IS |
| TAA Compliant | Yes |

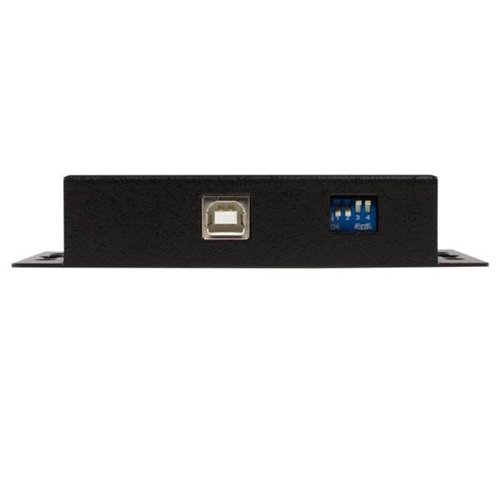

| Host Interface | USB 2.0 Type B |
| Package Contents | <ul> <li>1 Port Metal Industrial USB to RS422/RS485 Serial Adapter w/ Isolation</li> <li>1 x 6ft USB A to B Cable</li> <li>1 x Driver CD</li> <li>1 x User Manual</li> </ul> |
| Country of Origin | Taiwan |
Show all 20 specsShow fewer
| Packaged Quantity | 1 |
|---|---|
| Platform Supported | Linux |
| Weight (Approximate) | 6.40 oz |
| Additional Information | <p><b>OS Compatibility:</b></p> <ul> <li>Windows® CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10, 11</li> <li>Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019, 2022</li> <li>macOS 10.6 to 10.15, 11.0, 12.0, 13.0</li> <li>Linux Kernel 3.0.x and up - LTS Versions only</li> </ul> |
| Environmentally Friendly | Yes |
| Manufacturer Part Number | ICUSB422IS |
| Manufacturer Website Address | http://www.startech.com |
| Number of Serial Ports (External) | 1 |
METAL INDUSTRIAL USB TO RS422 RS485 SERIAL ADAP CABLE... Datasheets and Resources
