2 PORT PCI EXPRESS RS232 SERIAL ADAPTER CARD PCIE TO SERIAL DB9

SKU: 06DY59VPN: 21050-PC-SERIAL-CARD

In Stock

$53.66

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

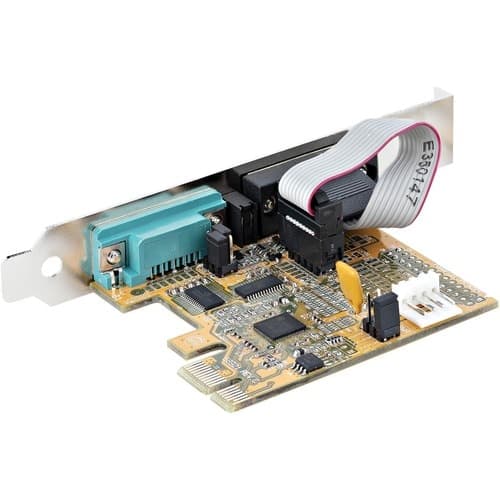

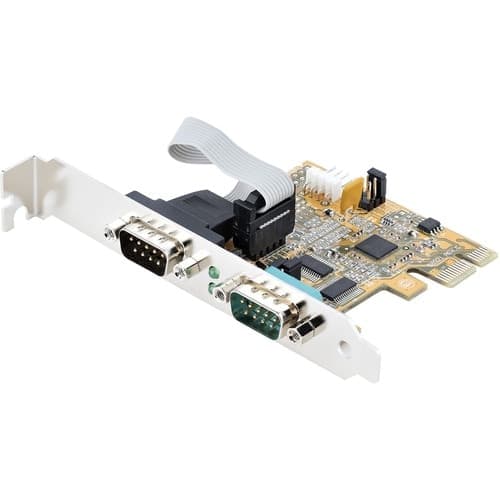

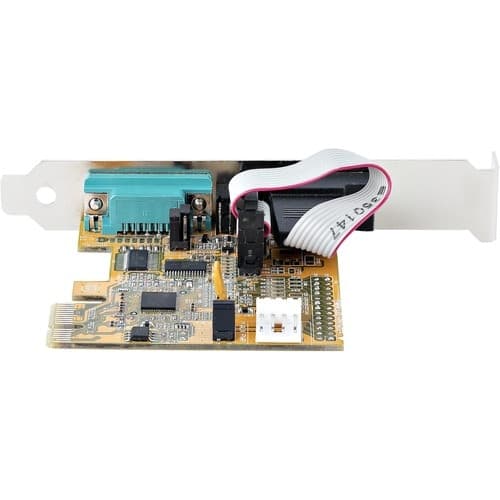

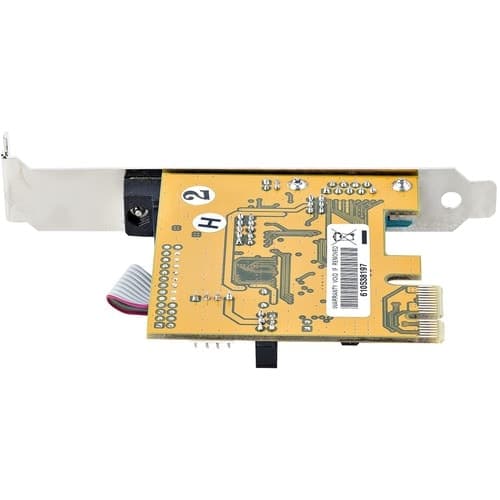

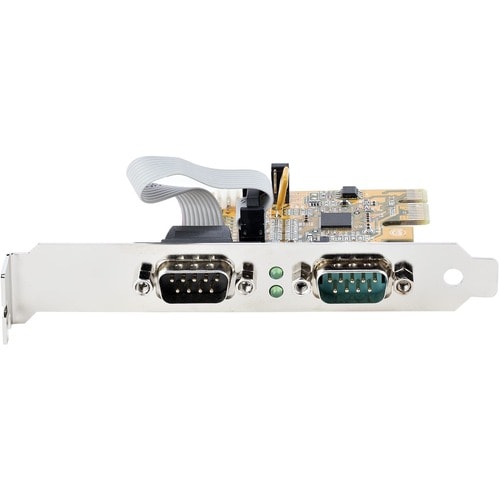

PCIE TO SERIAL: Connect serial RS232 (DB9) devices to a computer with this PC serial card. Features support for high performance 16C1050 UART on both DB9 male ports. Monitor activity with the built-in LED status lights on the PCI express DB9 card

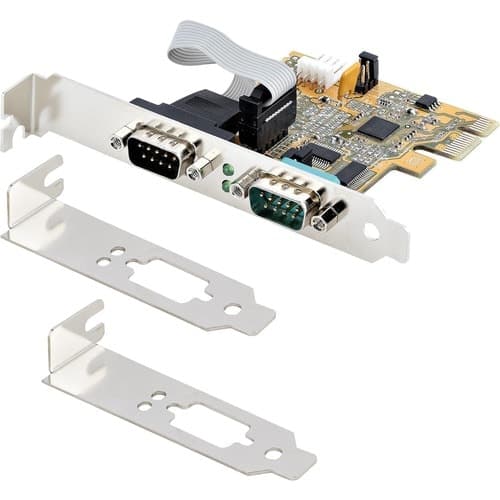

DEVICE COMPATIBILITY: Use this serial interface card to connect barcode readers/scanners, receipt printers, scales, PLCs, medical devices, etc. The UART PCIe card supplies 5V or 12V power over pin 9. Low-profile brackets are included
APPLICATIONS: This card is ideal for IT applications such as server rooms, industrial control/automation, logistics, and laboratories. Continue using legacy hardware with this RS232 PCIe card. DB9 ports accept screw locking serial cables
DUAL SERIAL PORT CARD SPECS: 16C1050 UART | Max Baud 921.6 Kbps per Port | 256 Byte FIFO | COM Retention | Supports Windows and Linux | Asix AX99100 Chipset | Odd/Even/Mark/Space/None Parity Modes | 5/6/7/8/9 Data Bits | PCIe 2.0 x1 | Low-profile Brackets
THE IT PRO'S CHOICE: Designed and built for IT Professionals, this PCIe to RS232 card is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

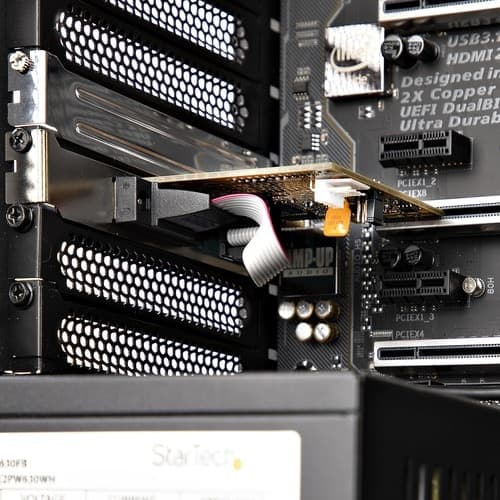

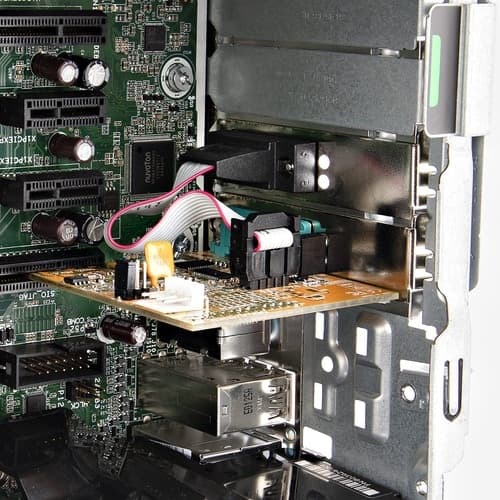

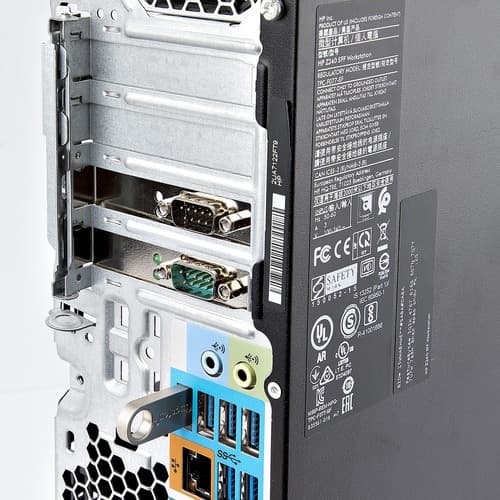

Add serial communication support to your desktop computer or Small Form Factor (SFF) system, using this two-port serial card. RS-232 (DB9) support enables control and communication with a serial peripheral device.

Legacy Connectivity

Install this card to enable the continued use of legacy serial devices, preventing down time and avoiding costly upgrades. The 2-port PCIe serial card is ideal for system upgrades in a wide range of applications for logistics, manufacturing, and freight sectors, and the IT industry, such as POS equipment, security systems, A/V installations, and more.

Connect with Ease

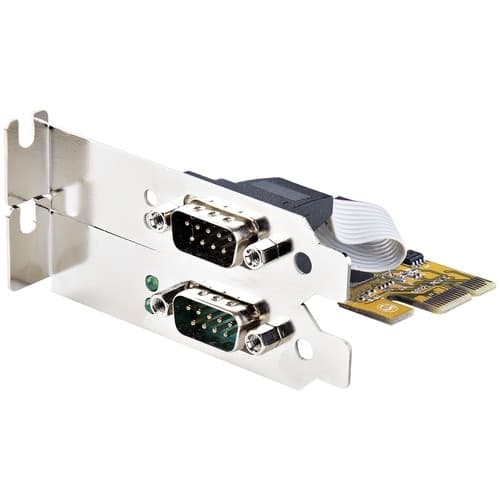

The RS-232 card features dual ports with 16C1050 UART support, 256-byte FIFO (transmit/receive), bi-directional speeds up to 921.6 Kbps per port, low-profile brackets are included for SFF systems, and serial port LED status lights. In addition, it supports Windows and Linux systems for maximum compatibility.

21050-PC-SERIAL-CARD is backed for 2-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.

Tech Specs

2 PORT PCI EXPRESS RS232 SERIAL ADAPTER CARD PCIE TO SERIAL DB9 specifications
Depth	2.6"
Width	2.6"
Height	0.7"
Brand Name	StarTech.com
Card Height	Low-profile
Form Factor	Plug-in Card
Manufacturer	StarTech.com
Product Name	Two-port PCIe Serial Card
Product Type	Serial Adapter
Host Interface	PCI Express x1
Package Contents	<ul> <li>Two-port PCIe Serial Card</li> <li>2 x Low-Profile Brackets</li> <li>1 x Quick-Start Guide</li> </ul>
Country of Origin	Taiwan

Show all 20 specs

Platform Supported	PC
Weight (Approximate)	0 oz
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE)
Environmentally Friendly	Yes
Manufacturer Part Number	21050-PC-SERIAL-CARD
Manufacturer Website Address	http://www.startech.com
Additional Warranty Information	<p> 2-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.</p>
Number of Serial Ports (External)	2
