BLACK BOX CORPORATION

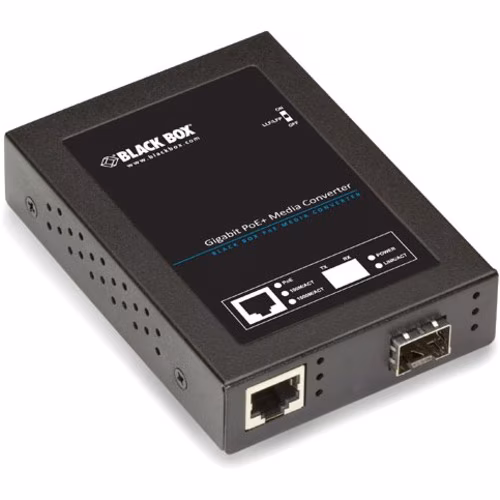

MEDIA CONVERTER GIGABIT ETHERNE T POE+ SFP
SKU: 4E7618VPN: LPS535A-SFP
MEDIA CONVERTER GIGABIT ETHERNE T POE+ SFP
Key Features
- Provides one 10-/100-/1000-Mbps copper port and one 1000Mbps SFP port
- Power sourcing equipment (PSE) on the copper side to provide up to 30 watts of power
- Compatible with 802.3af/at standard PoE devices
- Link Loss Forwarding provides instant notification of fiber segment link problems
- Copper port supports full-duplex, auto-MDI/MDI-X, and auto-negotiation
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview
Connect with fiber and provide power to remote PoE+ devices. Transparently connect fiber to copper to power PoE+ devices at the edge of your network. Use the Converter to connect PoE+ devices such as PTZ (pan tilt zoom) cameras 802.11n access points VoIP phones and more that require up to 30 watts of power. The Converter acts as a Power Sourcing Equipment (PSE) to push data and power over copper to the remote Powered Devices (PDs). The Media Converter features one autosensing 10/100/1000-BASE-T UTP port plus an SFP port that can be used for multimode and single-mode 1000BASE-X fiber connections. It is powered via an external AC adapter which delivers 4757 input power voltage. The Converter features advanced functions such as auto-negotiation Auto-MDIX Link Lost Forwarding and Link Fault Pass-Through for easy system management and troubleshooting. LEDs indicate Converter activity.
This product is covered by one of more of the following United States Patent Nos. 7457250 8902760 and/or 9019838.
Tech Specs
| DVI | No |
|---|---|
| USB | No |
| Depth | 4" |
| Width | 2.9" |
| Height | 0.9" |
| Brand Name | Black Box |
| Form Factor | External |
| Manufacturer | Black Box Corporation |
| Power Source | Power Supply |
| Product Name | Gb ETH PoE+ MED CONV 10/100/1000-Mbps COP to 1000-Mbps FBR SFP |
| Product Type | Transceiver/Media Converter |
| Product Model | LPS535A-SFP |
Show all 33 specsShow fewer
| TAA Compliant | Yes |
|---|---|
| Product Family | LPS530 |
| Product Series | LPS530 |
| Management Port | No |
| Network (RJ-45) | Yes |
| Country of Origin | Taiwan |
| Packaged Quantity | 1 |
| Network Technology | 10/100/1000Base-T |
| Ethernet Technology | Gigabit Ethernet |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 1 |
| Fiber Mode Supported | Multi-mode |
| Media Type Supported | Optical Fiber |
| Weight (Approximate) | 8.48 oz |
| Total Number of Ports | 1 |
| Additional Information | <p><b>This product is covered by one of more of the following: United States Patent Nos. 7,457,250; 8,902,760; and/or 9,019,838.</b></p> |
| Environmentally Friendly | Yes |
| Manufacturer Part Number | LPS535A-SFP |
| Manufacturer Website Address | http://www.blackbox.com |
| Number of PoE+ (RJ-45) Ports | 1 |
| Total Number of Expansion Slots | 1 |
