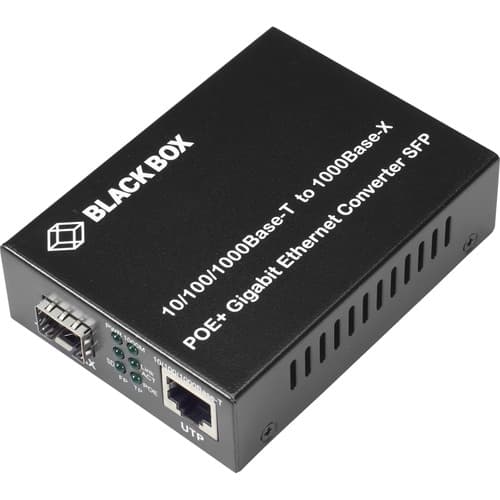

MEDIA CONVERTER 10/100/1000 ENET POE+ SFP

SKU: 06FF83VPN: LGC215A-R2

In Stock

$251.80$192.77

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

Compliant to EN62368
Converts 10/100/1000BASE-T to 1000BASE-X 802.3af/at Ethernet

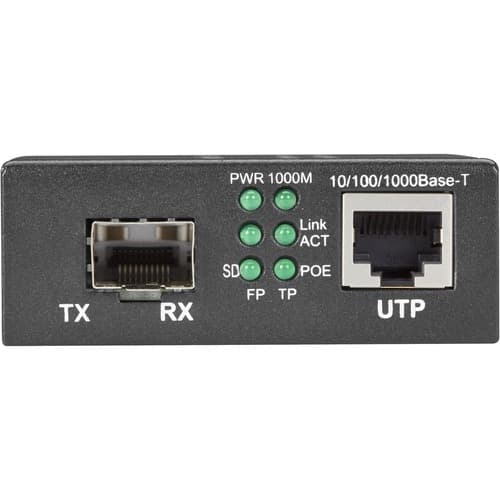

One RJ45 twisted-pair jack, one fiber-optic connector and four LED indicators
Link fault pass-through functionality
PoE function

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

Easily convert 10/100/1000BASE-T to 1000BASE-X SFP and also provide PoE+ 802.3af/at on the copper port. 10/100/1000BASE-T to 1000BASE-X 802.3af/at Easily convert 10/100/1000BASE-T to 1000BASE-X 802.3af/at Ethernet with this PoE converter. Know link media issues immediately Features helpful Link Fault Pass-Through (LFP) functionality. LFP immediately alarms administrators to the problem with the link media and provides an efficient solution to monitor the net. Know where connections are down Link Loss Carry Forward (LLCF) informs you of failing links. LLCF means when a device connected to the converter and the TP line lose the link the converter's fiber will disconnect the link of transmit.

Tech Specs

MEDIA CONVERTER 10/100/1000 ENET POE+ SFP specifications
Depth	2.7"
Width	3.7"
Height	1"
Frequency	60 Hz
Brand Name	Black Box
Form Factor	Standalone
Manufacturer	Black Box Corporation
Power Source	Power Adapter
Product Line	Pure Networking
Product Name	Pure Networking Transceiver/Media Converter
Product Type	Transceiver/Media Converter
PoE Port Type	PD

Show all 36 specs

Product Family	Pure Networking
Network (RJ-45)	Yes

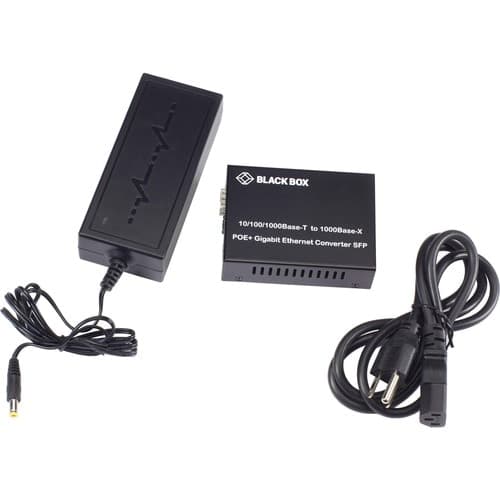

Package Contents	<ul> <li>Pure Networking Transceiver/Media Converter</li> <li>1 x 48-VDC Power Supply</li> <li>1 x Power Cord</li> </ul>
Country of Origin	China
Packaged Quantity	1
Power Consumption	33 W
Network Technology	1000Base-T
Ethernet Technology	Gigabit Ethernet
Expansion Slot Type	SFP (mini-GBIC)
Number of SFP Slots	1
Plug/Connector Type	C13/C14
Fiber Mode Supported	Single-mode
Media Type Supported	Twisted Pair
Weight (Approximate)	11.20 oz
Total Number of Ports	1
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE)
Environmentally Friendly	Yes
Manufacturer Part Number	LGC215A-R2
Maximum Distance Supported	0.10 km
Manufacturer Website Address	http://www.blackbox.com
Number of PoE+ (RJ-45) Ports	1
Additional Warranty Information	45 Day Standard Returns Policy
Total Number of Expansion Slots	1
Fiber Optic Cable Core/Cladding Specification	50/125 µm
