EATON

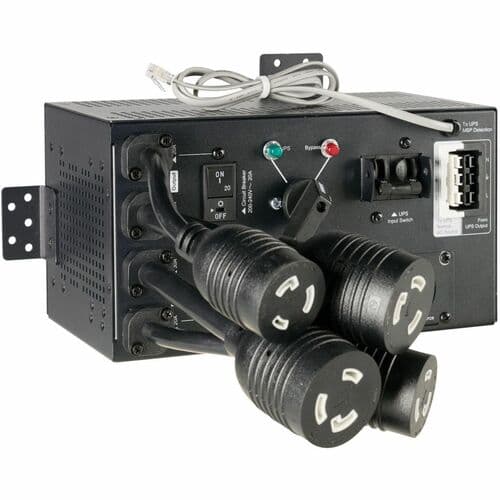

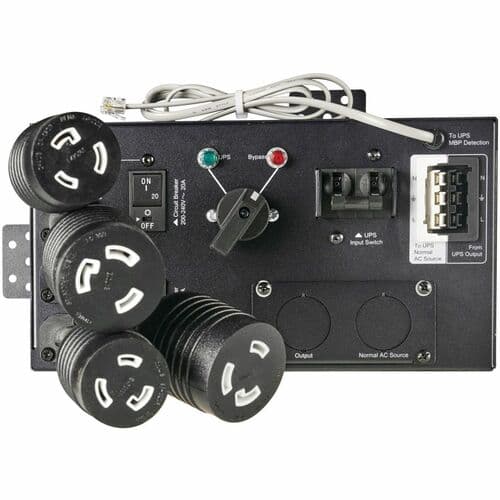

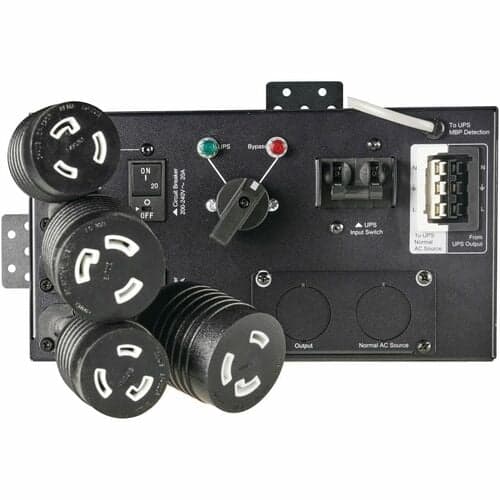

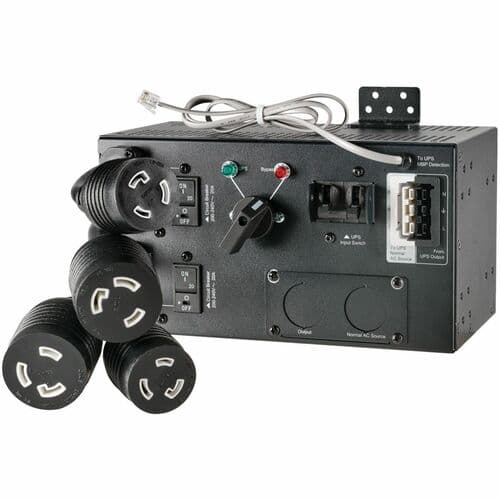

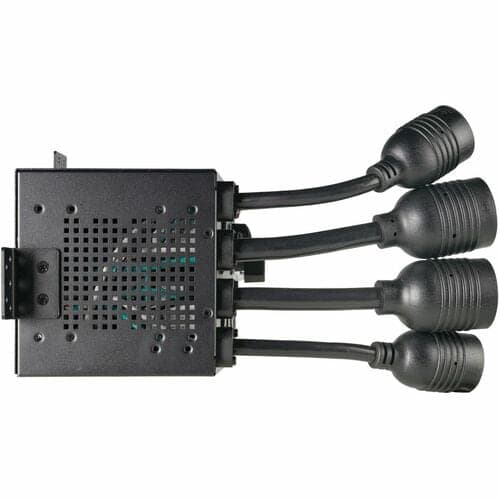

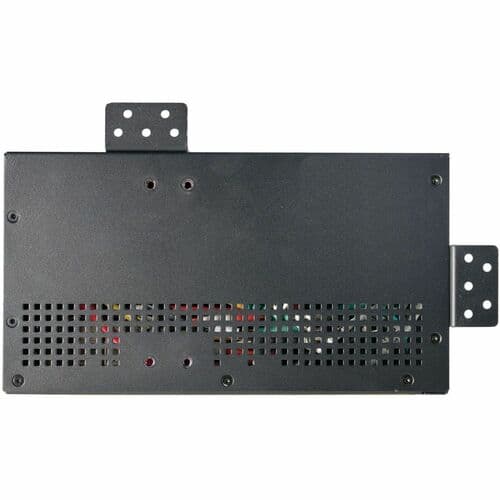

MAINT BYPASS SELECT 3KVA 6KVA UPS HW 2 L6-20R AND 2 L6-30R 0URM
SKU: SN0865VPN: MBP6K208G2
MAINT BYPASS SELECT 3KVA 6KVA UPS HW 2 L6-20R AND 2 L6-30R 0URM
Key Features
- Isolates UPS from connected loads for maintenance without powering down equipment
- Designed for 0U rear rack mounting, tower or wall mounting using the included hardware
- Compatible with Eaton's 9PX5KG2, 9PX6KG2, 9PX6K-L and 9PX3K3UG2 UPS systems
- 3-year limited warranty
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview
Features | Compatible with Select Eaton 3kVA/5kVA/6kVA UPS Systems
The MBP6K208G2 works with Eaton's 9PX5KG2, 9PX6KG2, 9PX6K-L and 9PX3K3UG2 UPS systems. The bypass switch lets you service or replace the UPS system without powering down any equipment and risking costly downtime. Power passes directly from a power source to equipment when in bypass mode.
Versatile Connection and Installation Options
The MBP6K208G2 features hardwired input and output connections, as well as two NEMA L6-20R and two NEMA L6-30R outlets. You can mount the maintenance bypass to the rear of the UPS or extended battery module (EBM) without taking up additional rack space. You can also mount the bypass on the side or top of the rack, on a wall or adapt it for tower installation using the included hardware.
Tech Specs
| Depth | 4.9" |
|---|---|
| Width | 9.4" |
| Height | 5.1" |
| Brand Name | Eaton |
| Form Factor | Rackmount/Tower/Wall-mountable |
| Rack Height | 0U |
| Receptacles | 1 x Hardwired |
| Manufacturer | Eaton Corporation |
| Product Name | MBP6K208G2 Bypass Switch |
| Product Type | Bypass Switch |
| Compatibility | <p><strong>Eaton 9PX G2 UPS Systems:</strong></p><ul><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>9PX3K3UG2</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>9PX3K3UNTF5G2</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>9PX5KG2</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>9PX5KTF5G2</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>9PX6K-L</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>9PX6KG2</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>9PX6KTF5G2</li></ul> |
| Product Model | MBP6K208G2 |
Show all 22 specsShow fewer
| Output Voltage | 220 V AC |
|---|---|
| Package Contents | <ul><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>MBP6K208G2 Bypass Switch</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>Input/output UPS Cable Set</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>2 x Cable Glands</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>Mounting Hardware</li></ul> |
| Country of Origin | Philippines |
| Load Capacity (VA) | 6000 W |
| Plug/Connector Type | NEMA L6-30P |
| Load Capacity (Watt) | 6000 W |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Manufacturer Part Number | MBP6K208G2 |
| Certifications & Standards | <ul><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>cUL Listed</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>NOM (Mexico)</li></ul> |
| Manufacturer Website Address | http://www.eaton.com |
