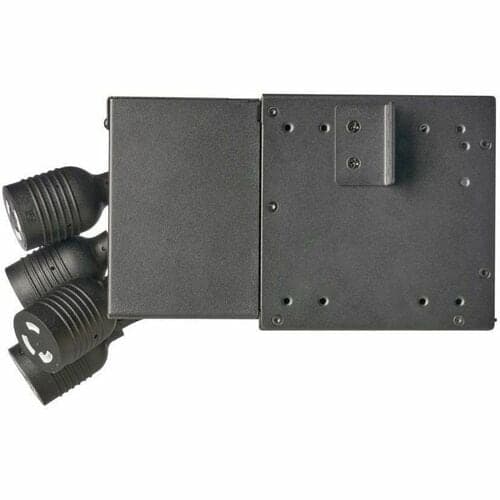

MAINT BYPASS 8KVA 11KVA G2 UPS HW INPUT/OUTPUT 4 L6-30R OUT 0URM

SKU: SN0856VPN: MBP11K208G2

In Stock

$1,466.40$869.32

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

Isolates UPS from connected loads for maintenance without powering down equipment
Designed for 0U rear rack mounting, tower or wall mounting using the included hardware
Compatible with Eaton's 8kVA to 11kVA 9PX G2 UPS systems
3-year limited warranty

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

Features | Compatible with Select Eaton 8kVA/11kVA 9PX G2 UPS Systems

The MBP11K208G2 works with Eaton's 9PX8KG2, 9PX8KTF5G2, 9PX11KG2, 9PX11KTF11G2 and 9PX11KTF5G2 UPS systems. The bypass switch lets you service or replace the UPS system without powering down any equipment and risking costly downtime. Power passes directly from a power source to equipment when in bypass mode.

Versatile Connection and Installation Options

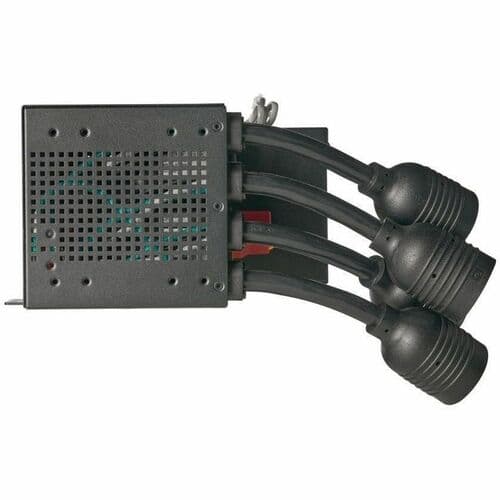

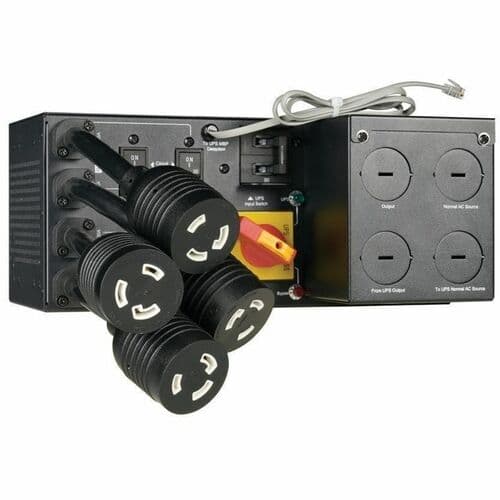

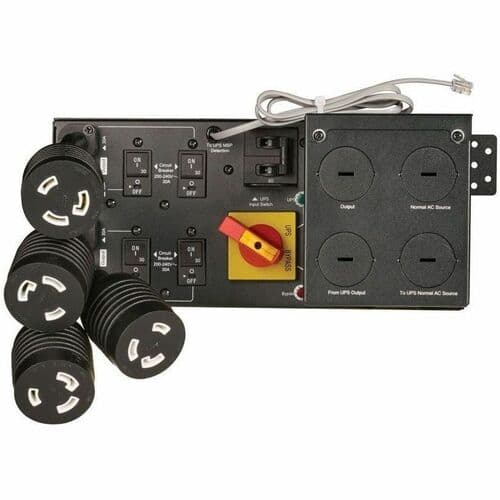

The MBP11K208G2 features hardwired input and output connections, as well as four NEMA L6-30R outlets. You can mount the maintenance bypass to the rear of the UPS or extended battery module (EBM) without taking up additional rack space. You can also mount the bypass on the side or top of the rack, on a wall or adapt it for tower installation using the included hardware.

Tech Specs

MAINT BYPASS 8KVA 11KVA G2 UPS HW INPUT/OUTPUT 4 L6-30R OUT 0URM specifications
Depth	5.1"
Width	11.2"
Height	5.1"
Brand Name	Eaton
Form Factor	Rackmount/Tower/Wall-mountable
Rack Height	0U
Receptacles	4 x NEMA L6-30R
Manufacturer	Eaton Corporation
Product Name	MBP11K208G2 Bypass Switch
Product Type	Bypass Switch
Compatibility	<p><strong>Eaton 9PX G2 UPS Systems:</strong></p><ul><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>9PX8KG2</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>9PX8KTF5G2</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>9PX11KG2</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>9PX11KTF11G2 </li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>9PX11KTF5G2</li></ul>
Product Model	MBP11K208G2

Show all 22 specs

Output Voltage	208 V AC
Package Contents	<ul><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>MBP11K208G2 Bypass Switch</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>2 x Input/output Covers</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>Input/output Cover Fixation Kit</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>2 x Conduits for UPS Input/output Connection</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>4 x Conduit Fittings</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>Mounting Hardware</li></ul>
Country of Origin	Philippines
Load Capacity (VA)	11 kW
Plug/Connector Type	Hardwired
Load Capacity (Watt)	11 kW
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Manufacturer Part Number	MBP11K208G2
Certifications & Standards	<ul><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>cUL Listed</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>NOM (Mexico)</li></ul>
Manufacturer Website Address	http://www.eaton.com
