SIIG
IPCOLOR 4K HDMI 2.0 EXTENDER DAISY CHAIN TRANSCEIVER
$81.37
California Proposition 65 Warning
Reproductive
IPCOLOR 4K HDMI 2.0 EXTENDER WITH IR HDR & ARC
SKU: 8UK731VPN: CE-H26L11-S1
IPCOLOR 4K HDMI 2.0 EXTENDER WITH IR HDR & ARC
Key Features
- Video Extender Transmitter provides efficient and feasible audio/video transmission, decoding, and extending
- 3840 x 2160 maximum video resolution for stunning, lively result with optimal viewing usability
- HDMI in allows convenient transfer of content and data to video extender transmitter to ensure maximum dependability
- HDMI out enables you to transfer data from your devices to video extender transmitter with added efficiency
- Twisted pair media type is very easy to connect and can carry both analog and digital data at the same time for maximum connection efficiency
- 1 input devices supported to better accommodate your specific requirements
- 230 ft maximum operating distance for feasible operation and optimal coverage
- 4K UHD graphics mode for stunning, lively video quality
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview

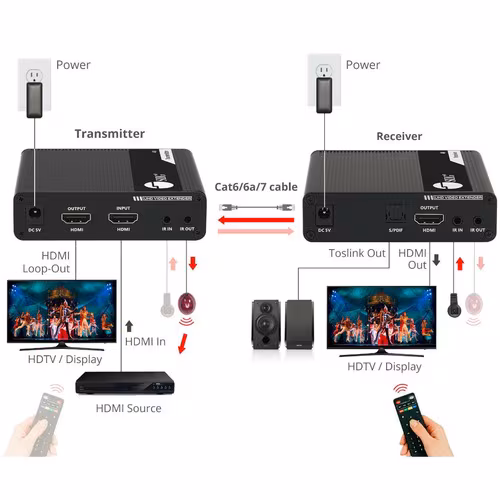

Extends 4K@60Hz HDMI signals up to 230ft with zero latency, IR, HDR, audio extraction, local HDMI out, and ARC using industry leading ipcolor video transmission technology

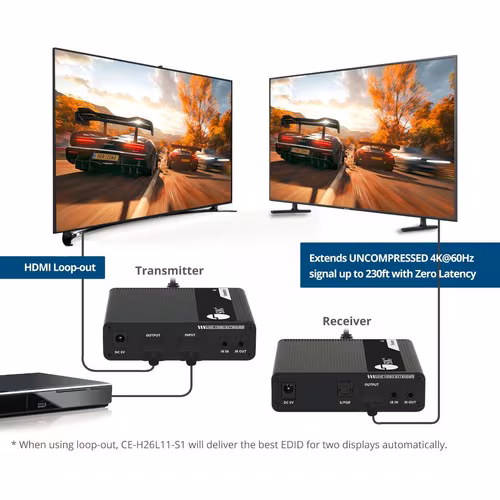

- 4K HDMI Extension - Extends UHD 4K@60Hz HDMI signals up to 230ft/70m from a source device to an HDMI display via Cat6/6a/7 cable
- Advanced ipcolor Transmission Technology - ipcolor is a global leading innovative technology for ultra high definition video digital transmission and connectivity, it can extend and transmit uncompressed 4K@60Hz YUV 4:4:4 video + audio, including HDR, with zero latency

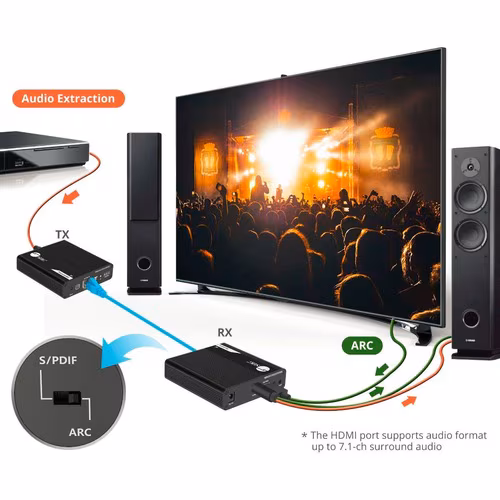

- Audio Extraction - Extracts digital audio from the HDMI signal and routes it through the receiver's digital S/PDIF port via PCM2, Dolby 5.1, DTS 5.1 audio signal
- IR Control - Built-in bi-directional IR provides full remote control capabilities, control the HDMI source device at the remote display location and vice versa
- Auto EDID and Downscaling - The lowest EDID capability of the connected display(s) controls the resolution output to the display(s)
- Protection - Lightning Protection, Surge Protection, ESD Protection
- High Quality Design - High quality metal housing with ventilation panels improve heat dissipation and ensure system stability during long hours of operation
- Easy Installation - Plug and play installation, no driver installation required
Tech Specs
| HDMI In | Yes |
|---|---|
| HDMI Out | Yes |
| Brand Name | SIIG |
| Manufacturer | SIIG, Inc |
| Product Name | ipcolor 4K HDMI 2.0 Extender with IR, HDR and ARC |
| Product Type | Video Extender Transmitter |
| Product Color | Black |
| Graphics Modes | 4K UHD |
| Network (RJ-45) | Yes |
| Package Contents | <ul> <li>ipcolor 4K HDMI 2.0 Extender with IR, HDR and ARC</li> <li>2 x Power Adapter</li> <li>1 x IR Blaster Cable</li> <li>1 x IR Receiver Cable</li> <li>8 x Mounting Ears and installation hardware</li> <li>User Manual</li> </ul> |
| Country of Origin | China |

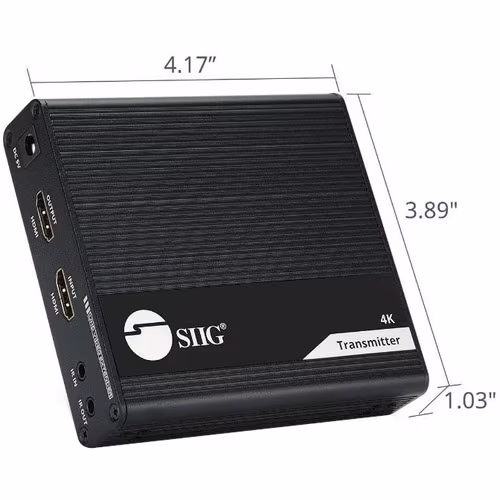

| Transmitter Depth | 4.17" |
Show all 28 specsShow fewer
| Transmitter Width | 3.90" |
|---|---|
| Transmitter Height | 1.03" |
| Media Type Supported | Twisted Pair |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 1 |
| Connectivity Technology | Wired |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmentally Friendly | Yes |
| Manufacturer Part Number | CE-H26L11-S1 |
| Maximum Video Resolution | 3840 x 2160 |
| Maximum Operating Distance | 230 ft |
| Twisted Pair Cable Standard | Category 7 |
| Manufacturer Website Address | http://www.siig.com |
| Number of Network (RJ-45) Ports | 1 |
| Transmitter Weight (Approximate) | 7.36 oz |
| Number of Input Devices Supported | 1 |
