IPCOLOR 4K HDMI 2.0 EXTENDER DAISY CHAIN TRANSMISSION KIT

SKU: 8UK732VPN: CE-H26M11-S1

In Stock

$189.99$141.39

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

IPCOLOR 4K HDMI 2.0 EXTENDER DAISY CHAIN TRANSMISSION KIT Overview

Extends 4K@60Hz HDMI signals up to 230ft with zero latency, IR, HDR, audio extraction, local HDMI out, and ARC using industry leading ipcolor video transmission technology; supports daisy chaining of additional Transceivers, part# CE-H26N11-S1, sold separately, for additional extension and displays

Features

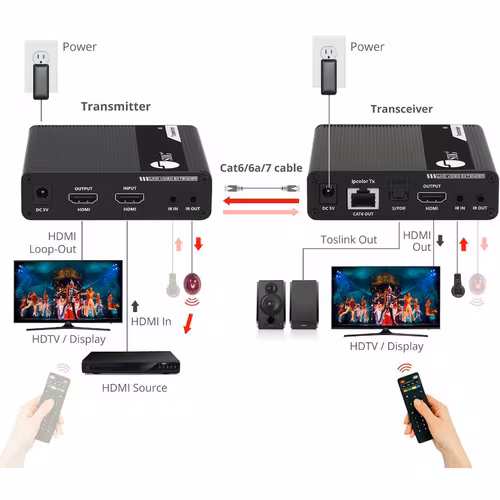

4K HDMI Extension - Extends UHD 4K@60Hz HDMI signals up to 230ft/70m from a source device to an HDMI display via Cat6/6a/7 cable
Advanced ipcolor Transmission Technology - ipcolor is a global leading innovative technology for ultra high definition video digital transmission and connectivity, it can extend and transmit uncompressed 4K@60Hz YUV 4:4:4 video + audio, including HDR, with zero latency

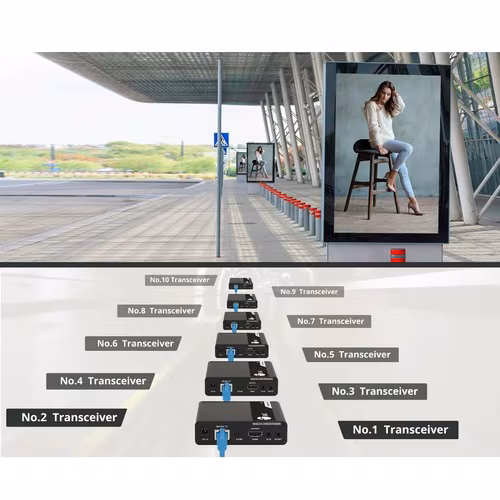

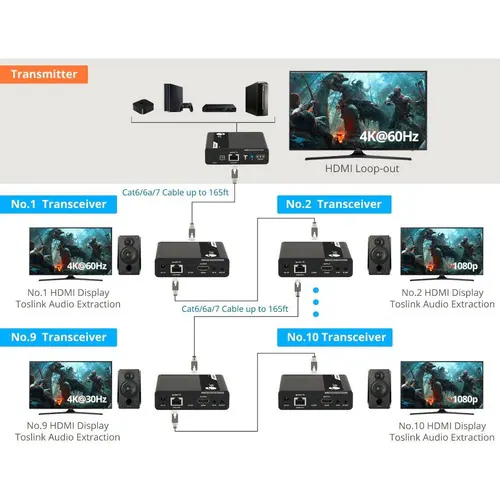

Multiple Transceiver Extension - Supports daisy chain up to 10 transceivers to further extend HDMI signal up to 165ft to each transceiver
Note: Additional Transceivers, part# CE-H26N11-S1, sold separately
Audio Extraction - Extracts digital audio from the HDMI signal and routes it through the transceiver's digital Toslink port, supports PCM, Dolby 5.1, DTS 5.1 audio output signal

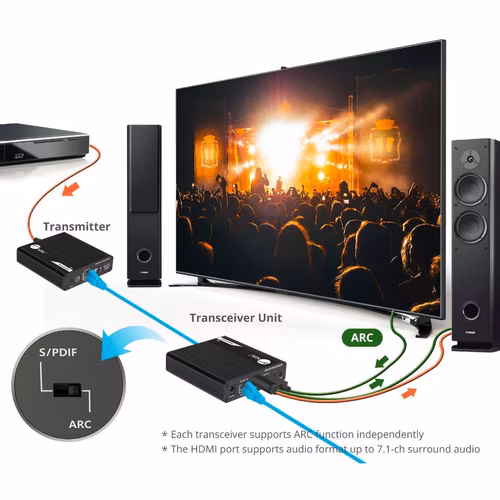

ARC - Connects through the Toslink optical port of the transceiver to the display's ARC sink
IR Control - Built-in bi-directional IR provides full remote control capabilities, control the HDMI source device at the remote display location and vice versa, IR blaster and receiver cables included

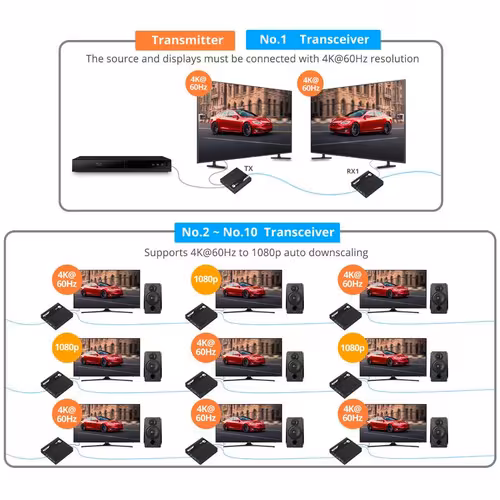

Auto EDID and Downscaling - The lowest EDID capability of the connected display(s) controls the resolution output to the display(s)
Protection - Lightning Protection, Surge Protection, ESD Protection
High Quality Design - High quality metal housing with ventilation panels improve heat dissipation and ensure system stability during long hours of operation
Easy Installation - Plug and play installation, no driver installation required

IPCOLOR 4K HDMI 2.0 EXTENDER DAISY CHAIN TRANSMISSION KIT Tech Specs

IPCOLOR 4K HDMI 2.0 EXTENDER DAISY CHAIN TRANSMISSION KIT specifications
Brand Name	SIIG
Dimensions	<ul><li>1.03" Height x 3.9" Width x 4.17" Length - Transmitting unit (TX)</li><li>1.03" Height x 3.9" Width x 4.17" Length - Transceiver unit (RX)</li></ul>
Manufacturer	SIIG, Inc
Product Name	ipcolor 4K HDMI 2.0 Extender Daisy Chain Transmission Kit - 230ft
Product Type	Daisy Chain Kit
Product Color	Black

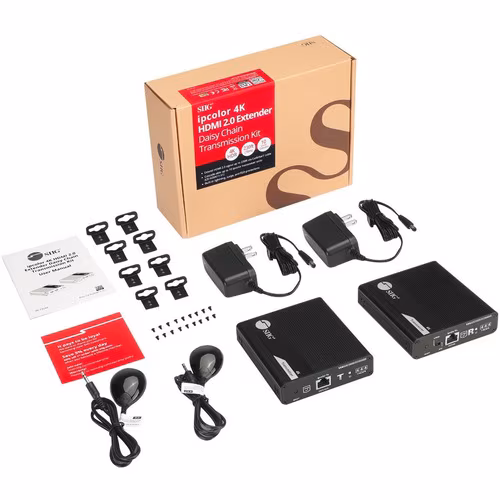

Package Contents	<ul> <li>ipcolor 4K HDMI 2.0 Extender Daisy Chain Transmission Kit (1 Transmitter + 1 Transceiver)</li> <li>2 x Power adapter </li> <li>1 x IR Blaster cable </li> <li>1 x IR Receiver cable </li> <li>8 x Mounting ears </li> <li>Hardware kit</li> <li>User Manual</li> </ul>
Product Material	Aluminum
Country of Origin	China
Weight (Approximate)	<ul><li>0.46lb - Transmitting unit (TX)</li><li>0.46lb - Transceiver unit (RX)</li></ul>
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmentally Friendly	Yes
