HDMI CAT5/6 EXTENDER KIT SERIAL IR CONTROL 4KX2K 328FT RANGE

SKU: QZ7254VPN: B126-1A1SR

In Stock

$462.59

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

Extends a 3840 x 2160 (4K x 2K) signal up to 328 ft. (100 m)
Supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD
Controls RS-232 serial devices at baud rates up to 115 Kbps
Works with all operating systems and HDMI video sources
Plug and play-no software or drivers to install

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

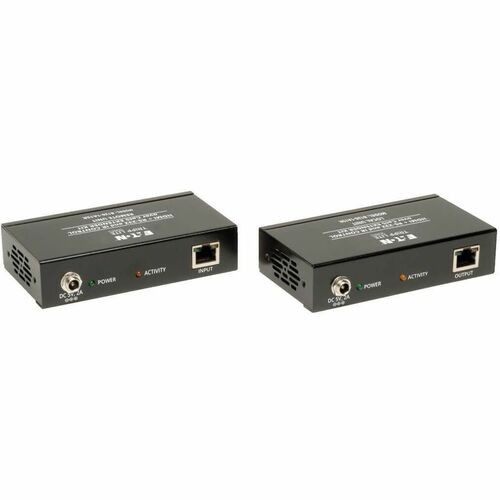

Extender kit features a transmitter unit and a receiver unit to extend your HDMI audio and video when the source is located farther than conventional cables allow. Plug-and-play technology makes installation quick and simple - with no software or drivers to install. You can extend a 3840 x 2160 (4K x 2K) Ultra High Definition (UHD) signal at 24/30Hz up to 328' with a single Cat6a cable, up to 230' with a 24 AWG solid-wire Cat6 cable, and up to 150' with a 26 AWG solid-wire Cat5e cable (N001- and N002-Series). For extending computer video resolutions of 1920 x 1200 at 60 Hz or high-definition video resolutions of 1080p at 60 Hz up to 328', use a single 24 AWG solid-wire Cat5e/6 cable. You can also control RS-232 serial devices, such as touch-screen displays or scanners, at baud rates up to 115 Kbps. Kit supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD audio, as well as 3D video and HDCP.

Tech Specs

HDMI CAT5/6 EXTENDER KIT SERIAL IR CONTROL 4KX2K 328FT RANGE specifications
HDMI In	Yes
HDMI Out	Yes
Brand Name	Tripp Lite series
Form Factor	Wall Mountable
Serial Port	Yes
Color Family	Black
Manufacturer	Eaton Corporation
Product Name	HDMI + IR + Serial RS232 over Cat5 / 6 Active Extender Kit
Product Type	Video Extender Transmitter/Receiver
Input Voltage	110 V AC
Product Color	Black
Product Model	B126-1A1SR

Show all 36 specs

TAA Compliant	Yes
Graphics Modes	4K
Receiver Depth	11.30"
Receiver Width	6.20"
Network (RJ-45)	Yes
Receiver Height	2"
Package Contents	<ul><li>Local Transmitter and Remote Receiver Units</li><li>2 x Sets of IR-IN Cables</li><li>2 x Sets of IR-OUT Cables</li><li>3.5 mm Male-to-DB9-Female Adapter Cable</li><li>3.5 mm Male-to-DB9-Male Adapter Cable</li><li>2 x Sets of External Power Supplies (Input: 100-240V, 50/60 Hz, 0.5A Output: 5V, 2A)</li><li>2 x Sets of Mounting Hardware Kits</li><li>Owner's Manual</li></ul>
Country of Origin	Taiwan
Packaged Quantity	1 Each
Transmitter Depth	11.30"
Transmitter Width	6.20"
Transmitter Height	2"
Number of HDMI Inputs	1
Number of HDMI Outputs	1
Connectivity Technology	Wired
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Manufacturer Part Number	B126-1A1SR
Maximum Video Resolution	3840 x 2160
Certifications & Standards	<p>TAA</p>
Maximum Operating Distance	328 ft
Twisted Pair Cable Standard	Category 6
Manufacturer Website Address	http://www.eaton.com
Additional Warranty Information	<p>1 year limited warranty</p>
Number of Network (RJ-45) Ports	2
