VERTIV-1 PHASE UPS
GXT5-5KL630RT3UXLN UPS UL
SKU: Z29520VPN: GXT5-5KL630RT3UXLN

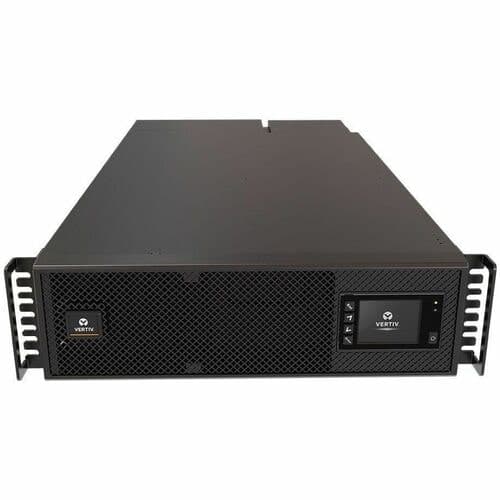

GXT5-5KL630RT3UXLN UPS UL
Key Features
- 3kVA - 20kVA Rack/Tower form factor
- Online double conversion topology with pure sinewave output and zero transfer time
- User-replaceable, hot-swappable internal and external batteries
- Intellislot™ management card options (network card pre-installed in 5-20kVA units)
- Individual programmable outlets
- Free Power Assist™, Power Insight™ software
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview
The Vertiv™ Liebert® GXT5 Online Double Conversion UPS family offers the highest level of power conditioning and power protection for critical business IT systems. Continuous power conditioning, zero transfer time, pure sinewave output, and scalable runtime make it ideally suited to protect critical infrastructure in both centralized and edge network applications.
Tech Specs
| USB | Yes |
|---|---|
| Alarm | Alarm |
| Phase | Single Phase |
| Display | LCD |
| EPO Port | Yes |
| Features | Built-in Bypass Switch |
| Brand Name | Vertiv Liebert |
| Energy Star | Yes |
| Form Factor | Rack/Tower |
| Serial Port | Yes |
| Manufacturer | Vertiv |
| Product Name | GXT5-5KL630RT3UXLN 4900VA Rack/Tower UPS |
Show all 45 specsShow fewer
| Product Type | Double Conversion Online UPS |
|---|---|
| Hot Swappable | Yes |
| Input Voltage | 230 V AC |
| Product Model | GXT5-5KL630RT3UXLN |
| Waveform Type | Pure Sine Wave |
| Output Voltage | 200 V AC |
| Product Family | GXT5 |
| Product Series | GXT5 |
| Circuit Breaker | Yes |
| Receptacle Type | NEMA L6-30R |
| Application/Usage | Education |
| Battery Chemistry | Sealed Lead Acid (VRLA) |
| Efficiency Detail | 98% (ECO Mode) |
| Receptacle Detail | 2 x NEMA L6-30R |
| Status Indicators | <p><b>LCD Display:</b></p><ul><li>UPS status</li><li>Power metrics</li><li>Configuration options</li><li>Alarms</li><li>Fault codes to manage the UPS</li></ul> |
| Surge Suppression | Yes |
| Load Capacity (VA) | 4900 VA |
| Network Management | SNMP/Webcard |
| Input Voltage Range | 175 V AC - 280 V AC |
| Output Power Factor | 0.9 |
| Overload Protection | Yes |
| Plug/Connector Type | NEMA L6-30P |
| Replaceable Battery | Yes |
| Load Capacity (Watt) | 4600 W |
| Battery Characteristics | External Battery System |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2 |
| Manufacturer Part Number | GXT5-5KL630RT3UXLN |
| Certifications & Standards | <ul><li>UL1778</li><li>c-UL listed</li></ul> |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| Additional Warranty Information | <p>3-year warranty Complete coverage on UPS including batteries.</p> |
| Energy Efficiency Certification | ENERGY STAR 2.0 |
Datasheets & Resources
