VERTIV-1 PHASE UPS

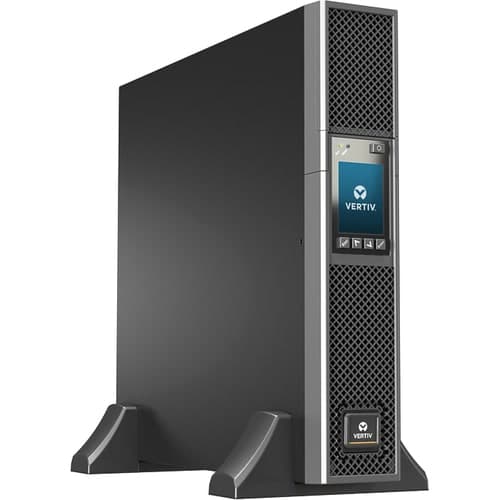

GXT5 3000VA UPS LIEBERT GXT5 3000 2700W RT 120V

SKU: 6QL395VPN: GXT5-3000LVRT2UXL

GXT5 3000VA UPS LIEBERT GXT5 3000 2700W RT 120V

Key Features

  • Reliable, easy-to-manage power protection and battery backup with 3000VA (2700W) capacity.
  • Highest power factor available on standard input connections.
  • Four individual programmable output receptacle for device control and management for optimum battery usage.
  • Its user-friendly interface includes color graphic display with gravity sensing feature.
  • It is 2019 ENERGY STAR® 2.0 certified and has higher operating efficiency in standard and eco-mode.
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

The Vertiv Liebert GXT5 UPS, with a capacity of 3000VA/2700W, is a 2U compact and efficient UPS solution for ensuring the health and availability of IT infrastructure. With online, double conversion technology, the Vertiv Liebert GXT5 UPS protects critical equipment against outages and every type of power disturbance without drawing on battery power, extending battery life and minimizing replacements. This can support as wide range of power environment including 110/115/120/125V AC power and has scalable runtime options with matching external battery cabinets to offer extra time during an outage to support critical equipment and activity. The UPS design includes hot-swappable batteries and all hardware for installing it as a tower or in an equipment rack. This single-phase UPS is ENERGY STAR® 2.0 certified and offers leading normal mode power efficiency and Eco-mode for ultimate efficiency levels. The unit includes a rack mounting hardware kit and base for tower installation in open environments. It has a three-year factory warranty. The Vertiv Liebert GXT5 offers premium power protection for critical infrastructure in centralized and edge applications.

Tech Specs

GXT5 3000VA UPS LIEBERT GXT5 3000 2700W RT 120V specifications
VGANo
Depth21.3"
PhaseSingle Phase
Width16.9"
Height3.4"
EPO PortYes
Brand NameVertiv Liebert
Cord Length10 ft
Energy StarYes
Form FactorRack/Tower
Rack Height2U
Serial PortYes
Show all 69 specs
Battery Life5 Year
Battery Size12V
Color FamilyBlack
ManufacturerVertiv
Product NameGXT5 3000VA 120V UPS
Product TypeDouble Conversion Online UPS
Hot PluggableYes
Hot SwappableYes
Input Current24 A
Input Voltage120 V AC
Modem (RJ-11)No
Product ColorBlack
TAA CompliantNo
Transfer Time0 ns
Waveform TypeSine Wave
Output Current25 A
Output Voltage120 V AC
Product FamilyGXT
Product SeriesGXT
Circuit BreakerYes
Input Frequency70 Hz
Receptacle TypeNEMA 5-20R
Package Contents<ul> <li>GXT5 3000VA 120V UPS</li> <li>4 Post Rack Mounting</li> <li>Tower Stand</li> <li>USB Cable</li> <li>User Guide</li> <li>Safety Instruction Manual</li> </ul>
Application/UsageIT Equipment
Assembly RequiredNo
Battery ChemistryLead Acid
Country of OriginChina
Receptacle Detail6 x NEMA 5-20R
Software IncludedPower Insight 2.2
Status IndicatorsColor LCD
Load Capacity (VA)3000 VA
Emergency Power OFFYes
Input Voltage Range60 V AC - 150 V AC
Number of Batteries3
Plug/Connector TypeNEMA L5-30P
Load Capacity (Watt)2700 W
Weight (Approximate)66 lb
Environmental SensorsLeak Detection Sensor
Additional Information<ul> <li>Operating Temperature,°F (°C):+32 to +104 (0 to 40)</li> <li>Storage Temperature,°F (°C ):-4 to +140 (-20 to 60) contain batteries will be from -15 to 40°C.</li> <li>Relative Humidity:0% to 95%, non-condensing</li> <li>Audible Noise:</li> <ul> <li><48dBA max @ 3 ft. (1m) front and sides</li> <li><48dBA, at 3 ft. (1m) rear</li> </ul> </ul>
User Selectable Output<p><b>Typical 120V User Selectable Output: </b>110/115/120VAC (user-configurable); ±3%</p>
Battery CharacteristicsValve-regulated, Non-spillable
Environmental ComplianceWaste Electrical and Electronic Equipment Directive (WEEE)
Environmentally FriendlyYes
Manufacturer Part NumberGXT5-3000LVRT2UXL
USB (HID Compliant) PortYes
Maximum Storage Elevation49212.60 ft
Certifications & Standards<ul> <li>UL1778, 4th Ed.</li> <li>FCC Part 15 Class A</li> <li>ANSI C62.41 Cat. B</li> <li>ISTA 1A</li> </ul>
Utility (AC) Mode Overload<ul> <li>>200% for 250ms</li> <li>150- 200% for 2 seconds</li> <li>125- 150% for 10 seconds</li> <li>105-125% for 15 seconds</li> </ul>
Backup/Run Time (Full Load)3 Minute
Backup/Run Time (Half Load)9 Minute
Maximum Operating Elevation9842.52 ft
Manufacturer Website Addresshttp://www.vertiv.com/
Maximum Operating Temperature104°F (40°C)
Typical Battery Recharge Time3 Hour
Number of External Battery Cabinets1
Backup/Run Time With External Battery Cabinet (Full Load)17 Minute
Backup/Run Time With External Battery Cabinet (Half Load)43.50 Minute
