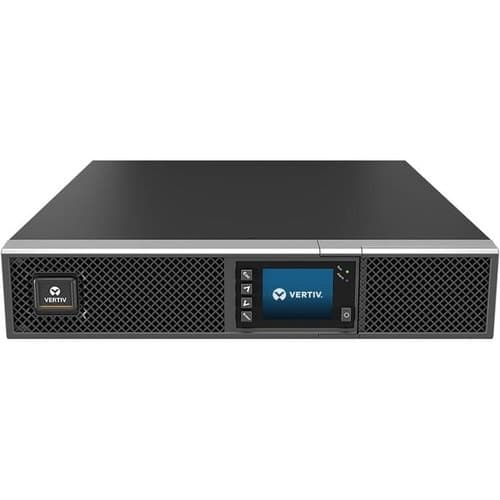

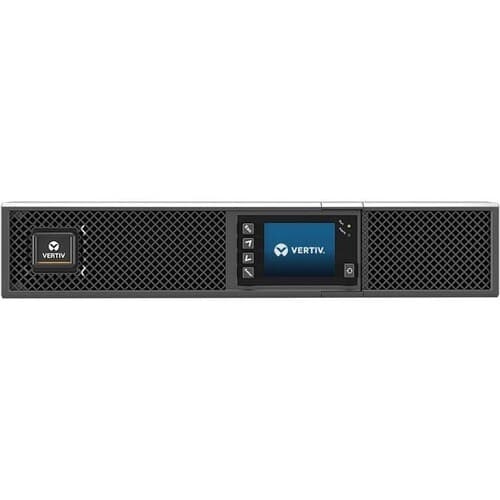

VERTIV-1 PHASE UPS

GXT5 2000VA 230V UPS 2000VA 2000W 230V C20 IN 8XC13

SKU: 7HF252VPN: GXT5-2000IRT2UXL

GXT5 2000VA 230V UPS 2000VA 2000W 230V C20 IN 8XC13

Key Features

  • Available in 750VA/1/1.5/2/3kVA
  • Top-level on-line double conversion UPS for mission-critical application
  • Unity output power factor
  • LCD multi-language color display (gravity sensing)
  • On-line (VFI) mode efficiency up to 94% at full load
  • Active ECO mode efficiency up to 98%
  • Energy Star 2.0 certified
  • Controllable and programmable output sockets
  • Integrated solution with batteries and electronics
  • External battery cabinets auto-detection
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

The Vertiv Liebert GXT5 UPS 2000VA/2000W is a 2U UPS solution for ensuring the health and availability of IT infrastructure. With online, double conversion technology, the UPS protects critical equipment against outages and every type of power disturbance without drawing on battery power, extending battery life and minimizing replacements. This can support a wide range of power environments including 200/208/220/230/240V user configurable AC power and has scalable runtime options with matching external battery cabinets to offer extra time during an outage to support critical equipment and activity. It includes hot-swappable batteries and all hardware for installing it as a tower or in an equipment rack. This single-phase UPS is ENERGY STAR® 2.0 certified and offers leading normal mode power efficiency and Eco-mode for ultimate efficiency levels. It comes with a 5-year warranty (3-year factory warranty plus 2-year extended warranty). This promotion is subject to the Distributor's product availability and is only available while product stocks last. Vertiv reserves the right to provide a 1-month notice to terminate the offer. This offer is not available in conjunction with any other offer/discount.

Tech Specs

GXT5 2000VA 230V UPS 2000VA 2000W 230V C20 IN 8XC13 specifications
VGANo
Depth18.5"
PhaseSingle Phase
Width16.9"
Height3.3"
Brand NameVertiv Liebert
Cord Length10 ft
Energy StarYes
Form FactorRack/Tower
Rack Height2U
Serial PortYes
Battery Life5 Year
Show all 64 specs
Battery Size12V
Color FamilyBlack
ManufacturerVertiv
Product NameGXT5 UPS - 2000VA/2000W 230V | Online Rack Tower
Product TypeDouble Conversion Online UPS
Hot PluggableYes
Hot SwappableYes
Input Voltage230 V AC
Modem (RJ-11)No
Product ColorBlack
Product ModelGXT5-2000IRT2UXL
TAA CompliantNo
Transfer Time0 ns
Waveform TypePure Sine Wave
Output Voltage200 V AC
Product FamilyGXT5
Product SeriesGXT5
Sound Emission48 dB
Circuit BreakerYes
Input Frequency70 Hz
Network (RJ-45)Yes
Protection TypeHigh/Low Voltage
Receptacle TypeIEC 60320 C13
Battery Capacity9000 mAh
Package Contents<ul> <li>GXT5 UPS - 2000VA/2000W 230V | Online Rack Tower</li> <li>4 Post Fixed Rail Kit and Tower Stand</li> <li>USB Cable</li> <li>Quick Start Guide</li> <li>Safety Instruction Manual</li> </ul>
Application/UsageCommercial
Battery ChemistryLead Acid
Country of OriginChina
DC System Voltage48 V DC
Product ConditionNew
Receptacle Detail8 x IEC 60320 C13
Software IncludedFree Download - Power Insight 2.2
Status Indicators<p>Color LCD</p>
Load Capacity (VA)2000 VA
Input Voltage Range115 V AC - 288 V AC
Number of Batteries3
Plug/Connector TypeIEC 60320 C20
Replaceable BatteryYes
Load Capacity (Watt)2000 W
Weight (Approximate)46.30 lb
Environmental SensorsLeak Detection Sensor
Battery CharacteristicsValve-regulated, Non-spillable
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Environmentally FriendlyYes
Manufacturer Part NumberGXT5-2000IRT2UXL
USB (HID Compliant) PortYes
Certifications & Standards<ul> <li>UL1778, 4th Ed.</li> <li>FCC Part 15 Class A</li> <li>ANSI C62.41 Cat. B</li> <li>ISTA 1A</li> </ul>

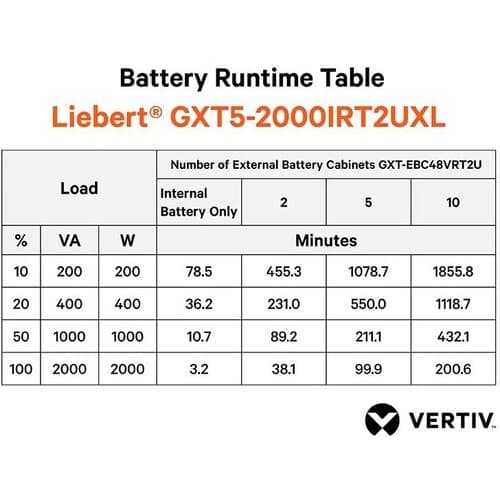

Backup/Run Time (Full Load)3.20 Minute
Backup/Run Time (Half Load)10.70 Minute
Manufacturer Website Addresshttp://www.vertiv.com/
Maximum Operating Temperature104°F (40°C)
Typical Battery Recharge Time4 Hour
