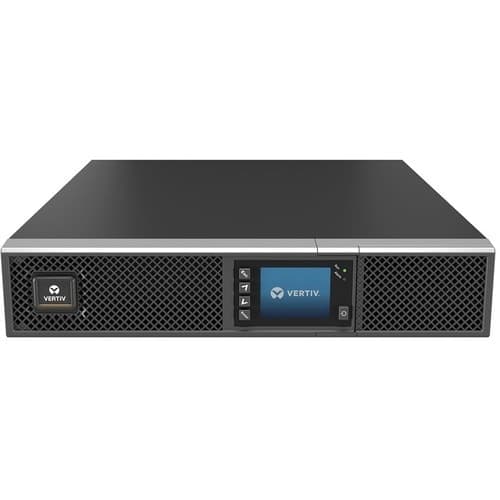

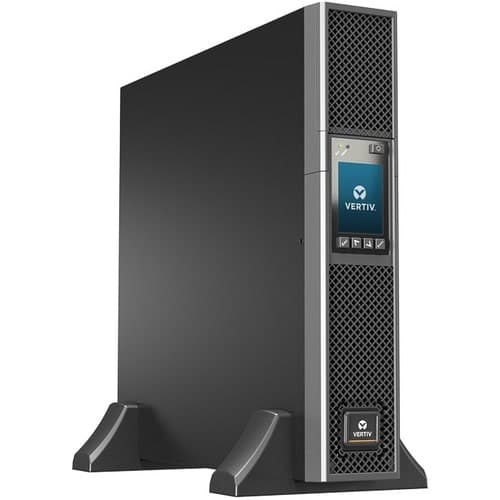

GXT5 1500VA UPS LIEBERT GXT5 1500 1350W RT 120V

SKU: 6QL393VPN: GXT5-1500LVRT2UXL

In Stock

$2,456.00$1,610.24

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

Reliable, easy-to-manage power protection and battery backup with 1500VA (1350W) capacity.
Highest power factor available on standard input connections.
Four individual programmable output receptacle for device control and management for optimum battery usage.
Its user-friendly interface includes color graphic display with gravity sensing feature.
It is 2019 ENERGY STAR® 2.0 certified and has higher operating efficiency in standard and eco-mode.

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

The Vertiv Liebert GXT5 UPS, with a capacity of 1500VA/1350W, is a 2U compact and efficient UPS solution for ensuring the health and availability of IT infrastructure. With online, double conversion technology, the Vertiv Liebert GXT5 UPS protects critical equipment against outages and every type of power disturbance without drawing on battery power, extending battery life and minimizing replacements. This can support as wide range of power environment including 110/115/120/125V AC power and has scalable runtime options with matching external battery cabinets to offer extra time during an outage to support critical equipment and activity. The UPS design includes hot-swappable batteries and all hardware for installing it as a tower or in an equipment rack. This single-phase UPS is ENERGY STAR® 2.0 certified and offers leading normal mode power efficiency and Eco-mode for ultimate efficiency levels. The unit includes a rack mounting hardware kit and base for tower installation in open environments. It has a three-year factory warranty. The Vertiv Liebert GXT5 offers premium power protection for critical infrastructure in centralized and edge applications.

Tech Specs

GXT5 1500VA UPS LIEBERT GXT5 1500 1350W RT 120V specifications
VGA	No
Depth	18.5"
Phase	Single Phase
Width	16.9"
Height	3.4"
EPO Port	Yes
Brand Name	Vertiv Liebert
Cord Length	10 ft
Energy Star	Yes
Form Factor	Rack/Tower
Rack Height	2U
Serial Port	Yes

Show all 69 specs

Battery Life	5 Year
Battery Size	12V
Color Family	Black
Manufacturer	Vertiv
Product Name	GXT5 1500VA 120V UPS
Product Type	Double Conversion Online UPS
Hot Pluggable	Yes
Hot Swappable	Yes
Input Current	12 A
Input Voltage	120 V AC
Modem (RJ-11)	No
Product Color	Black
TAA Compliant	No
Transfer Time	0 ns
Waveform Type	Pure Sine Wave
Output Current	1.50 A
Output Voltage	120 V AC
Product Family	GXT
Product Series	GXT
Circuit Breaker	Yes
Input Frequency	70 Hz
Receptacle Type	NEMA 5-15R
Package Contents	<ul> <li>GXT5 1500VA 120V UPS</li> <li>4 Post Rack Mounting</li> <li>Tower Stand</li> <li>USB Cable</li> <li>User Guide</li> <li>Safety Instruction Manual</li> </ul>
Application/Usage	Mission Critical Equipment
Assembly Required	No
Battery Chemistry	Lead Acid
Country of Origin	China
Receptacle Detail	6 x NEMA 5-15R
Software Included	Free Download - Power Insight 2.2
Status Indicators	Color LCD
Load Capacity (VA)	1500 VA
Emergency Power OFF	Yes
Input Voltage Range	60 V AC - 150 V AC
Number of Batteries	3
Plug/Connector Type	NEMA 5-15P
Load Capacity (Watt)	1350 W
Weight (Approximate)	46.20 lb
Environmental Sensors	Temperature Sensor
Additional Information	<ul> <li>Operating Temperature,°F (°C):+32 to +104 (0 to 40)</li> <li>Storage Temperature,°F (°C ):-4 to +140 (-20 to 60) contain batteries will be from -15 to 40°C.</li> <li>Relative Humidity:0% to 95%, non-condensing</li> <li>Audible Noise:</li> <ul> <li><46dBA max @ 3 ft. (1m) front and sides</li> <li>< 43dBA, at 3 ft. (1m) rear </li> </ul> </ul>
User Selectable Output	<p><b>Typical 120V User Selectable Output: </b>110/115/120VAC (user-configurable); ±3%</p>
Battery Characteristics	Valve-regulated, Non-spillable
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE)
Environmentally Friendly	Yes
Manufacturer Part Number	GXT5-1500LVRT2UXL
USB (HID Compliant) Port	Yes
Maximum Storage Elevation	49212.60 ft
Certifications & Standards	<ul> <li>UL1778, 4th Ed.</li> <li>FCC Part 15 Class A</li> <li>ANSI C62.41 Cat. B</li> <li>ISTA 1A</li> </ul>
Utility (AC) Mode Overload	<ul> <li>>200% for 250ms</li> <li>150- 200% for 2 seconds</li> <li>125- 150% for 50 seconds</li> <li>105-125% for 60 seconds</li> </ul>
Backup/Run Time (Full Load)	5 Minute
Backup/Run Time (Half Load)	13 Minute
Maximum Operating Elevation	9842.52 ft
Manufacturer Website Address	http://www.vertiv.com/
Maximum Operating Temperature	104°F (40°C)
Typical Battery Recharge Time	3 Hour
Number of External Battery Cabinets	1
Backup/Run Time With External Battery Cabinet (Full Load)	25 Minute
Backup/Run Time With External Battery Cabinet (Half Load)	59 Minute
