EPDU MA 38U-A L6-30P 24A 1P 20XC13 4XC19

SKU: XR9441VPN: EMA107-10

In Stock

$2,373.00$1,757.53

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

Enables on/off/reboot capabilities for a single piece of equipment with outlet-level control
Measures outlet-level power consumption and delivers Level 3 PUE to increase accuracy and precision of energy analysis
Single-phase and three-phase configurations provide solutions for SMB and networking closets, blade server applications, and colocation and large data centers
Manages entire environment remotely over the network from a single interface
ePDU G3 Managed provides ±1% billing grade accuracy, an advanced LCD pixel display, a hot-swap meter, IEC grip outlets, color-coded circuits and the ability to daisy chain four ePDUs to share the same network connection and IP address
Cisco EnergyWise Certified- Eaton's new ePDUs are Cisco EnergyWise Certified

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

Eaton ePDU G3 Managed technology provides a best-in-class design featuring billing grade accuracy monitoring at the outlet level on a local LCD pixel display or over a network connection. The high accuracy meter will measure current, voltage, power and energy for load balancing, capacity planning, efficiency monitoring and energy usage reporting. Outlet switching allows for on, off or reboot of individual outlets, which reduces the cost of managing remote or local IT data center environments. The robust design is UL rated to operate at 140 degrees F (60 degrees C) ambient operating temperature for containment and high temperature environments.

Outlet switching for on, off and reboot control to reduce management costs
Outlet level metering to +/- 1% billing grade accuracy for customer billing or level 3 PUE calculations
LCD pixel display with hot-swap capability enables load balancing and local setup of key parameters such as IP address and display orientation
High operating temperature (140 degrees F / 60 degrees C) for containment or hot network closet environments
Daisy chain of IP addresses allows four devices to share one network connection to reduce network install costs by up to 75%

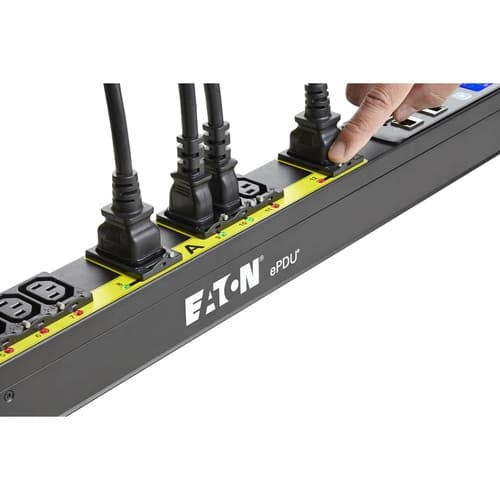

IEC outlet grip plug retention secures plugs in place using standard cables

Tech Specs

EPDU MA 38U-A L6-30P 24A 1P 20XC13 4XC19 specifications
Depth	2.1"
Width	2.1"
Height	66.5"
PDU Type	Switched
Brand Name	Eaton
Cord Length	10 ft
Rack Height	38U
Serial Port	Yes
Color Family	Black
Manufacturer	Eaton Corporation
Product Line	ePDU
Product Name	ePDU Managed EMA107-10 24-Outlets PDU

Show all 32 specs

Product Type	PDU
Input Current	24 A
Input Voltage	230 V AC
Product Color	Black
Product Model	EMA107-10
Output Voltage	230 V AC
Product Family	ePDU Managed
Product Series	Managed
Circuit Breaker	Yes
Network (RJ-45)	Yes
Receptacle Type	IEC 60320 C19
Country of Origin	China
Receptacle Detail	20 x IEC 60320 C13
Plug/Connector Type	NEMA L6-30P
Power Rating (Watt)	5760 W
Mounting Orientation	Vertical
Plug/Connector Detail	1 x NEMA L6-30P
Manufacturer Part Number	EMA107-10
Certifications & Standards	cUL
Manufacturer Website Address	http://www.eaton.com
