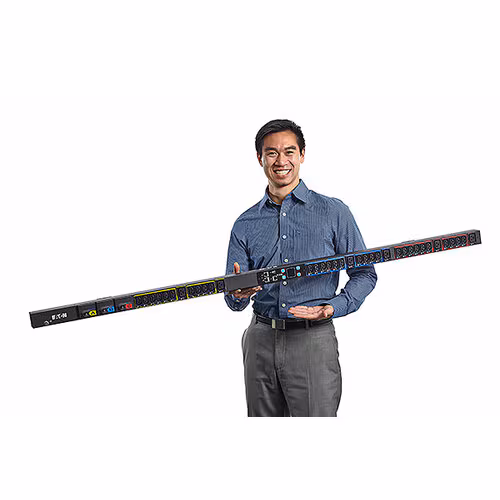

EPDU MA 36U-A L6-C30 16A 1P

SKU: ZQ3083VPN: EMA113-10

In Stock

$1,411.00$1,045.58

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

Enables on/off/reboot capabilities for a single piece of equipment with outlet-level control
Measures outlet-level power consumption and delivers Level 3 PUE to increase accuracy and precision of energy analysis
Single-phase and three-phase configurations provide solutions for SMB and networking closets, blade server applications, and colocation and large data centers
Manages entire environment remotely over the network from a single interface
ePDU G3 Managed provides ±1% billing grade accuracy, an advanced LCD pixel display, a hot-swap meter, IEC grip outlets, color-coded circuits and the ability to daisy chain four ePDUs to share the same network connection and IP address
Cisco EnergyWise Certified- Eaton's new ePDUs are Cisco EnergyWise Certified

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

Eaton ePDU G3 Managed technology provides a best-in-class design featuring billing grade accuracy monitoring at the outlet level on a local LCD pixel display or over a network connection. The high accuracy meter will measure current, voltage, power and energy for load balancing, capacity planning, efficiency monitoring and energy usage reporting. Outlet switching allows for on, off or reboot of individual outlets, which reduces the cost of managing remote or local IT data center environments. The robust design is UL rated to operate at 140 degrees F (60 degrees C) ambient operating temperature for containment and high temperature environments.

Outlet switching for on, off and reboot control to reduce management costs
Outlet level metering to +/- 1% billing grade accuracy for customer billing or level 3 PUE calculations
LCD pixel display with hot-swap capability enables load balancing and local setup of key parameters such as IP address and display orientation
High operating temperature (140 degrees F / 60 degrees C) for containment or hot network closet environments
Daisy chain of IP addresses allows four devices to share one network connection to reduce network install costs by up to 75%
120 volt power distribution to 5-20R outlets which accept standard 5-15P wall plug

Tech Specs

EPDU MA 36U-A L6-C30 16A 1P specifications
Depth	2.6"
Width	2.1"
Height	35.5"
PDU Type	Switched
Brand Name	Eaton
Rack Height	21U
Manufacturer	Eaton Corporation
Product Line	ePDU
Product Name	ePDU Managed 8-Outlet PDU
Product Type	PDU
Input Current	16 A
Input Voltage	120 V AC

Show all 24 specs

Product Family	ePDU Managed
Product Series	Managed
Network (RJ-45)	Yes
Receptacle Type	NEMA 5-20R
Country of Origin	China
Receptacle Detail	8 x NEMA 5-20R
Plug/Connector Type	NEMA L5-20P
Power Rating (Watt)	1920 W
Mounting Orientation	Vertical
Plug/Connector Detail	1 x NEMA 5-20P
Manufacturer Part Number	EMA113-10
Manufacturer Website Address	http://www.eaton.com
