EATON TRIPP LITE SERIES MASTER-POWE

COMPACT POWER INVERTER 600W 2X OUTLET USB CHARGING PURE SINE WAVE

SKU: 14FU17VPN: PINV600SW-120

COMPACT POWER INVERTER 600W 2X OUTLET USB CHARGING PURE SINE WAVE

Key Features

  • Provides pure sine wave power for mobile devices, including laptops and smartphones
  • Ideal for areas without power outlets, such as construction sites or mobile offices
  • NEMA 5-15R outlets deliver continuous output of 600W for powering devices
  • SB charging ports keep smartphones, tablets and laptops at full capacity
  • Rugged aluminum housing designed to withstand rigors of travel and outdoor use
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

Mobile Sine Wave Inverter Charges and Powers Multiple Electronic Devices in Your Vehicle

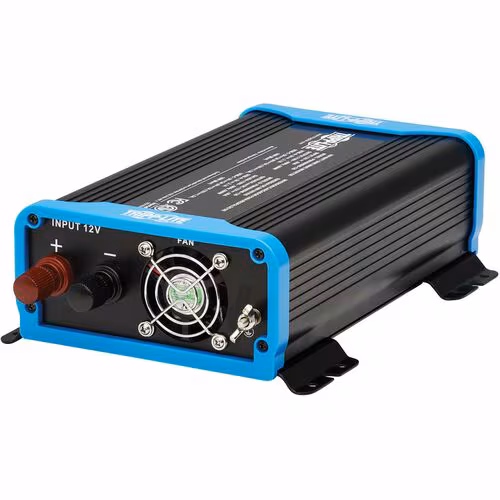

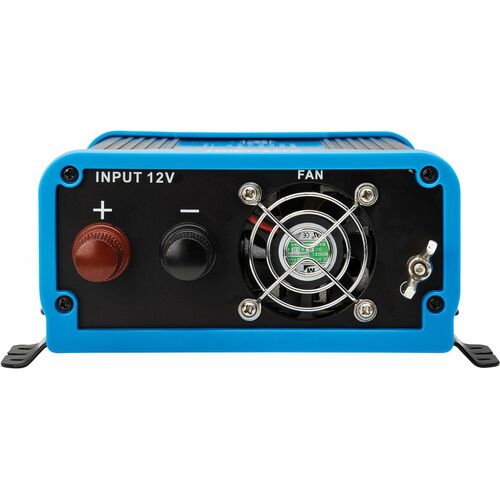

You don't have to be near an AC power source to keep your mobile devices fully charged and your power tools operating. This 600W mobile inverter converts 12V DC power from your car, utility truck, fleet vehicle, boat or RV's battery into pure sine wave 110V AC power. Just connect the included battery cables between the PINV600SW-120's DC input terminals and the positive and negative terminals on your vehicle's battery.

AC Outlets Provide Portable Power for Your Mobile Applications

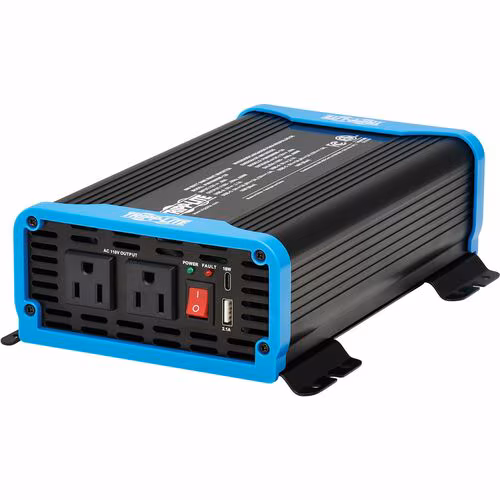

This compact power inverter provides pure sine wave AC output for use at remote locations, such as campgrounds, construction sites and mobile offices. Two NEMA 5-15R outlets provide a continuous output of 600W and a peak output of 1200W. That's plenty to operate a variety of appliances and power tools, such as low-power lights, telemetry equipment, smart battery rechargers for small battery-operated power tools, and mobile office equipment.

USB Charging Ports Keep Your Devices at Full Strength
A 5V USB-A port outputs DC power up to 2.1A. A USB-C port outputs 5V/9V/12V fast-charging up to 18W maximum. Both USB ports remain active when the inverter's on/off switch is set to Off. This allows you to charge your smartphone, tablet, laptop or GPS unit without draining too much power from the vehicle's battery.

Includes the Latest Safety Features to Protect Your Equipment and Battery
The on/off switch offers one-touch control over both AC outlets. If the power input from the vehicle's battery drops below 10V or exceeds 16V, the PINV600SW-120 will automatically shut down. Green and red LEDs indicate normal and improper operation. A load-controlled fan begins cooling automatically when the internal temperature rises to a certain level during extended use. An audible alarm sounds during excessively high/low voltage or fault conditions.

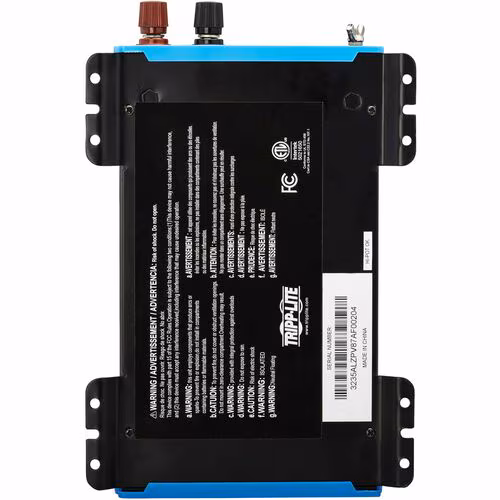

Brackets Included for Permanent Mounting
The durable aluminum housing withstands the rigors of worksites, construction sites, business trips and family vacations. Use the built-in mounting brackets and included hardware to permanently install the inverter in a horizontal position.

Tech Specs

COMPACT POWER INVERTER 600W 2X OUTLET USB CHARGING PURE SINE WAVE specifications
Depth12.1"
Width8.4"
Height4.4"
Brand NameTripp Lite series
Cord Length1.50 ft
Receptacles2 x NEMA 5-15R
Color FamilyDual Color
ManufacturerEaton Corporation
Power SourceBattery
Product Name600W Light-Duty Compact Power Inverter - 2x 5-15R, USB Charging, Pure Sine Wave
Product TypePower Inverter
Input Voltage12 V DC
Show all 27 specs
Product ColorBlue
Product ModelPINV600SW-120
Waveform TypePure Sine Wave
Output Voltage110 V AC
Peak Power Load1200 W
Protection TypeOverload Protection

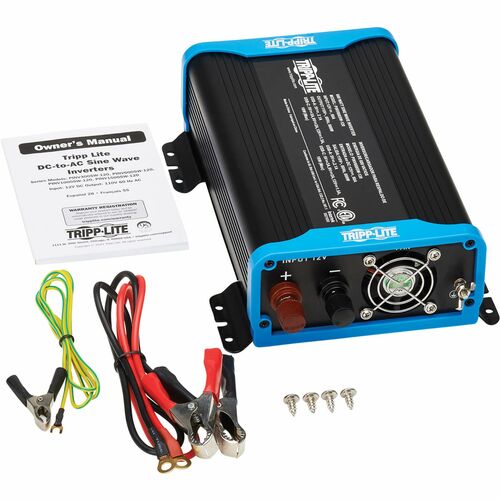

Package Contents<ul><li> 600W Light-Duty Compact Power Inverter - 2x 5- 15R, USB Charging, Pure Sine Wave</li><li> 2 x DC Battery Cables, 18 in. (45.7 cm)</li><li> Ground Wire with Clamp</li><li> Mounting Hardware</li><li> Owner's Manual</li></ul>
Country of OriginChina
Maximum Frequency60 Hz
Plug/Connector TypeNEMA 5-15R
Weight (Approximate)4.28 lb
Continuous Power Load600 W
Manufacturer Part NumberPINV600SW-120
Certifications & Standards<ul><li> CAN/CSA-C22.2 No. 107.1 (Canada)</li><li> UL 458</li><li> FCC (USA)</li></ul>
Manufacturer Website Addresshttp://www.eaton.com
