EATON TRIPP LITE SERIES PRO AV

BLK USB C ADAPTER DUAL-DISPLAY 4K 60HZ DISP PORT 8K HDR 4:4:4 BLK

SKU: 9UY439VPN: U444-2DP-MST4K6

BLK USB C ADAPTER DUAL-DISPLAY 4K 60HZ DISP PORT 8K HDR 4:4:4 BLK

Key Features

  • Converts audio/video signals from sources supporting USB-C DisplayPort Alt Mode
  • Plays 4K video on 2 displays simultaneously for multitasking and increasing productivity
  • Plays 8K video on one connected display for brilliant digital signage and presentations
  • Carries High Dynamic Range (HDR) signals for rich contrast and expanded color accuracy
  • Plug-and-play operation with no software required for easy, immediate installation
  • 3-year limited warranty
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

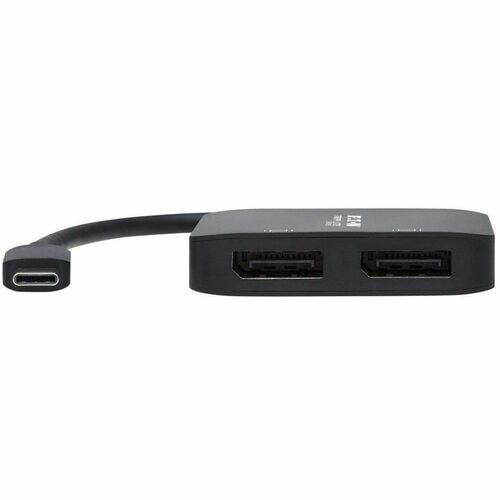

SB-C to DisplayPort Adapter Connects 8K or 4K DisplayPort Monitors to Your USB-C Device
This USB adapter connects one 8K or two 4K DisplayPort monitors, projectors and/or televisions to the USB-C or Thunderbolt 3 port on your MacBook Pro, Chromebook or Windows laptop. It's an ideal connector for creating video walls, giving video presentations in conference rooms and classrooms, editing multiple documents or high-definition video on a larger screen, or streaming video for digital signage in crystal-clear 8K or 4K.

Supports USB-C DisplayPort Alternate Mode for Converting Audio/Video Signals
By connecting the built-in USB-C cable to a source device that supports USB DisplayPort Alt Mode, you can output 8K/4K video and digital audio to DisplayPort monitors, televisions or projectors without installing special software drivers. Note: To achieve 8K/4K resolution, the source device should support DP 1.4 Alt Mode. When a monitor is connected to a DP 1.2 Alt Mode source, the corresponding resolution will be decreased due to bandwidth limitation.

DisplayPort SST and MST Modes Allow Connection of Multiple Displays
By connecting the USB-C adapter to a source that supports DisplayPort Single-Stream Transport (SST) or Multi-Stream Transport (MST) mode, you may connect up to two displays simultaneously. This allows you to display the same image on both monitors, extend your host desktop across both with different windows open on each, or combine both into one large display as a video wall, depending on your operating system.

Enjoy the Clarity of 8K/4K Video with HDR, 4:4:4 Color and 7.1-Channel Audio
This USB to DisplayPort adapter supports connection of one 8K/30 Hz monitor or two 4K/60 Hz monitors with 7.1-channel surround sound. High Dynamic Range (HDR) provides a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your display. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. This adapter also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.

Ready to Use Right from the Package, So You Can Plug and Play Immediately

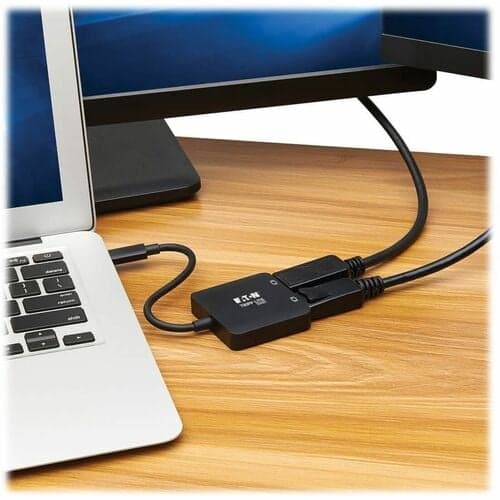

The adapter requires no software or external power. Just connect the USB-C cable to the USB-C or Thunderbolt 3 port on a source device that supports USB DisplayPort Alternate Mode, and connect the DisplayPort outputs to your displays with user-provided cables (such as Tripp Lite's P580-Series cables).

Tech Specs

BLK USB C ADAPTER DUAL-DISPLAY 4K 60HZ DISP PORT 8K HDR 4:4:4 BLK specifications
Depth2"
Width2.2"
Height0.5"
Length4.7"
FeaturesMulti-Stream Transport (MST) Support
Brand NameTripp Lite series
Adapter TypeDisplayPort/USB-C
Color FamilyBlack
ManufacturerEaton Corporation
Product NameU444-2DP-MST4K6 USB-C Adapter, Dual Display, Black
Product TypeA/V Adapter
Product ColorBlack
Show all 27 specs
Product ModelU444-2DP-MST4K6
Package Contents<ul> <li>U444-2DP-MST4K6 USB-C Adapter, Dual Display, Black</li> <li>Owner's Manual</li> </ul>
Product MaterialPolycarbonate
Connector PlatingNickel
Country of OriginVietnam
Weight (Approximate)1.41 oz
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Environmentally FriendlyYes
Manufacturer Part NumberU444-2DP-MST4K6

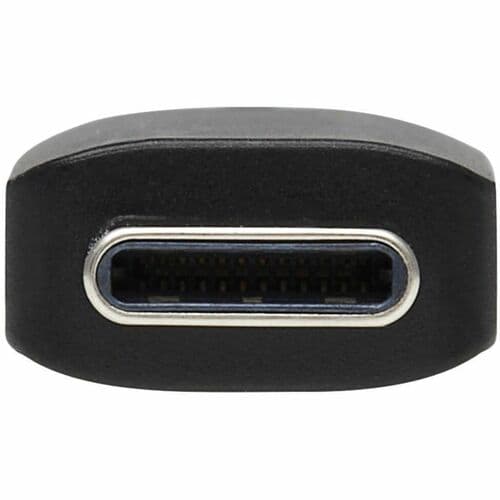

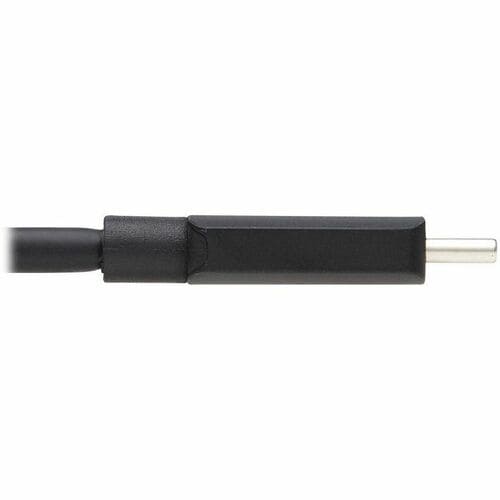

Connector Type on First EndUSB 3.1 (Gen 2) Type C - Male
Connector Type on Second EndDisplayPort 1.4 Digital Audio/Video - Female
Manufacturer Website Addresshttp://www.eaton.com
Maximum Resolution Supported7680 x 4320
Connector on First End Details1 x Type C USB 3.1 (Gen 2) Powered USB Male

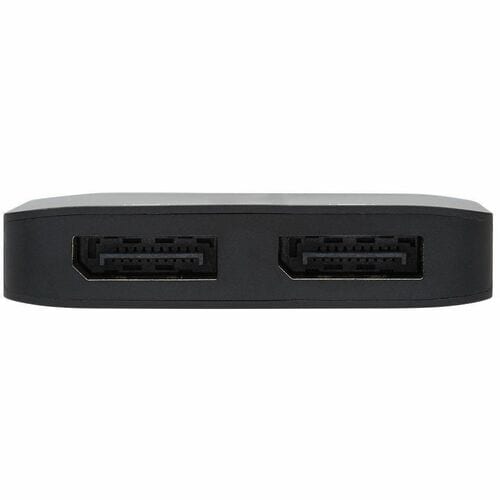

Connector on Second End Details2 x DisplayPort DisplayPort 1.4 Digital Audio/Video Female
