ASYNC RS232 EXTENDER OVER CATX DB9 W/CONTROL SIGNALS TO TB

SKU: 9U9192VPN: ME890A-R2

Out of Stock

$322.33

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

Signals include RD, TD, RTS, CTS, GND, plus DTR (or DSR) asserted.
Local and remote units can be up to 4000 feet (1250 m) apart.
Fixed DCE local and DTE remote
Operates point-to-point in full-duplex mode
Provides 1000-VDC isolation between RS-232 interface and RS-485 interface

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

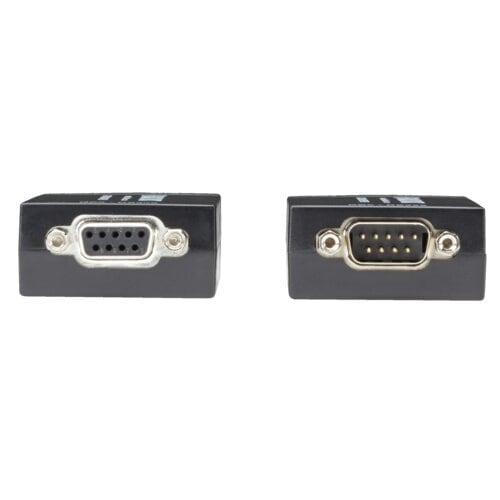

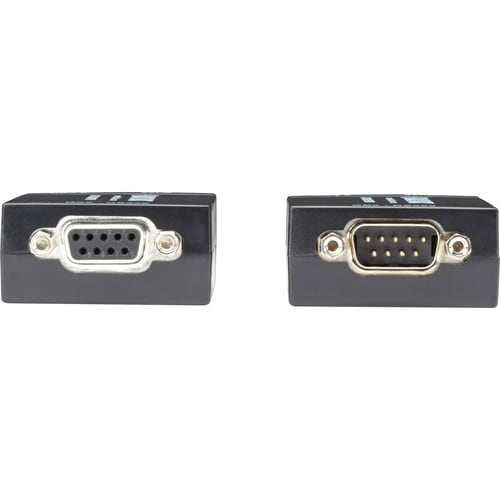

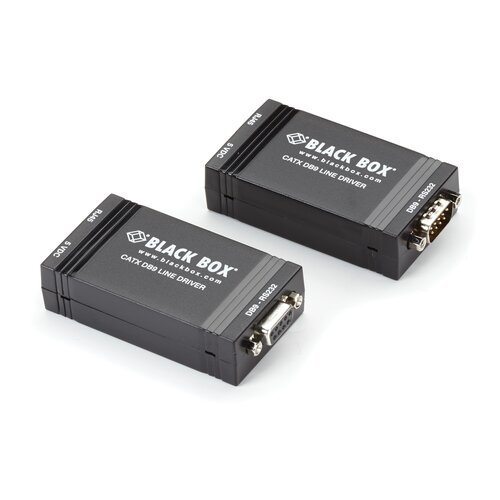

Extend async RS-232 data and control leads beyond the 50 ft limitation over CAT6 at data rates up to 250 kbps and reach distances up to 4000 ft. Use long-distance CATx links to communicate with serial devices. Control presentations remotely. Transfer data between computers. Ideal for a wide variety of applications. Optical isolated. Maximum speed of 250 K. Easy installation. The driver provides full-duplex transmission and hardware handshake signals. There's no need for setup or configuration. These CATx Line Drivers enable the user to place a receiving device up to 4000 feet away from the sending device. The local unit has a DB9 female connector and is configured as a DCE device the remote unit has a DB9 male connector and is configured as a DTE device. This allows the local/remote pair to function as a long extension cable between two RS-232 devices. There are no user-configurable settings. These units pass TXD RXD RTS and CTS signals to allow application to use hardware handshake signals if neccessary.

Tech Specs

ASYNC RS232 EXTENDER OVER CATX DB9 W/CONTROL SIGNALS TO TB specifications
Depth	3.2"
Width	1.7"
Height	0.8"
Brand Name	Black Box
Manufacturer	Black Box Corporation
Product Name	Async RS232 Extender over CATx - DB9 with Control Signals to Terminal Block
Product Type	Serial Extender
TAA Compliant	Yes
Network (RJ-45)	Yes
Package Contents	<ul> <li>1 x Local Unit</li> <li>1 x Remote Unit</li> <li>2 x 120 V Power Supplies</li> </ul>
Country of Origin	United States

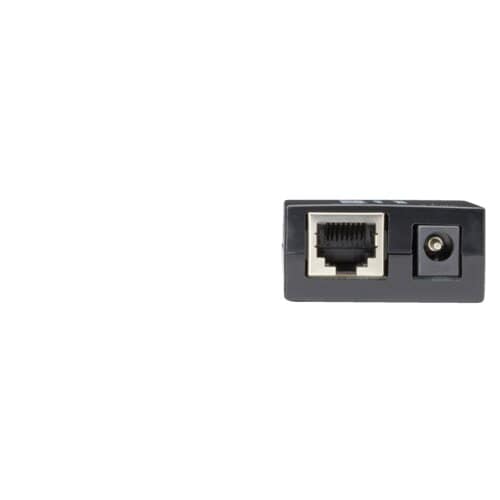

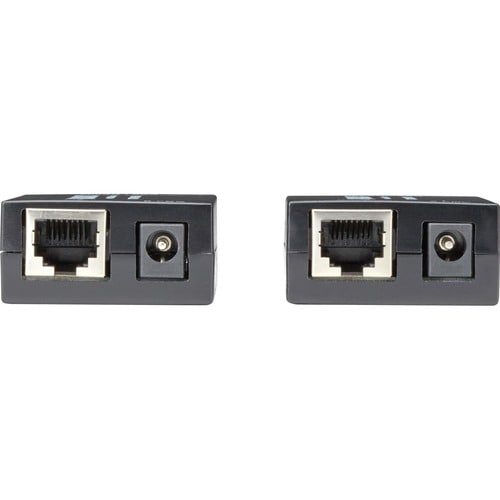

Additional Information	<ul> <li>Cable Requirement CATx</li> <li>Connectors Local unit: (1) DB9 F (DCE), (1) RJ-45, (1) power jack;</li> <li>Remote unit: (1) DB9 M (DTE), (1) RJ-45, (1) power jack</li> <li>Distance 4000 ft. (1219.2 m) maximum</li> <li>Interface RS-232</li> <li>Operation Asynchronous, full-duplex</li> <li>Power Input: 100-240 VAC;</li> <li>Output: 12-VDC power adapter</li> <li>Speed 250 kbps maximum</li> </ul>

Show all 19 specs

Maximum Extended Range	4000 ft
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE)
Environmentally Friendly	Yes
Manufacturer Part Number	ME890A-R2
Certifications & Standards	<ul> <li>CE</li> <li>UL</li> </ul>
Maximum Data Transfer Rate	31.25 kB/s
Manufacturer Website Address	http://www.blackbox.com
