ATEN TECHNOLOGY - ETAIL

985FT 4PORT 10G OPTICAL INPUT CARD

SKU: 7VZ005VPN: VM7584K1

985FT 4PORT 10G OPTICAL INPUT CARD

985FT 4PORT 10G OPTICAL INPUT CARD Key Features

  • Compatible with the VM3250 / VM3200 / VM1600A; mix and match with modular I/O boards of any type for optimum flexibility
  • Extends audio/video, IR, and RS-232 control signals over long distances via duplex fiber optic cables
  • Superior video quality over long-distance transmission - up to 4096 x 2160@60Hz (4:2:0), 300m with VM7584K1 over multimode cables or 10km with VM7584K2 over single-mode cables
  • HDMI (3D, Deep Color, 4K); HDCP 2.2 compatible
  • Consumer Electronics Control (CEC) support
  • Bi-directional RS-232 channel - allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
  • Bi-directional IR channel - IR transmission is processed one direction at a time, ranging from 30 kHz to 60 kHz
  • EDID Expert™ - selects optimum EDID settings for smooth power-up, high-quality display, and use of the best resolutions across different screens
  • Hot-swappable fiber optic module and I/O boards for easy integration and maintenance
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

985FT 4PORT 10G OPTICAL INPUT CARD Overview

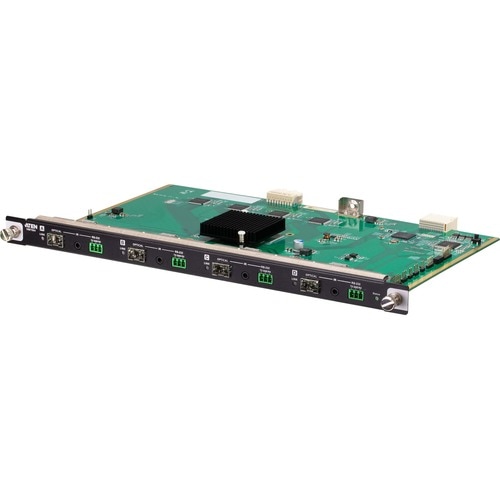

The VM7584 4-Port 10G Optical Input Board offers an easy way to route 4 HDMI sources to HDMI displays through optical extenders, and up to 16/32 input and 16/32 output connections on an ATEN Modular Matrix Switch through various AV interfaces.

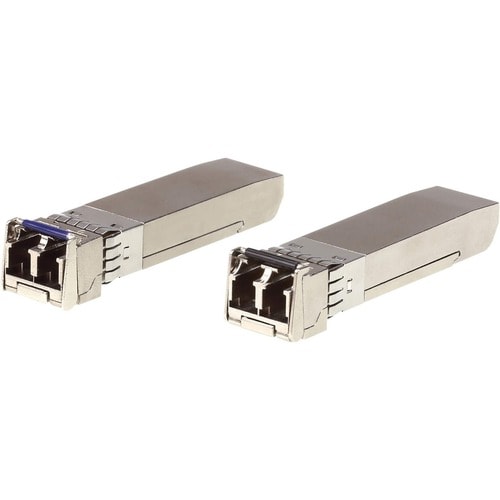

Designed with fiber optics technology for long-distance transmission, the VM7584 along with its SFP+ modules extends uncompressed 4K signal up to 300 m (using VM7584K1) or 10 km (using VM7584K2) over duplex fiber optic cables. The optical fiber simplifies cabling by guaranteeing an interference-free long-haul transmission of audio, video, IR, and RS-232 control signals over one single set of duplex cables that easily connects to the SFP+ slot. Moreover, the VM7584 supports a high data rate of 10.2 Gbps and meets HDMI Specifications that include 3D, Deep Color, and 4K to ensure superior video quality.

The ATEN VM input/output boards are hot-swappable which gives system integrators great flexibility and efficiency for installation and maintenance. The ATEN VM input/output boards along with ATEN Modular Matrix Switches offer ideal solutions that perfectly meet your demands for scalable video-critical applications.

985FT 4PORT 10G OPTICAL INPUT CARD Tech Specs

985FT 4PORT 10G OPTICAL INPUT CARD specifications
Width9.4"
Height0.9"
Length13.9"
Brand NameVanCryst
Color FamilyBlack
ManufacturerATEN Technology, Inc
Product LineProfessional
Product NameVM7584K1 4-Port 10G Optical Input Board (4K@300m (K1, MM))
Product TypeOptical Input Board
Compatibility<p><b>VanCryst Modular Matrix Switch:</b></p> <ul> <li>VM3250</li> <li>VM3200</li> <li>VM1600A</li> </ul>
Product ColorBlack
Product ModelVM7584K1
Show all 18 specs
Product FamilyProfessional
Product MaterialMetal
Application/UsageMatrix Switcher
Weight (Approximate)1.26 lb
Manufacturer Part NumberVM7584K1
Manufacturer Website Addresshttp://www.aten.com/us/en/

985FT 4PORT 10G OPTICAL INPUT CARD Datasheets and Resources
