8 PORT PCI EXPRESS RS232 SERIAL ADAPTER CARD PCIE DB9 SERIAL CARD

SKU: 7BB947VPN: PEX8S1050LP

In Stock

$208.69

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

8 PORT SERIAL CARD: Serial controller card w/ 16C1050 UART based on the Systembase SB16C1058PCI, w/15kV ESD, 8x DB9 ports, bi-directional RS232 speeds up to 921.6Kbps per port & 256 byte FIFO buffer | An upgrade to our popular card PEX8S950LP
OPTIONAL CONFIGURABLE POWER: Multiport serial card provides 12v/5v, or none on pin 9 w/up to 3A total shared; 2 (1xDB44 to 4xDB9) breakout cables incl; Hex nuts incl for opt screw or nut DB9 interface
WINDOWS ONLY: 2 low profile brackets for PCI-e 1x card; Fully compliant w/ PCI Express Base Specifications, Revision 1.0a/1.1; Supports Windows (incl. XP and up) and Windows Server (2003 and up); For low profile desktop/servers
VERSATILE APPLICATIONS: PCI Express RS232 serial adapter card for within point of sale terminals, PLCs, control/automation in factories, scientific sensors, medical equipment, scanners, oscilloscope
TECH SPECS: System Base SB16C1058PCI Chipset; 16C1050 UART Compat.; 8x 9-Pin D-Sub Ports; Max Baud 921.6Kbps per port; 256 Byte FIFO; None/Even/Odd Parity Modes; 5/6/7/8 Data Bits; RS-232; 2x Low Profile Brackets installed (Full Profile Brackets incl.)

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

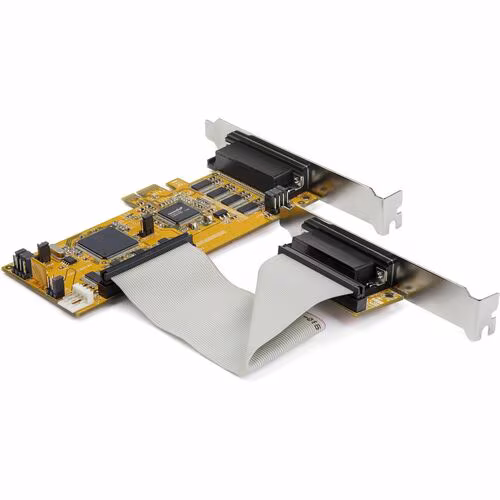

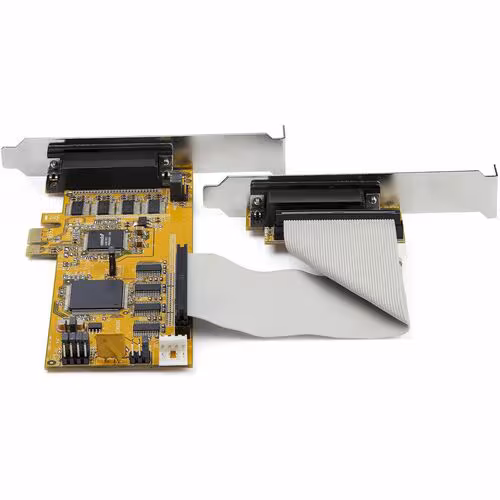

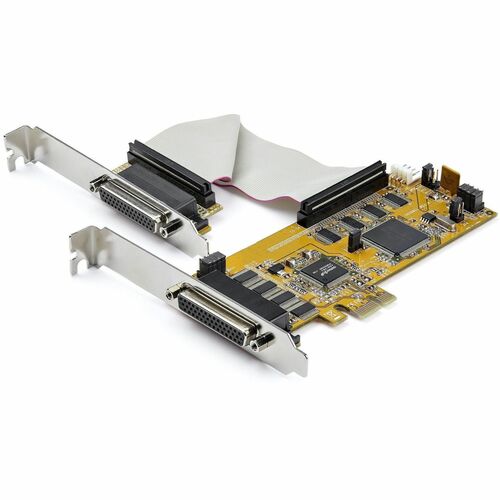

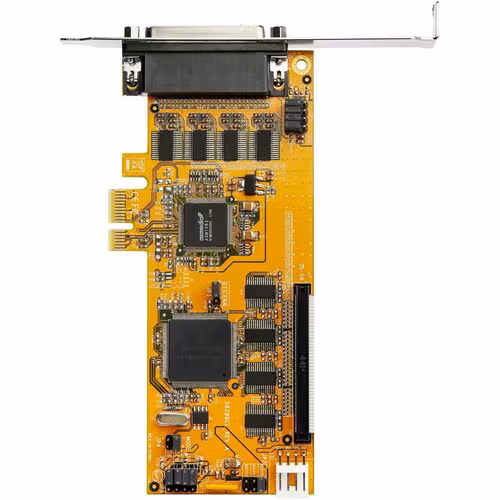

Add eight RS-232 DB9 serial ports to your desktop computer, through two PCIe expansion card slots. This PCI express serial card, with two breakout cables, provides you with multiple ports to connect a wide variety of serial peripherals, at speeds of up to 921.4Kbps. Connect your Peripherals with 8 Serial Ports The PCI express serial port card makes it easy to add serial ports to connect your peripherals including printers, scanners, credit/debit card readers, PIN pads and modems, industrial controls and more. The 8 port PCIe serial card includes 2 breakout cables - each with 4 DB9 connectors. Versatile Use The low profile PCIe serial card is the ideal choice for adding serial ports, even when space is at a premium. The DB9 serial card is designed to fit into small form factor and standard computer cases. The card comes pre-configured with a low-profile bracket, and includes two optional full-profile brackets, so installation is easy regardless of the case form factor. Windows Only This PCI Express card is only compatible with Windows and Windows server.

Tech Specs

8 PORT PCI EXPRESS RS232 SERIAL ADAPTER CARD PCIE DB9 SERIAL CARD specifications
Width	0.9"
Height	2.4"
Brand Name	StarTech.com
Form Factor	Plug-in Card
Color Family	Yellow
Manufacturer	StarTech.com
Product Name	8-Port PCI Express Serial Card with 16C1050 UART
Product Type	Multiport Serial Adapter
Product Color	Yellow
TAA Compliant	Yes
Host Interface	PCI Express x1

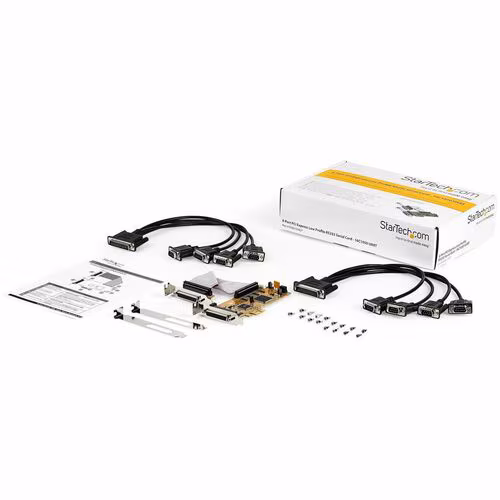

Package Contents	<ul> <li>8-Port PCI Express Serial Card with 16C1050 UART</li> <li>2 x DB44 to 4-Port SB9 Breakout Cables</li> <li>2 x Full Profile Brackets</li> <li>1 x Quick-Start Guide</li> </ul>

Show all 24 specs

Country of Origin	Taiwan
Packaged Quantity	1 Each
Platform Supported	Linux
Ports Expandability	8 x DB-9 - Serial, Via Cable
Weight (Approximate)	4.09 oz
Number of Serial Ports	8
Environmental Compliance	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Environmentally Friendly	Yes
Manufacturer Part Number	PEX8S1050LP
Maximum Data Transfer Rate	921.40 kbit/s
Environmental Certification	EU RoHS
Manufacturer Website Address	http://www.startech.com
