EATON TRIPP LITE SERIES MASTER-POWE

750W INVERTER CHARGER 120V 12VDC ATS RJ45 2OUT 5-15R

SKU: F62127VPN: APS750

750W INVERTER CHARGER 120V 12VDC ATS RJ45 2OUT 5-15R

Key Features

  • Delivers clean 120V AC power from AC or DC power source
  • 750W continuous output power; 1500W peak power
  • Auto-transfer switching option for UPS operation
  • Protects against blackouts, surges and EMI/RFI line noise
  • Rugged polycarbonate housing resists moisture and impact
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

The APS750 750W PowerVerter APS 12V DC 120V AC Inverter/Charger is a reliable power source for a wide variety of equipment ranging from power tools and pumps to portable lighting and computer equipment in heavy-load conditions. With no fumes, fuel or excess noise, it's an excellent alternative to generator power.

The DC-to-AC inverter features an automatic line-to-battery transfer switch and integrated charging system that allow it to work as a vehicle inverter, standalone AC power source or extended-run UPS. It delivers 750W of continuous power, 1125W up to one hour, or 1500W of peak power up to 10 seconds during equipment startup or cycling. An automatic overload detector, cooling fan and resettable AC circuit breakers protect the unit from damage.

Designed for easy installation in RVs, over-the-road trucks, fleet vehicles and emergency vehicles, the APS750 converts stored power from any 12V battery or automotive DC source to safe, stable, computer-grade AC power for unlimited runtime. When hardwired to an external 120V AC source, the unit keeps the user-supplied battery charged via a three-stage 20A charging system while simultaneously delivering AC power to connected equipment.

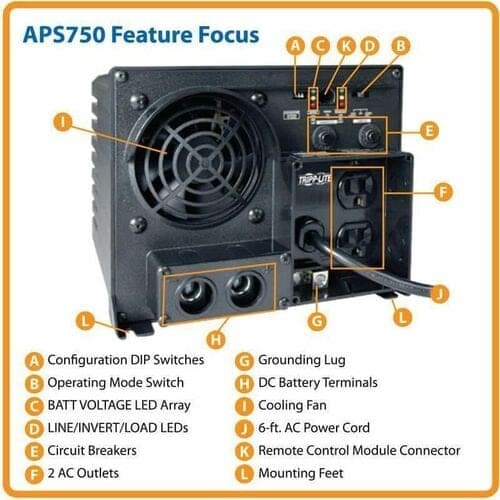

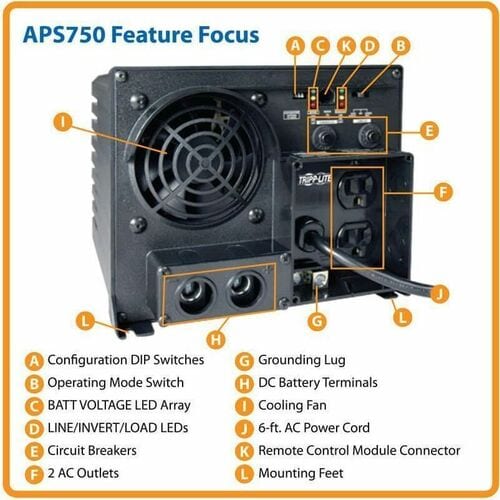

When used as a UPS, the APS750 responds to blackouts and brownouts with an automatic, instantaneous transfer to battery-derived AC output. LEDs on the unit indicate AC/DC operational modes, overload status, DC voltage level, shutdown status and system fault status.

Tech Specs

750W INVERTER CHARGER 120V 12VDC ATS RJ45 2OUT 5-15R specifications
Depth9"
Width8.8"
Height7"
Brand NameTripp Lite series
Receptacles2 x NEMA 5-15R
Color FamilyBlack
ManufacturerEaton Corporation
Product LinePowerVerter
Product Name750W PowerVerter APS 12VDC 120V Inverter/Charger
Product TypePower Inverter
Input Voltage120 V AC
Product ColorBlack
Show all 29 specs
Product ModelAPS750
Waveform TypePulse-width Modulated Sine Wave
Output Voltage120 V AC
Product SeriesAPS
Peak Power Load1500 W
Protection TypeOverload Protection
Package Contents<li>750W PowerVerter APS 12VDC 120V Inverter/Charger</li><li>Owner's Manual</li>
Country of OriginChina
Maximum Frequency60 Hz
Input Voltage Range10 V DC - 15 V DC
Plug/Connector TypeNEMA 5-15P
Weight (Approximate)17 lb
Continuous Power Load750 W
Additional Information<ul><li>Frequency control for operating stability</li><li>AC surge suppression not included</li><li>Material of construction: Polycarbonate</li><li>Low voltage transfer to battery power: User configurable to 75V, 85V, 95V & 105V</li><li>High voltage transfer to battery power: User configurable to 135V, 145V</li><li>Coated internal circuit boards offer continuous operation in humid environments</li><li>Advanced 20 amp, 3-stage battery charger and selector switch for gel or wet cell batteries</li><li>Functions as an extended run UPS system, standalone power source and automotive inverter</li><li>RJ-45 port allows connection of APS/PowerVerter Remote Switch (manuf# APSRM4)</li><li>Switch allows user to select between off, auto-invert/remote and charge-only settings</li><li>Configuration switches to allow the user to select the high and low voltage</li><li>Mounting slots enable permanent placement of inverter on any horizontal surface</li><li>AC input cord and auto-transfer to enable battery charging and automatic UPS support for blackouts & brownouts</li></ul>
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Manufacturer Part NumberAPS-750
Manufacturer Website Addresshttp://www.eaton.com
