70M 4K HDMI EXTENDER OVER CAT6 UHD POC HDMI ETHERNET IR EXTENSION

SKU: 03WK90VPN: EXTEND-HDMI-4K40C6P1

In Stock

$135.29$124.72

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

HDMI OVER ETHERNET CABLE: This HDMI Extender over CAT6/5e sends 4K 30Hz up to 130ft (40m) or 1080p up to 230ft (70m) | 7.1ch Audio | 4:4:4 Chroma Subsampling | HDCP 1.4 | Metal Housing with mounting brackets | IR Extension kit incl.
SINGLE POWER ADAPTER: The power adapter connects to the HDMI Extender Kit's transmitter and powers the receiver for areas where power outlets may be limited; Power is delivered to the receiver over the Ethernet cable using Power over Cable (PoC)
VERSATILE FUNCTIONALITY: The Transmitter's HDMI output can be used to connect a local display or cascaded to another HDMI extender; The 4K HDMI extender over Ethernet cable is ideal for displaying video over CAT6 for digital signage in malls, stadiums and hospitals
IR EXTENSION: The HDMI CAT6/5e Extender includes a IR Control Extension Kit with 1x IR Blaster and 1x IR Receiver (IR remote not included); IR Blaster/Receiver have adhesive for easy installion; Control your IR devices from a remote location (receiver)
EASY INSTALLATION: No IP configuration, software, or drivers required; Durable metal housing and built-on mounting brackets make it ideal for many environments; Point-to-Point transmitter to receiver connection, using a single CAT6/5e cable

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

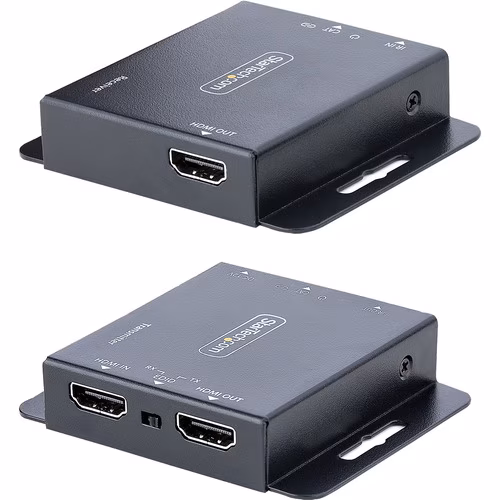

This HDMI® Extender over CAT6 lets you transmit a 4K 30Hz HDMI® audio video signal up to 130ft (40m), or 230ft (70m) for 1080p resolutions. This converter kit includes both the transmitter and receiver for a complete end-to-end solution.

4K Picture Quality

This HDMI extender supports 7.1ch audio and resolutions of up to 4K at 30Hz (3840 x 2160) over a single CAT6/5e cable. The UHD HDMI Extender supports HDMI 1.4 and 4:4:4 chroma subsampling, which ensures a crystal-clear picture.

Simplify your setup

With support for Power over Cable (PoC), only one power, connected to the transmitter, is required to power both units of the transmitter and receiver kit. IR extension, using the included IR Blaster and Receiver, makes controlling a source device from a remote location easy.

Easy Installation

The 4K HDMI Extender over Ethernet cable has an HDMI output on the transmitter unit allowing the solution to be cascaded to other video extenders or for use to a local display. Plug-and-play installation with no additional software or drivers required. The metal housing and built-on mounting brackets allow for professional installation options, ideal for digital signage, boardrooms, and tradeshow applications.

EXTEND-HDMI-4K40C6P1 is backed by a 2-year StarTech.com warranty and free lifetime technical support.

Tech Specs

70M 4K HDMI EXTENDER OVER CAT6 UHD POC HDMI ETHERNET IR EXTENSION specifications
HDMI	Yes
Width	2.7"
Height	0.7"
Length	2.2"
Brand Name	StarTech.com
Manufacturer	StarTech.com
Product Name	HDMI Extender
Product Type	HDMI Extender
Input Voltage	230 V AC
Product Color	Black
Network (RJ-45)	Yes
Package Contents	<ul> <li>1 x Local HDMI Transmitter Unit</li> <li>1 x Remote HDMI Receiver Unit</li> <li>1 x IR Blaster</li> <li>1 x IR Receiver</li> <li>1 x Power Adapter</li> <li>1 x Quick-Start Guide</li> </ul>

Show all 23 specs

Product Material	Metal
Country of Origin	China
Packaged Quantity	1
Number of HDMI Ports	2
Maximum Extended Range	229.66 ft
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmentally Friendly	Yes
Manufacturer Part Number	EXTEND-HDMI-4K40C6P1
Maximum Data Transfer Rate	1.28 GB/s
Manufacturer Website Address	http://www.startech.com
Number of Network (RJ-45) Ports	2
