EATON TRIPP LITE SERIES CONNECTIVIT

5M FAN-OUT CABLE PUSH/PULL TAB MTP/MPO TO 8X LC OM3 PLENUM AQUA

SKU: YE3133VPN: N844-05M-8LC-PT

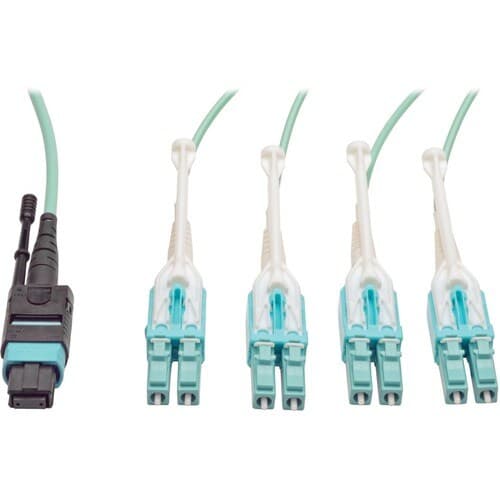

5M FAN-OUT CABLE PUSH/PULL TAB MTP/MPO TO 8X LC OM3 PLENUM AQUA

Key Features

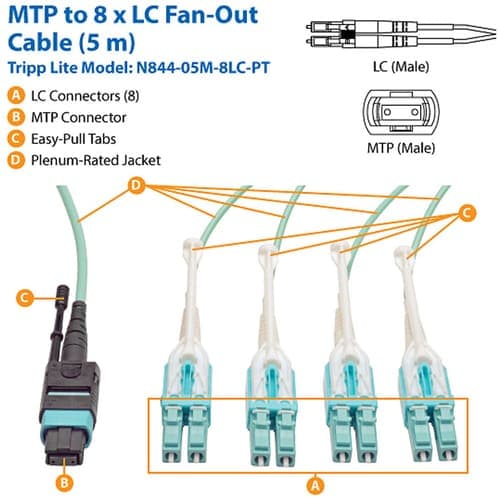

  • MTP / MPO to 8 x LC Fan-out Cable
  • Push/Pull tab connectors offer maximum accessibility in high density installations; install / remove with one hand without needing additional tools
  • Slim uniboot design saves space and makes cables easier to manage
  • Premium-grade ceramic ferrule designed specifically for 10GbE and faster applications
  • Sturdy plastic housing for long-lasting durability
  • OM3, 40GbE rated, 40GBASE-SR4
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

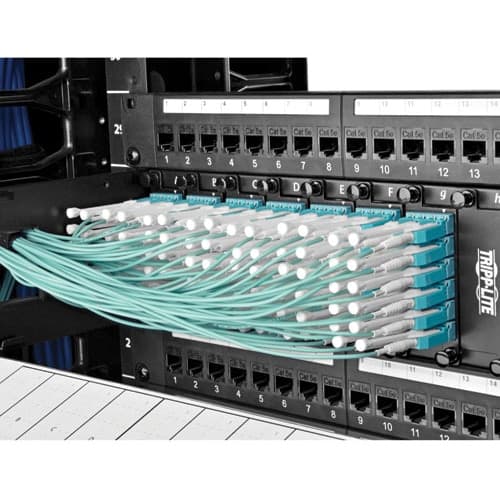

Tripp Lite's Premium MPO/MTP Multi-Fiber cabling system is ideally suited for a high density environment that demands space saving and reduced cable management solutions. MPO/MTP fan-outs support various connections from multi-fiber to single-fiber out. N844-xxM-8LC-P cables utilize 8 fibers to fully transmit 40GBASE-SR, 4 fibers in each direction transmitting at 10Gbps. It includes push/pull tab connectors for maximum accessibility; install or remove the cable with one hand without needing additional tools. Its slim, uniboot design provides space savings, while its premium-grade ceramic ferrules are designed for 10GbE and faster applications. Backward compatible with existing 50/125 fiber. Plenum rated jacket.

Tech Specs

5M FAN-OUT CABLE PUSH/PULL TAB MTP/MPO TO 8X LC OM3 PLENUM AQUA specifications
FeaturesBooted
Brand NameTripp Lite series
Cable TypeFiber Optic
Jacket TypePlenum
Cable Length16.40 ft
Color FamilyGreen
ManufacturerEaton Corporation
Product Name5M (16.4-ft.) MTP / MPO Fan-out Cable, MTP/MPO to 8 x LC, 40GbE OM3 Plenum
Product TypeNetwork Cable
Product ColorAqua
Product ModelN844-05M-8LC-PT
Shipping Width7"
Show all 27 specs
Shipping Height9"
Device SupportedNetwork Device
Fiber Optic ModeMulti-mode
Country of OriginChina
Cable CharacteristicFan-out Cable
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Environmentally FriendlyYes
Manufacturer Part NumberN844-05M-8LC-PT
Connector Type on First EndMTP Network
Connector Type on Second EndLC Network
Manufacturer Website Addresshttp://www.eaton.com
Shipping Weight (Approximate)3.20 oz
Connector on First End DetailsMTP Network
Connector on Second End Details8 x LC Network
Fiber Optic Cable Core/Cladding Specification50/125 µm
