EATON

5KVA 120V STEP-DOWN TRANSFORMER 18 5-20R 60HZ L6-30P INPUT 3URM

SKU: SN0140VPN: 9PXTFMR5G2

5KVA 120V STEP-DOWN TRANSFORMER 18 5-20R 60HZ L6-30P INPUT 3URM

Key Features

  • Converts 208V AC input into 120V output for powering low-voltage equipment

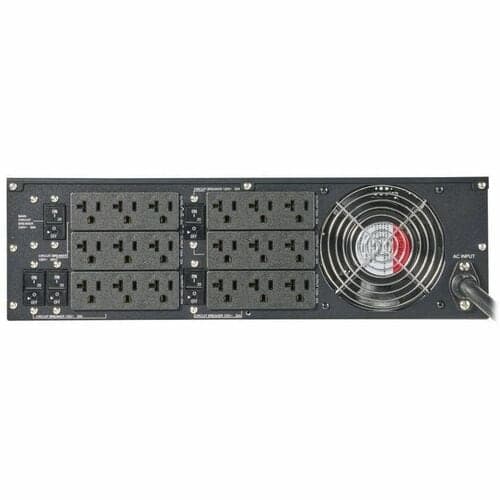

  • 18 NEMA 5-20R 120V outlets for connecting components with 5-15P or 5-20P plugs
  • Resettable circuit breakers protect mission-critical equipment from hazardous overloads

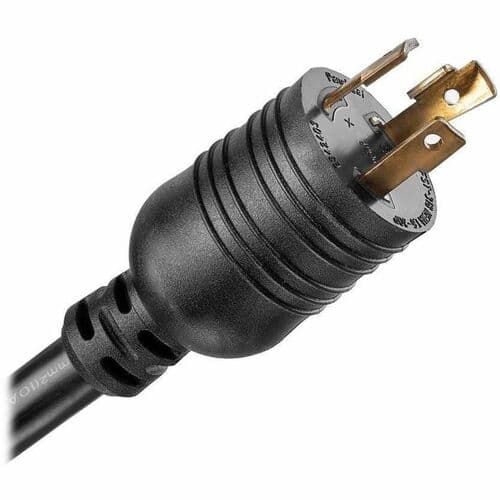

  • 3 ft. power cord with L6-30P input plug connects to compatible UPS system
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

208V to 120V Transformer Converts High-Voltage Input to Low-Voltage Output

This 10kVA Step-Down Transformer converts your UPS system's 208V high-voltage input to 120V low-voltage output. It features eight NEMA 5-20R and two L14-30R outlets for connecting equipment. Resettable circuit breakers protect your 120V equipment against overload conditions. The 9PXTFMR11G2 works with Eaton's 9PX8KG2 and 9PX11KG2 9PX G2 UPS systems.

Versatile Installation Options

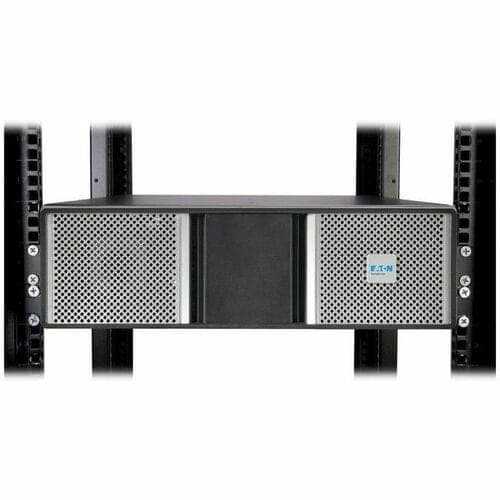

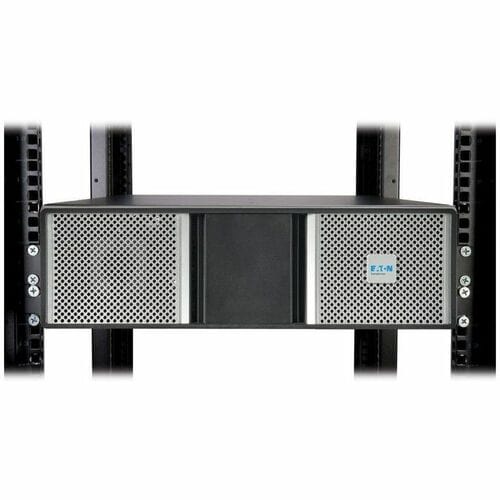

You can mount the 9PXTFMR11G2 in 3U of space in an EIA-standard 19-inch rack using the included 4-post rail kit or adapt it for tower installation using the included joining bracket and hardware. Cable glands are included for hardwire input.

Tech Specs

5KVA 120V STEP-DOWN TRANSFORMER 18 5-20R 60HZ L6-30P INPUT 3URM specifications
Depth27.4"
Width17.3"
Height5.1"
Brand NameEaton
Energy StarYes
Form FactorTower/Rack Mountable
Rack Height3U
ManufacturerEaton Corporation
Power Rating10000 VA
Product Name9PXTFMR5G2 Isolation/Step-Down Transformer
Product TypeIsolation/Step-Down Transformer
Compatibility<p><strong>Eaton's 9PX G2 UPS Systems:</strong></p><ul><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>9PX8KG2 </li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>9PX11KG2</li></ul>
Show all 28 specs
Input Voltage230 V AC
Product Model9PXTFMR5G2
Output Voltage100 V
Package Contents<ul><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>9PXTFMR5G2 Isolation/Step-Down Transformer</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>Hardwire Cable</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>2 x Cable Glands</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>Joining Bracket And Hardware For Tower Configuration</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>Rack-mounting Hardware</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>Owner's Manuals</li></ul>
Country of OriginPhilippines
Input ReceptaclesHardwired
Output ReceptaclesNEMA 5-20R
Input Receptacle TypeHardwired
Output Receptacle TypeNEMA L14-30R
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Manufacturer Part Number9PXTFMR5G2
Output Receptacle Detail8 x NEMA 5-20R
Certifications & Standards<ul><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>cUL Listed</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>NOM (Mexico)</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>CE (Europe)</li></ul>
Manufacturer Website Addresshttp://www.eaton.com
Maximum Operating Temperature104°F (40°C)
Minimum Operating Temperature32°F (0°C)
