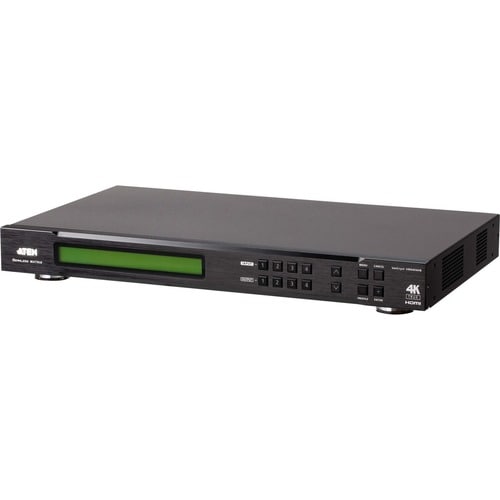

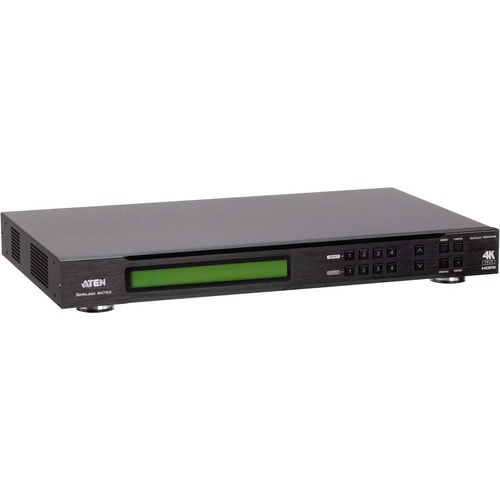

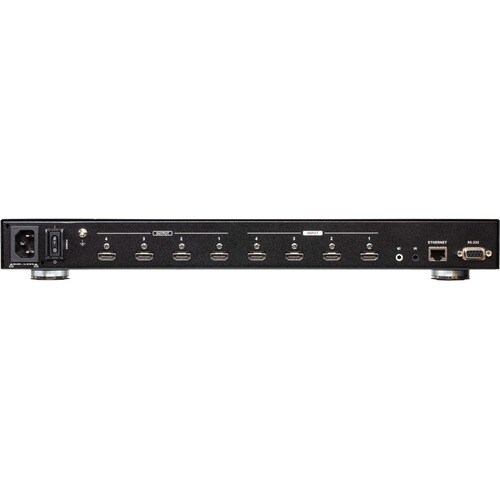

4X4 HDMI TRUE 4K SCALING MATRIX VIDEO WALL W/FAST SWITCHING

SKU: 7VZ001VPN: VM6404HB

Limited Stock

$2,430.10

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

4 x 4 HDMI input/output connections
Multiple Control Methods - system management via front-panel pushbuttons, IR, RS-232 control, and Ethernet connection for web GUI or Telnet
View and control via ATEN Video Matrix Control App in a swift and agile way
True 4K Resolutions -handles uncompressed video resolutions up to 4096 x 2160 / 3840 x 2160@60Hz (4:4:4)
4K Scaler -features a 4K video scaler to convert input resolutions to the optimum display resolutions
Seamless Switch™ -features close-to-zero second switching for continuous video streams, real-time switching, and stable signal transmissions
Video Wall -allows you to create custom video wall layouts via intuitive web GUI
True 4K EDID Expert -selects optimum EDID settings for smooth power-up, high-quality display, and use of the best resolutions across different screens
FrameSync -prevents image tearing by synchronizing the scaler output frame rate to the input signal frame rate
HDMI (3D, Deep color, 4K); HDCP 2.2 compatible

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

True 4K Pro AV solutions with High Dynamic Range (HDR) technology is the trend of high-definition video that delivers the ultimate visual experience with exceptional sharp and vibrant video quality. ATEN's VM6404HB True 4K HDMI Matrix Switch with Scaler is compatible with the latest True 4K video resolutions of 4096 x 2160 / 3840 x 2160@60Hz (4:4:4) and HDR, guaranteeing crystal-clear images across four displays.

The VM6404HB supports 4K@60Hz, HDMI 2.0, and HDCP 2.2 and features Seamless Switch™ that employs an FPGA matrix architecture that ensures continuous video streams, real-time control, and stable signal transmissions. With a built-in high-performance scaler, the VM6404HB easily converts various input resolutions into various output display resolutions, giving viewers the best video and picture quality across all displays. The switch integrates video wall functionality with an easy-to-use web GUI that lets you create 8 connection profiles that can be customized into different video wall layouts.

The VM6404HB is an ideal solution for applications that require multiple HDMI displays with multiple HDMI sources to be conveniently set up - such as for stage presentations, digital classroom, video conference rooms, and any installation that requires real-time synchronization.

Tech Specs

4X4 HDMI TRUE 4K SCALING MATRIX VIDEO WALL W/FAST SWITCHING specifications
Depth	17"
Width	10.3"
Height	1.7"
HDMI In	Yes
HDMI Out	Yes
Brand Name	ATEN
Form Factor	Desktop
Manufacturer	ATEN Technology, Inc
Product Line	VanCryst
Product Name	4 x 4 True 4K HDMI Matrix Switch with Scaler
Product Type	Audio/Video Switchbox
Product Model	VM6404HB

Show all 32 specs

Graphics Modes	4K
Product Family	VanCryst
Device Supported	Display
Package Contents	<ul> <li>4 x 4 True 4K HDMI Matrix Switch with Scaler </li> <li>1 x Power Cord</li> <li>1 x IR Remote Control</li> <li>1 x IR Receiver</li> <li>1 x Mounting Kit</li> <li>1 x User Instructions</li> </ul>
Packaged Quantity	1
Connectivity (RJ-45)	Yes
Media Type Supported	Twisted Pair
Weight (Approximate)	7.76 lb
Number of HDMI Inputs	4
Number of HDMI Outputs	4
Connectivity Technology	Cable
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE)
Environmentally Friendly	Yes
Manufacturer Part Number	VM6404HB
Maximum Video Resolution	3840 × 2160
Maximum Operating Distance	118.11"
Manufacturer Website Address	http://www.aten.com/us/en/
Number of Displays Supported	4
Number of Input Devices Supported	4
Number of Connectivity (RJ-45) Ports	1
