4PORT TRUE 4K HDMI OUTPUT CARD

SKU: 7VZ004VPN: VM8824

Out of Stock

$2,274.30

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

Compatible with the VM Modular Matrix Switches; mix and match with modular I/O boards of any type for optimum flexibility
True 4K Resolutions - handles uncompressed video resolutions up to 3840 x 2160 / 4096 x 2160 @ 60Hz (4:4:4)
4K Scaler - features a video scaling function to integrate a video wall seamlessly with various output video resolutions
Seamless Switch™ - features close-to-zero second switching that provides continuous video streams, real-time switching and stable signal transmissions
Video Wall - allows you to create custom video wall layouts via intuitive web GUI
True 4K EDID Expert - selects optimum EDID settings for smooth power-up, high-quality display, and use of the best resolution across different screens
FrameSync - prevents image tearing by synchronizing the scaler output frame rate to the input signal frame rate
Audio-enabled, HDMI audio can be extracted and stereo audio can be embedded
Cable Quality Tester - examines the HDMI cable quality
HDMI (3D, Deep Color, 4K); HDCP 2.2 Compatible

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

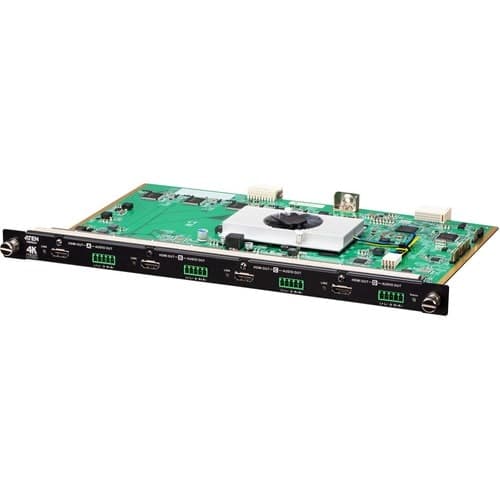

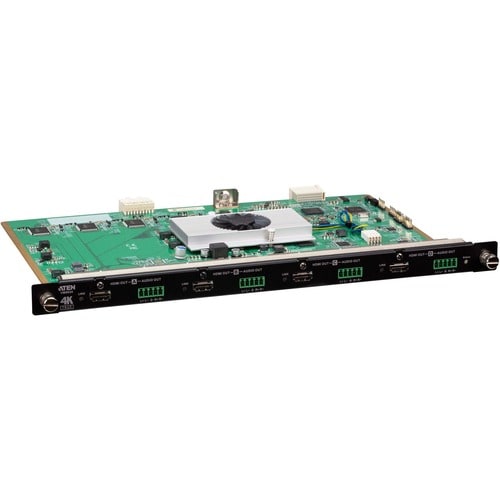

The VM8824 is a True 4K HDMI output board that works with an ATEN Modular Matrix Switch to offer an easy way to route 4 analog/digital audio/video sources to 4 HDMI displays with True 4K high-definition images support. In addition to the HDMI interface that carries digital A/V signal, the VM8824 also provides 4 stereo audio output ports that enable HDMI audio extraction.

Considering video wall applications always require fast video switching and resolution adaptation, the VM8824 supports Seamless Switch™ technology that provides real-time video switching, a built in 4K scaler that handles different video resolutions, and the EDID Expert technology for fast smooth switching between displays. All of ATEN's VM series input/output boards support hot-swappable installation that gives system integrators great flexibility and efficiency for maintenance. The VM series input/output boards along with ATEN Modular Matrix Switches offer ideal solutions that perfectly meet your demands for multi-interface video applications.

Tech Specs

4PORT TRUE 4K HDMI OUTPUT CARD specifications
Width	9.37"
Height	0.92"
Brand Name	VanCryst
Form Factor	Wall Mountable
Manufacturer	ATEN Technology, Inc
Product Line	Professional
Product Name	VM8824 4-Port True 4K HDMI Output Board with Scaler
Product Type	HDMI Output Module
Product Model	VM8824
Product Family	Professional
Product Material	Metal
Application/Usage	Matrix Switcher
