EATON TRIPP LITE SERIES MASTER-POWE

4PORT HDMI VIDEO/AUDIO SWITCH 4K X 2K UHD 60 HZ W/ REMOTE

SKU: 3F8060VPN: B119-004-UHD

4PORT HDMI VIDEO/AUDIO SWITCH 4K X 2K UHD 60 HZ W/ REMOTE

Key Features

  • Supports UHD video resolutions up to 3840 x 2160 (4K x 2K)
  • Switch source devices using button or included remote control
  • Switches to next device when current device is powered off
  • Supports DTS-HD, Dolby® TrueHD and 7.1-channel surround sound
  • Plug and play-no software or drivers required
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

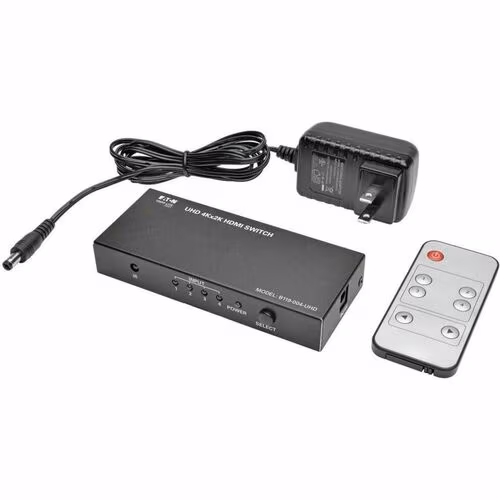

The B119-004-UHD 4-Port HDMI Switch allows you to connect four HDMI source devices to one port on an HDMI display and switch back and forth between them. For instance, you can connect a Blu-ray player, video game system, computer and cable/satellite DVR to one HDMI port on a monitor, projector or TV. Or you can connect up to four computers or media centers to a display for exhibiting digital signage or giving presentations.

Connect your devices to the HDMI ports, and plug the included external power supply into an AC power source. A red LED indicates the unit is receiving power, and green LEDs indicate connected HDMI inputs. Switch between source devices using the unit's Select button or the included remote control. When the currently used device is powered off, the unit automatically switches to the next powered-on device.

The B119-004-UHD ensures top-quality performance with Ultra High Definition (UHD) video resolutions up to 3840 x 2160 (4K x 2K) @ 60 Hz and 48-bit True Color (16 bits per channel), as well as DTS-HD, Dolby TrueHD and 7.1-channel surround sound audio. It's compatible with 3D, HDCP v2.2 and EDID. Plug-and-play functionality requires no software or drivers to download and install.

Tech Specs

4PORT HDMI VIDEO/AUDIO SWITCH 4K X 2K UHD 60 HZ W/ REMOTE specifications
HDMI InYes
HDMI OutYes
Brand NameTripp Lite series
ManufacturerEaton Corporation
Product NameB119-004-UHD 4-Port HDMI Switch
Product TypeAudio/Video Switchbox
Product ModelB119-004-UHD
Graphics Modes4K
Device SupportedSatellite Receiver
Package Contents<ul> <li>B119-004-UHD 4-Port HDMI Switch</li> <li>Remote Control</li> <li>External Power Supply (Input: 100-240V, 50/60 Hz, 0.4A; Output: 5V, 2A)</li> <li>Owner's Manual</li> </ul>
Country of OriginVietnam
Number of HDMI Inputs4
Show all 20 specs
Number of HDMI Outputs1
Connectivity TechnologyCable
Environmentally FriendlyYes
Manufacturer Part NumberB119-004-UHD
Maximum Video Resolution3840 × 2160
Manufacturer Website Addresshttp://www.eaton.com
Number of Displays Supported1
Number of Input Devices Supported4

Datasheets & Resources
