4PORT HDMI SPLITTER OVER CAT6 EXTENDER WITH IR EXTENDS TO 4HDMI
SKU: 8JX719VPN: CE-H23U11-S1
4PORT HDMI SPLITTER OVER CAT6 EXTENDER WITH IR EXTENDS TO 4HDMI
Key Features
- Video Extender Transmitter/Receiver provides efficient and feasible audio/video transmission, decoding, and extending
- 1920 x 1080 maximum video resolution for a vivid, crystal clear display with added productivity
- HDMI in allows convenient transfer of content and data to video extender transmitter/receiver to ensure maximum dependability
- HDMI out enables you to transfer data from your devices to video extender transmitter/receiver with added efficiency
- Twisted pair media type is very easy to connect and can carry both analog and digital data at the same time for maximum connection efficiency
- 1 input devices supported to better accommodate your specific requirements
- 4 output devices supported for maximum feasibility and usage convenience
- 131.23 ft maximum operating distance for reliable coverage and maximum portability
- Full HD graphics mode for stunning, lively video quality
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview

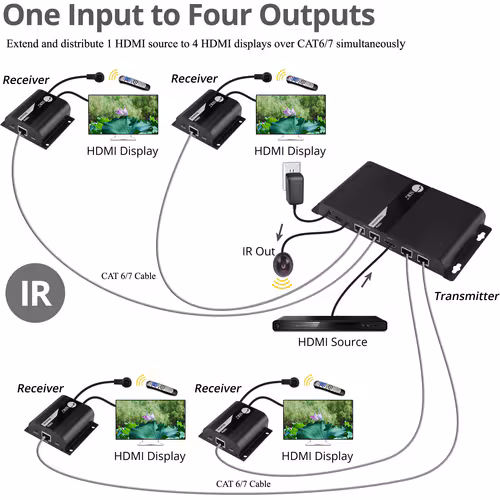

Extends HDMI signals to four HDMI displays over single Cat6 cable up to 130 feet (40 meters)
- Extends HDMI signals up to 130ft (40m) over economical Cat6 cabling to up to 4 displays
- Delivers crystal clear Full HD content up to 1080p@60Hz resolution
- IR remote control through Cat6 cable allows you to control the HDMI source device at the remote display location
- High quality durable metal housing with ventilation panels provides excellent heat dissipation to ensure reliable performance and system stability during long hours of operation
- Plug-n-Play installation, no software installation required
Tech Specs
| HDMI In | Yes |
|---|---|
| HDMI Out | Yes |
| Brand Name | SIIG |
| Manufacturer | SIIG, Inc |
| Product Name | 4-Port HDMI Splitter over Cat6 Extender with IR - 40m |
| Product Type | Video Extender Transmitter/Receiver |
| Graphics Modes | Full HD |
| Network (RJ-45) | Yes |

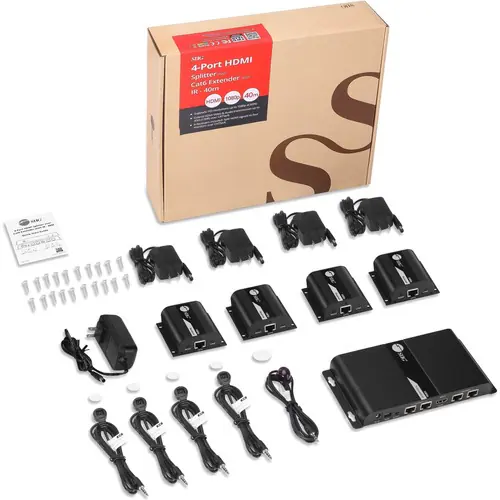

| Package Contents | <ul> <li>1 x Transmitter</li> <li>4 x Receiver</li> <li>5 x Power Adapter </li> <li>1 x IR Blaster Extension Cable </li> <li>4 x IR Receiver Extension Cable</li> <li>Screw Kit</li> <li>User Reference Guide</li> </ul> |
| Country of Origin | Switzerland |
| Media Type Supported | Twisted Pair |
| Number of HDMI Inputs | 1 |
Show all 24 specsShow fewer
| Number of HDMI Outputs | 4 |
|---|---|
| Connectivity Technology | Wired |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmentally Friendly | Yes |
| Manufacturer Part Number | CE-H23U11-S1 |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Operating Distance | 131.23 ft |
| Twisted Pair Cable Standard | Category 7 |
| Manufacturer Website Address | http://www.siig.com |
| Number of Network (RJ-45) Ports | 8 |
| Number of Input Devices Supported | 1 |
| Number of Output Devices Supported | 4 |
