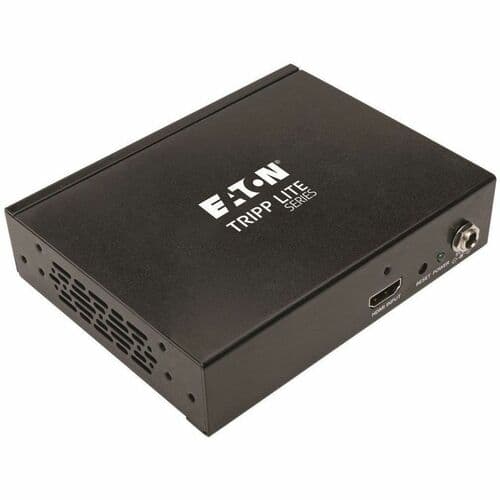

4PORT 4K 3D HDMI SPLITTER HDCP 2.2 FOR ULTRA HD VIDEO W/AUDIO

SKU: 2CZ133VPN: B118-004-UHD-2

Out of Stock

$242.74$145.23

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

4PORT 4K 3D HDMI SPLITTER HDCP 2.2 FOR ULTRA HD VIDEO... Key Features

Transmits Ultra High Definition (UHD) 4K x 2K audio/video (A/V) from an HDMI source to four HDMI displays at the same time.
Recommended for digital signage in classrooms, churches, office buildings, restaurants/bars, etc.
Transmits UHD video resolutions up to 4K x 2K @ 60 Hz
Distributes A/V up to 15 ft. when used with 28 AWG HDMI cable
Supports DTS-HD, Dolby® TrueHD and Dolby Digital Plus™
Compatible with HDCP 2.2, 3D, EDID and HDMI 2.0
Supports High Dynamic Range (HDR) for richer contrast and expanded color accuracy
Expand the number of connected displays, up to 64, by cascading up to 3 levels of splitters together
Plug and play-no software or drivers required
3-year limited warranty

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

4PORT 4K 3D HDMI SPLITTER HDCP 2.2 FOR ULTRA HD VIDEO... Overview

4-Port HDMI splitter transmits Ultra High Definition (UHD) 4K x 2K audio/video (A/V) from an HDMI source to four HDMI displays at the same time. Plug-and-play technology makes installation quick and simple - with no software or drivers to install. Using standard 28 AWG HDMI cabling, this splitter can transmit full 3D and a 4K x 2K (3840 x 2160) signal up to 15'. It supports a wide range of audio formats, including DTS-HD, Dolby TrueHD, Dolby Digital Plus, and LPCM 7.1-channel surround sound as well as 36-bit Deep Color (12 bits per channel). Splitter also supports HDMI 2.0 and HDCP 2.2 to ensure its compatibility with the latest audio/video hardware.

4PORT 4K 3D HDMI SPLITTER HDCP 2.2 FOR ULTRA HD VIDEO... Tech Specs

4PORT 4K 3D HDMI SPLITTER HDCP 2.2 FOR ULTRA HD VIDEO W/AUDIO specifications
HDMI In	Yes
HDMI Out	Yes
Brand Name	Tripp Lite series
Manufacturer	Eaton Corporation
Product Name	B118-004-UHD-2 4-Port 4K 3D HDMI Splitter
Product Type	Signal Splitter
Input Voltage	120 V AC
Product Model	B118-004-UHD-2
TAA Compliant	Yes

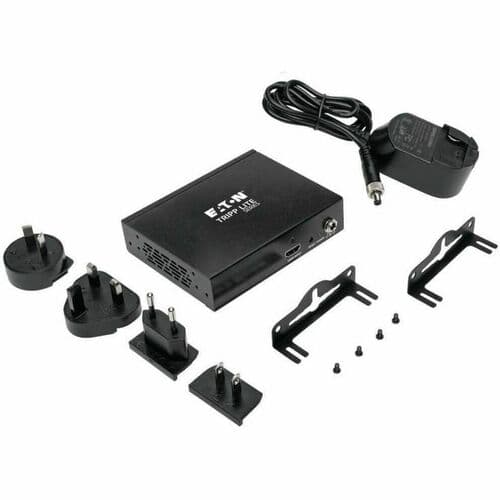

Package Contents	<ul> <li>B118-004-UHD-2 4-Port 4K 3D HDMI Splitter</li> <li>External Power Supply (Input: 100-240V, 50/60 Hz, 0.35A; Output: 5V 2A)</li> <li>International Plug Adapters (North America, Europe, U.K. and Australia)</li> <li>Mounting Hardware</li> <li>Owner's Manual</li> </ul>
Product Material	Metal
Country of Origin	Taiwan

Show all 20 specs

Packaged Quantity	1 Each
Number of HDMI Inputs	1

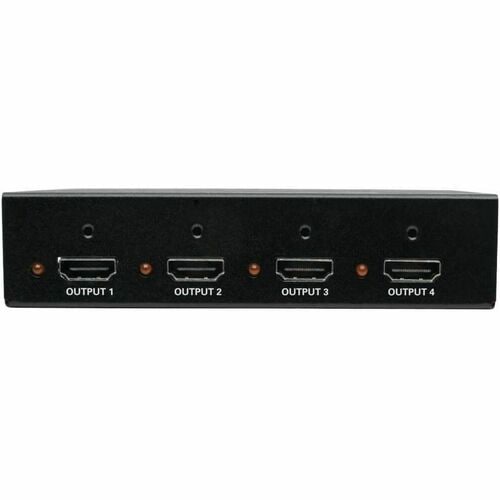

Number of HDMI Outputs	4
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Manufacturer Part Number	B118-004-UHD-2
Maximum Video Resolution	3840 × 2160
Maximum Operating Distance	22.97 ft
Manufacturer Website Address	http://www.eaton.com
