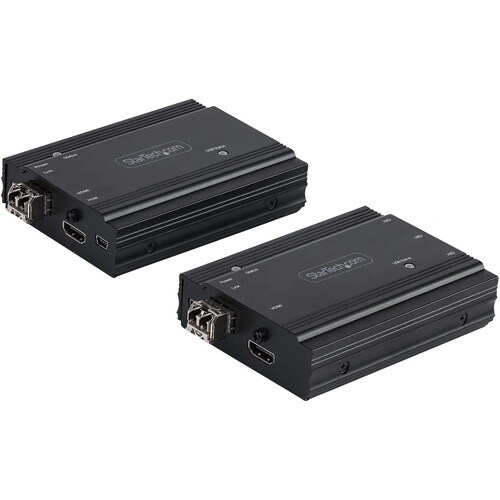

4K HDMI KVM EXTENDER OVER FIBER HDMI USB KVM CONSOLE EXTENDER

SKU: 9KX664VPN: SV565FXHD4KU

In Stock

$708.26$679.22

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

REMOTE ACCESS: USB & 4K HDMI KVM extender over fiber controls a KVM switch/console or PC using a fiber optic cable at distances up to 984'/300m (multimode cable) or 1,640'/500m (single mode cable); open SFP+ slots for use w/ MSA compliant 10G SFP+ modules
4K 60Hz VIDEO: HDMI transmitter and receiver extender kit achieves UHD resolutions up to 3840 x 2160 @ 60Hz, supporting 4:4:4 image sampling for accurate color & image for applications requiring high resolution video like digital signage & security
DIGITAL AUDIO & HDMI 2.0 VIDEO: Keyboard Video Mouse Extender with EDID passthrough transfers display capabilities to the video source, maximizing compatibility between devices; Digital 7.1 surround audio over HDMI for high quality sound; HDCP 2.2 support
SPECS: HDMI 2.0 Fiber Optic KVM Extender | 3x USB 1.1 HID | OS Independent | EDID Passthrough | Supports MM or SM SFP+ | 2x 10G Multimode SFP+ modules inc. | LC Connectors | 300m/984 ft (MM) or 500m/1,640 ft (SM) max extension range | 2 year Warranty
EASY TO DEPLOY: Straightforward point-to-point setup using standard fiber optic cable makes configuration easy using the incl. SFP+ modules; there's no proprietary software and network settings to configure; StarTech.com's tech advisors are available 24/5

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

This HDMI KVM extender kit lets you use a keyboard, mouse and monitor to remotely control any computer over a point-to-point fiber connection. When combined with a KVM switch, the KVM console extender can be used with multiple computers. The extender features three USB HID ports that enable you to connect HID devices, like your keyboard and mouse. Supports UHD 4K 60Hz The HDMI KVM extender delivers up to 4K 60Hz UHD picture quality to your remote display with support for 4:4:4 chroma sampling. Hassle-Free Installation The extender supports EDID pass-through, ensuring your computer can automatically configure optimal settings for your display using 10G LC multi mode fiber cabling SV565FXHD4KU is backed by a 2-year warranty and free lifetime technical support.

Tech Specs

4K HDMI KVM EXTENDER OVER FIBER HDMI USB KVM CONSOLE EXTENDER specifications
USB	Yes
HDMI	Yes
Brand Name	StarTech.com
Device Type	KVM Extender
Color Family	Black
Graphic Mode	4K
Manufacturer	StarTech.com
Product Name	KVM Extender
Product Type	KVM Console/Extender
Input Voltage	120 V AC
Product Color	Black
Receiver Width	2.95"

Show all 33 specs

Receiver Height	1.10"
Receiver Length	3.90"
Package Contents	<ul> <li>Transmitter for Host Computer</li> <li>Receiver for Remote Console</li> <li>10G Multimode 10G SFP+ Module (Pre-Installed)</li> <li>Universal Power Adapter</li> <li>USB-A to Mini USB-B Cables</li> <li>Quick-Start Guide</li> </ul>
Country of Origin	Taiwan
Packaged Quantity	1 Kit
Power Consumption	10 W
Transmitter Width	2.95"
Transmitter Height	1.10"
Transmitter Length	3.94"
Input Voltage Range	100V AC to 240V AC
Number of USB Ports	6
Number of HDMI Ports	6
Connectivity Technology	Wired
Manufacturer Part Number	SV565FXHD4KU
Maximum Video Resolution	3840 x 2160
Maximum Operating Distance	984 ft
Manufacturer Website Address	http://www.startech.com
Number of Computers Supported	1
Receiver Weight (Approximate)	15.87 oz
Number of Local Users Supported	1
Transmitter Weight (Approximate)	15.87 oz
