4K HDMI EXTENDER - 4K 60HZ HDMI OVER CAT6 CABLING

SKU: 08RX67VPN: 4K70IC-EXTEND-HDMI

In Stock

$228.56$209.97

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

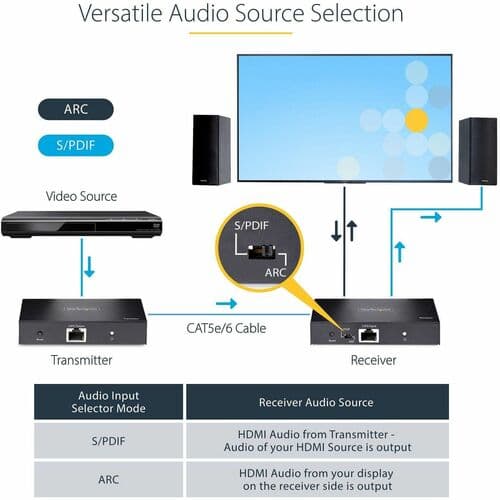

HDMI OVER ETHERNET CABLING: 4K HDMI Extender transmits 4K 60Hz (4:4:4) video signals and 7.1ch audio up to 230ft (70m) with zero latency over a single CAT5e/6 cable; HDMI 2.0; HDR; HDCP 2.2; HDMI or S/PDIF audio output; DTS and Dolby Digital audio
POWER-OVER-CABLE: Included power adapter connects to the HDMI Extender Kit's transmitter and powers the receiver for areas where power outlets may be limited; Power is delivered to the receiver over a CAT5e/6 cable, using Power-over-Cable (PoC)
VERSATILE FUNCTIONALITY: Transmitter features an HDMI output which can be used to connect a local display or to connect cascaded HDMI extenders; HDMI extender over Ethernet Cable is ideal for digital signage in malls, stadiums, and hospitals

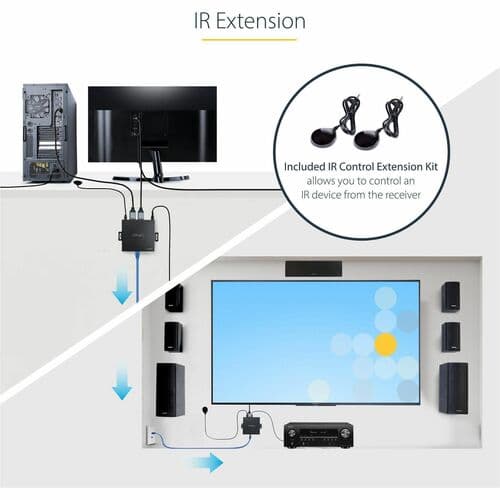

IR EXTENSION: HDMI over CAT5/CAT6 Extender includes an IR Control Extension Kit, with 1x IR Blaster and 1x IR Receiver, to control an IR device from the receiver; IR Blaster/Receiver feature pre-installed adhesive for convenient installation
INSTALLATION OPTIONS: Durable metal housing, 8kV air and 6kV contact ESD protection, suitable for a variety of environments; Included mounting kit and rubber feet provide versatile installation options; No IP configuration, software, or drivers required

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

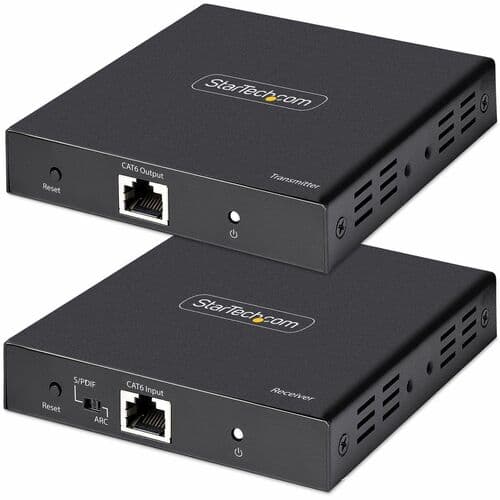

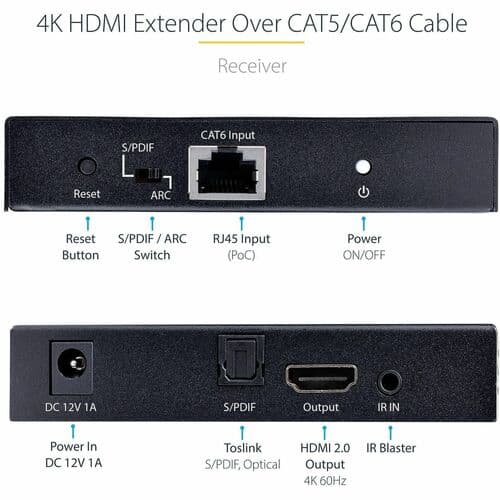

This HDMI® Extender transmits a 4K 60Hz HDMI audio video signal up to 230ft (70m) over Category 5e/6 Ethernet Cabling. The converter kit includes the transmitter and receiver units for a complete point-to-point solution.

4K 60Hz Resolution

This HDMI extender supports resolutions of up to 4K 60Hz with zero latency over a single Ethernet cable. The UHD HDMI Extender supports HDMI 2.0 and 4:4:4 chroma subsampling, which ensures clear and stable video output.

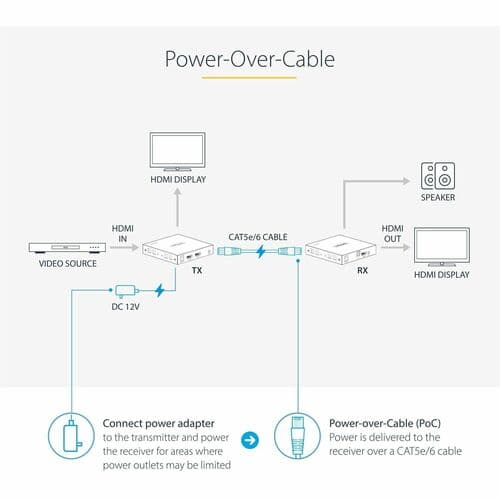

Power-Over-Cable

Connect the power adapter to the transmitter or receiver to power both units, using Power-over-Cable (PoC). Use an IR remote control to communicate with the source device, from the location of the receiver unit, using the IR extension kit.

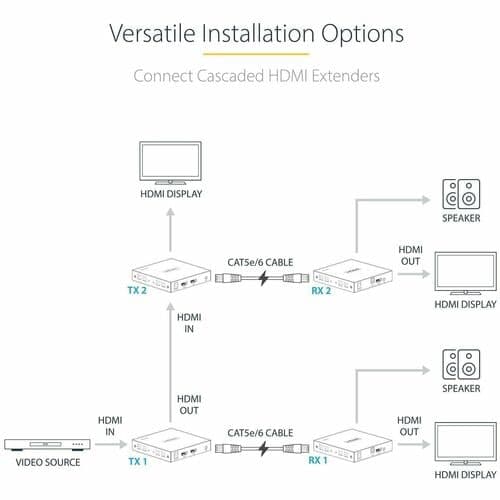

Versatile Installation Options

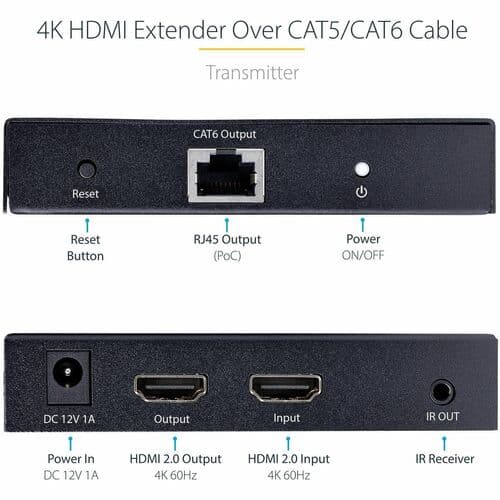

The 4K HDMI Extender features an HDMI output on the transmitter unit, enabling the connection of an HDMI display or to connect additional video extenders - to establish a cascade connection. Plug-and-play installation with no additional software or drivers required. Attach the mounting brackets to the metal housing and to a wall, ceiling, or to the underside of a table, facilitating a multitude of professional installation options. The rubber feet protect the mounting surface and isolate the units from vibration.

This product is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance.

Tech Specs

4K HDMI EXTENDER - 4K 60HZ HDMI OVER CAT6 CABLING specifications
HDMI	Yes
Width	3.9"
Height	1"
Length	4.2"
Brand Name	StarTech.com
Manufacturer	StarTech.com
Product Name	HDMI Extender
Product Type	HDMI Extender
Input Voltage	230 V AC
Product Color	Black
Network (RJ-45)	Yes
Package Contents	<ul> <li>1 x Local HDMI Transmitter Unit</li> <li>1 x Remote HDMI Receiver Unit</li> <li>1 x IR Blaster</li> <li>1 x IR Receiver</li> <li>8 x Rubber Feet</li> <li>1 x Mounting Kit</li> <li>1 x Power Adapter</li> <li>1 x Quick-Start Guide</li> </ul>

Show all 22 specs

Product Material	Metal
Country of Origin	China
Packaged Quantity	1
Number of HDMI Ports	3
Maximum Extended Range	230 ft
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmentally Friendly	Yes
Manufacturer Part Number	4K70IC-EXTEND-HDMI
Manufacturer Website Address	http://www.startech.com
Number of Network (RJ-45) Ports	2
