3M MTP TO LC BREAKOUT CABLE OM3 PLENUM MPO MULTIMODE FIBER CABLE
SKU: 5BM962VPN: MPO8LCPL3M
3M MTP TO LC BREAKOUT CABLE OM3 PLENUM MPO MULTIMODE FIBER CABLE
Key Features
- OM3 FIBER CABLE: MTP(F)/PC to 4x LC/PC Duplex Breakout Multimode Fiber Cable features a single 40 Gbps connection to four LC duplex connectors; Ideal for high density connections between servers, switches, QSFP+ and SFP+ transceivers
- QUALITY CONSTRUCTION: OFNP jacket emits low-smoke and fumes if combusted; 50/125"m fiber core/cladding is immune to EMI; MTP Push-Pull Tabs with Flexible Extensions facilitates convenient installation and removal
- RATINGS AND RELIABILITY: Individually tested for signal integrity; Test report included with each cable; Rated for plenum and in-wall installations; MTP/MPO and LC connectors with PC polished ends maintains low insertion loss
- COMPATIBILITY: OM3 MTP/MPO multimode cable supports 40 Gbps for high-density network applications such as SANs, data servers, and QSFP+ transceivers; Connect from a 40GBase-SR4 QSFP+ module to four LC SFP+ transceivers
- SPECS: 3m (9.8ft); Color: Aqua (OM3); 40 Gbps; MTP(F)/PC to 4x Duplex LC Breakout; 850nm or 1300nm VCSEL; Modal Bandwidth: 2000MHz/km at 850nm; Cable OD: 3.0mm (MTP), 2.0mm (LC); Insertion Loss: 0.5dB (MTP), 0.2dB (LC)
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview
This MPO/MTP to 4x LC breakout cable lets you fan out a single 40Gbps connection from a 40GBase-SR4 QSFP+ transceiver to four 10Gbps LC SFP+ transceivers.

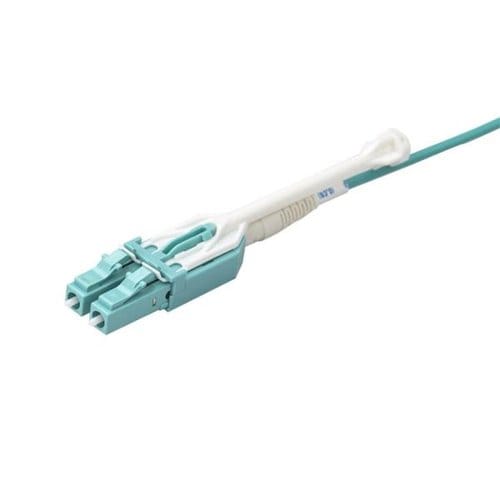

The push-and-pull tabs optimize accessibility and let you install or remove the connectors with one hand, without having to use additional tools. Plus, the slim uniboot design of the LC connectors saves space and improves cable management.
The MPO cable is housed in a plenum-rated jacket and is ideal for installations where CMP fire rating is required.
Each OM3 fiber cable has been individually tested for insertion loss and return loss. The full test report is included in each cable bag.
The MPO8LCPL3M from StarTech.com is backed by a lifetime warranty.
Tech Specs
| Features | Push-Pull Tab |
|---|---|
| Brand Name | StarTech.com |
| Cable Type | Fiber Optic |
| Jacket Type | CMP |
| Cable Length | 9.84 ft |
| Color Family | Green |
| Manufacturer | StarTech.com |
| Product Name | Fiber Optic Patch Duplex Network Cable |
| Product Type | Network Cable |
| Product Color | Aqua |
| Shipping Width | 8.66" |
| Shipping Height | 0.39" |
Show all 31 specsShow fewer
| Device Supported | Media Converter |
|---|---|
| Fiber Optic Mode | Multi-mode |
| Country of Origin | China |
| Packaged Quantity | 1 Each |
| Data Transfer Rate | 40 Gbit/s |
| Cable Characteristic | Patch Cable |
| Weight (Approximate) | 0.12 lb |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmentally Friendly | Yes |
| Manufacturer Part Number | MPO8LCPL3M |
| Connector Type on First End | MTP/MPO Network - Female |
| Connector Type on Second End | LC Network - Male |
| Manufacturer Website Address | http://www.startech.com |
| Connector Gender on First End | Female |
| Shipping Weight (Approximate) | 2.24 oz |
| Connector Gender on Second End | Male |
| Connector on First End Details | 1 x MTP/MPO Network - Female |
| Connector on Second End Details | 8 x LC Network - Male |
| Fiber Optic Cable Core/Cladding Specification | 50/125 µm |
