STARTECH.COM

3M MTP FIBER OPTIC CABLE OM3 PLENUM MPO/MTP 40G FIBER CABLE

SKU: 5BM957VPN: MPO12PL3M

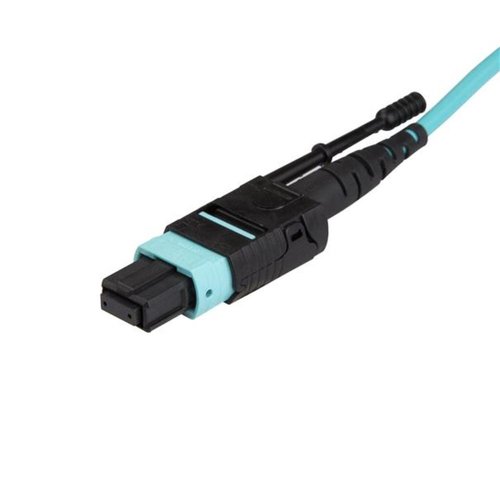

3M MTP FIBER OPTIC CABLE OM3 PLENUM MPO/MTP 40G FIBER CABLE

Key Features

  • OM3 FIBER CABLE: MTP/MPO Plenum-Rated OM3 Multimode Fiber Cable delivers up to 40 Gbps; This 12-fiber cable supports different networking devices at varying speeds; Ideal for high density connections to servers, switches, and Storage Area Networks (SANs)
  • QUALITY CONSTRUCTION: OFNP jacket emits low-smoke and fumes if combusted; 50/125"m fiber core/cladding is immune to EMI; MTP Push-Pull Tabs with Flexible Extensions facilitates convenient installation and removal
  • RATINGS AND RELIABILITY: Individually tested for signal integrity; Test report included with each cable; Rated for plenum and in-wall installations; 12-fiber MTP/MPO connectors with PC polished ends keeps insertion loss below 0.5dB
  • COMPATIBILITY: OM3 Multimode cable with MTP connectors supports 40 Gbps for high-density network applications such as SANs, data servers, and QSFP+ transceivers
  • SPECS: 3m (9.8ft); Color: Aqua (OM3); 40 Gbps; MTP(F)/PC to MTP(F)/PC; 12-Fiber Type-A Straight Pinout; 850nm or 1300nm VCSEL; Modal Bandwidth: 2000MHz/km at 850nm; Cable OD: 3.0mm; Insertion Loss: 0.5dB, Return Loss: 20dB; Backed for Life
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

This MPO/MTP fiber optic cable houses 12 fibers and lets you interface between different networking devices of varying speeds. For example, you can set up a one-to-one connection between two 40Gbps switches or servers. Alternatively, you can connect a 40Gbps switch and break out the 40Gbps into six duplex 10Gbps LC connections on a patch panel or network cassette, which then fans out to individual 10Gbps devices. The MTP connector provides twelve times the density of an SC connector and saves circuit card and rack space. Plus, the push-and-pull tabs optimize accessibility by letting you install or remove the connectors with one hand without needing additional tools. The MTP to MTP cable is housed in a plenum-rated jacket and is ideal for installations where CMP fire rating is required. Each OM3 fiber cable has been individually tested for insertion loss and return loss. The full test report is included in each cable bag. The MPO12PL3M from StarTech.com is backed by a lifetime warranty.

Tech Specs

3M MTP FIBER OPTIC CABLE OM3 PLENUM MPO/MTP 40G FIBER CABLE specifications
Brand NameStarTech.com
Cable TypeFiber Optic
Jacket TypeOFNP
Cable Length9.84 ft
Color FamilyGreen
ManufacturerStarTech.com
Product NameFiber Optic Network Cable
Product TypeNetwork Cable
Product ColorAqua
Shipping Width7.87"
Shipping Height0.51"
Device SupportedPatch Panel
Show all 29 specs
Fiber Optic ModeMulti-mode
Country of OriginChina
Packaged Quantity1 Each
Data Transfer Rate40 Gbit/s
Weight (Approximate)0.06 lb
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Environmentally FriendlyYes
Manufacturer Part NumberMPO12PL3M
Connector Type on First EndMTP/MPO Network - Female
Connector Type on Second EndMTP/MPO Network - Female
Manufacturer Website Addresshttp://www.startech.com
Connector Gender on First EndFemale
Shipping Weight (Approximate)1.60 oz
Connector Gender on Second EndFemale
Connector on First End Details1 x MTP/MPO Network - Female
Connector on Second End Details1 x MTP/MPO Network - Female
Fiber Optic Cable Core/Cladding Specification50/125 µm
