EATON TRIPP LITE SERIES CONNECTIVIT

3M DUPLEX MMF CABLE LC/SC 50/125 FIBER OPTIC/ FIBRE CHANNEL

SKU: 371623VPN: N516-03M

3M DUPLEX MMF CABLE LC/SC 50/125 FIBER OPTIC/ FIBRE CHANNEL

Key Features

  • Premium PVC 50/125 multimode patch cables
  • Attenuation loss meets or exceeds the latest industry standards
  • Higher bandwidth, optimized for gigabit and 10Gbps networks
  • Backward compatible with 62.5 micron fiber
  • Built-in headroom for future applications
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

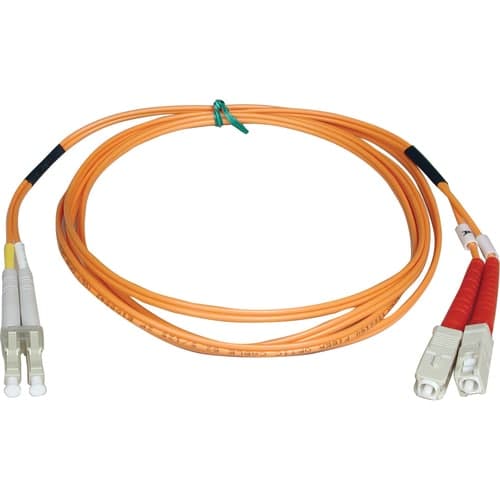

Tripp Lite's 3-meter multimode duplex Fibre Channel SC/LC patch cable is manufactured from 50/125 zipcord fiber. The cable has SC connectors on one end, and LC at the other, a PVC jacket, and is FDDI and OFNR rated. 50/125 Duplex multimode fiber is most commonly used in Fibre Channel applications. It is backward compatible with 62.5 micron fiber and built-in headroom for future applications. The cable provides higher bandwidth optimized for Gigabit and 10Gbps networks as well. Also available in 1, 2, 5, 10, 15, 20, 30, and 50 meter lengths. Search "N516-" to bring up all lengths. Also search "N506-" for SC-SC cables, and "N520-" for LC-LC cables. Tripp Lite warrants this product to be free from defects in materials and workmanship for life.

Tech Specs

3M DUPLEX MMF CABLE LC/SC 50/125 FIBER OPTIC/ FIBRE CHANNEL specifications
Brand NameTripp Lite series
Cable TypeFiber Optic
Cable Length10 ft
Color FamilyOrange
ManufacturerEaton Corporation
Product NameDuplex Fibre Channel Patch Cable
Product TypeNetwork Cable
Compatibility<ul><li>Network Interface Card Fiber optic card requiring multimode duplex cable with LC/SC connectors</li></ul>
Product ColorOrange
Product ModelN516-03M
Shipping Width6.20"
Jacket MaterialPolyvinyl Chloride (PVC)
Show all 26 specs
Shipping Height0.25"
Package Contents<ul><li>Duplex Fibre Channel Patch Cable</li><li>3M Duplex MMF Cable LC/SC 50/125 Fiber</li></ul>
Country of OriginChina
Cable CharacteristicPatch Cable
Additional Information<ul><li>Number of fibers: 2</li><li>Primary coating diameter: 245+/-15 microns</li><li>Primary coating material: Acrylate</li><li>Secondary coating diameter: 900+/-50 microns</li><li>Numeric apeture: .275 nominal</li><li>Proof test level: 100,000 PSI</li><li>Insertion loss testing performed on every connector (0.2db typical) and provided with cable</li><li>Beveled edge on ends of glass makes insertion of plug a breeze</li><li>Color coded/labeled connectors</li></ul><p><b>Applications:</b></p><ul><li>Gigabit</li><li>10Gbps networks</li><li>Fiber and fibre channel installations</li></ul>
Manufacturer Part NumberN516-03M
Certifications & Standards<ul><li>FDDI</li><li>OFNR</li></ul>
Connector Type on First EndLC - Male
Connector Type on Second EndSC Network - Male
Manufacturer Website Addresshttp://www.eaton.com
Shipping Weight (Approximate)1.60 oz
Connector on First End Details2 x LC - Male
Connector on Second End Details2 x SC Network - Male
Fiber Optic Cable Core/Cladding Specification50/125 µm
